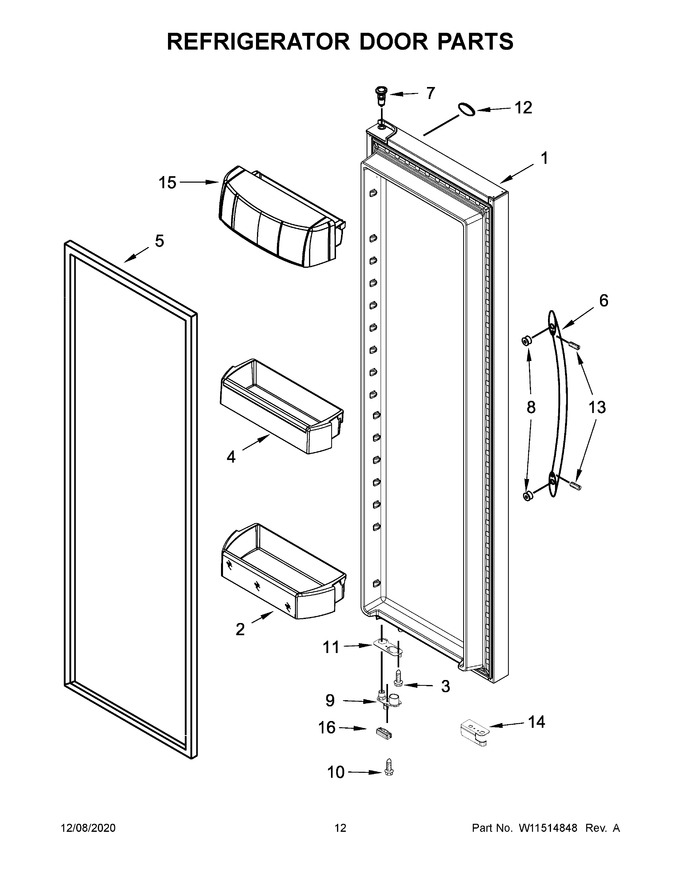

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W11414239 | Door, Refrigerator (includes Item 5) (stainless) (Replaces: W11394743) |
|
- | |||||
| 2 | WPW10527272 | Door Bin, Gallon (Replaces: W10527272) |
|
$ 75.42 | |||||
| 3 | WPW10296816 | Screw (Replaces: W10296816) |
|
$ 7.25 | |||||
| 4 | WPW10308388 | Door Bin, Shallow (Replaces: W10308388) |
|
$ 70.17 | |||||
| 5 | W10355582 | Gasket, Door (grey) (Replaces: W10249916) |
|
$ 307.13 | |||||
| 6 | W11542651 | Handle (stainless) (Replaces: W11289640) |
|
Immediately | $ 137.13 | ||||
| 7 | WP2182181 | Thimble, Top (Replaces: 2200086) |
|
$ 7.34 | |||||
| 8 | WPW10661886 | Screw (Replaces: W10460893) |
|
Immediately | $ 11.59 | ||||
| 9 | WPW10257203 | Closer, Upper Cam Door (grey) (Replaces: W10257203) |
|
$ 11.66 | |||||
| 10 | WPW10296804 | Screw (Replaces: W10296804) |
|
$ 10.25 | |||||
| 11 | W11037957 | Bracket, Door Stop (Replaces: W10888898) |
|
$ 72.22 | |||||
| 12 | W11223753 | Badge (Replaces: W10884773) |
|
Immediately | $ 78.53 | ||||
| 13 | W11366418 | Set Screw (silver) (Replaces: W10010140) |
|
Immediately | $ 16.59 | ||||
| 14 | W11661847 | Cover, Door Stop (grey) (Replaces: W10789147) |
|
Immediately | $ 28.54 | ||||
| 15 | WPW10324760 | Assembly, Utility Compartment (Replaces: W10324760) |
|
$ 77.04 | |||||
| 16 | W11573367 | Bumper, Door (grey) (Replaces: W10407188) |
|
Immediately | $ 21.02 |
