SELECT A DIAGRAM

01 - Cover Sheet

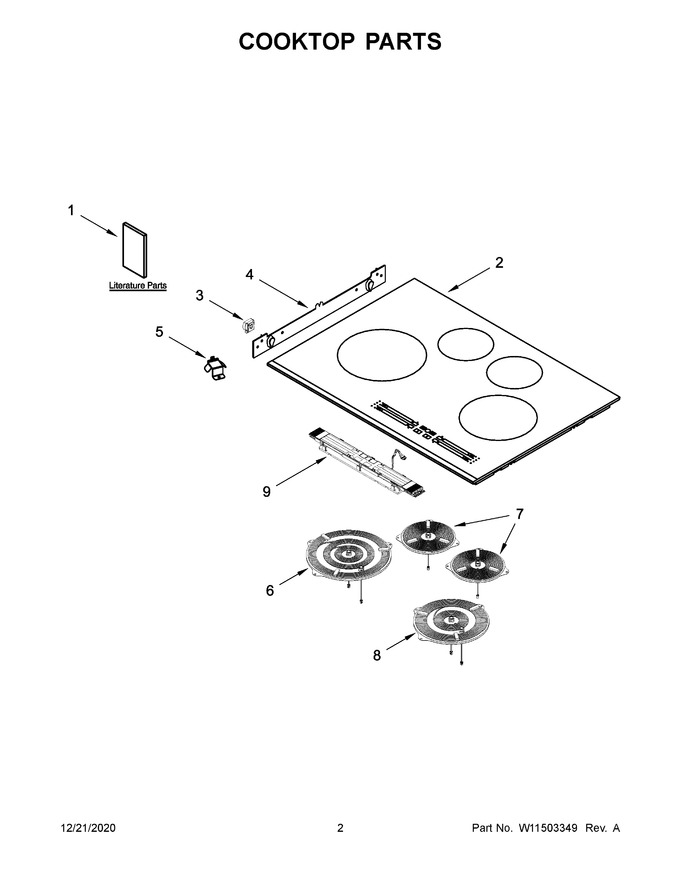

02 - Cooktop Parts


03 - Interior Parts


04 - Optional Parts (not Included)


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W11362912		Installation Instructions		Appelez-nous	-
2	W11495631		Cooktop, Glass (includes Stainless Trim)   (Replaces: W11266244)				$ 618.40
3	W11495019		Spring, Cooktop   (Replaces: W11279477)			Immediately	$ 36.23
4	W11495626		Bracket, Cooktop Support   (Replaces: W11279478)			Immediately	$ 77.03
5	W11302457		Filter Support		Appelez-nous	-
6	W11495630		Element (10 Inch) (left Front)   (Replaces: W11209667)				$ 330.14
7	W11495033		Element (6 Inch) (left Front)   (Replaces: W11209662)			Immediately	$ 226.95
8	W11495324		Element (8 Inch) (left Rear)   (Replaces: W11209665)				$ 266.38
9	W11495327		Hmi Board   (Replaces: W11325432)			Immediately	$ 346.25
1A	W11245478		Instructions, Undercounter Installation		Appelez-nous	-
1B	W11362923		Owner's Manual		Appelez-nous	-
1C	W11362962		Tech Sheet		Appelez-nous	-
1D	W11362960		Wiring Diagram		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
