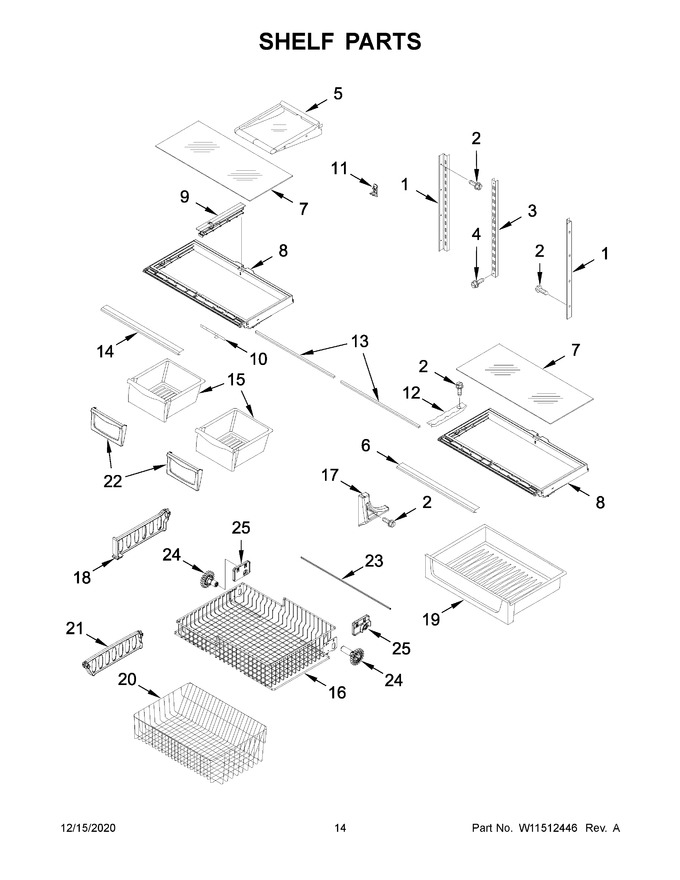

SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W10251970 | Ladder, Side |
|
$ 26.90 | |||||
| 2 | 67006425 | Screw (Replaces: 12990513) |
|
Immediately | $ 6.57 | ||||
| 3 | W10273463 | Ladder, Center |
|
$ 26.65 | |||||
| 4 | W10215666 | Screw |
|
$ 8.58 | |||||
| 5 | W11402522 | Shelf, Stationary (Replaces: W11358358) |
|
$ 195.17 | |||||
| 6 | W10656984 | Trim, Pantry Front |
|
$ 76.23 | |||||
| 7 | WP67006877 | Glass, Crisper Cover (Replaces: 12204823N) |
|
Immediately | $ 198.43 | ||||
| 8 | WPW10671240 | Frame, Crisper (Replaces: W10671240) |
|
Immediately | $ 151.88 | ||||
| 9 | WPW10671238 | Rail, Center Crisper (Replaces: W10671238) |
|
Immediately | $ 106.61 | ||||
| 10 | WP67005864 | Slide, Humidity Control (Replaces: 12530805SP) |
|
Immediately | $ 7.38 | ||||
| 11 | WP67001716 | Hook, Ladder (Replaces: 12531802) |
|
Immediately | $ 10.03 | ||||
| 12 | WP67001719 | Track, Deli Drawer (Replaces: 12531901) |
|
Immediately | $ 8.09 | ||||
| 13 | WP12227302WD | Brace, Crisper Cover (Replaces: 12227302WD) |
|
$ 100.44 | |||||
| 14 | WPW10231481 | Trim, Crisper (Replaces: W10231481) |
|
$ 105.68 | |||||
| 15 | W10833530 | Pan, Crisper (Replaces: 12724121) |
|
$ 142.75 | |||||
| 16 | W11281077 | Basket, Freezer (upper) (Replaces: W11115255) |
|
$ 175.73 | |||||
| 17 | WP67001721 | Support, Crisper (left Hand) (Replaces: 12531001) |
|
Immediately | $ 7.83 | ||||
| 18 | W10241046 | Divider, Basket (upper) |
|
Immediately | $ 26.27 | ||||
| 19 | W10328331 | Drawer, Pantry |
|
Immediately | $ 142.82 | ||||
| 20 | W11281080 | Basket, Freezer (lower) (Replaces: W11115779) |
|
$ 180.00 | |||||
| 21 | W10847995 | Divider, Basket (lower) (Replaces: W10146440) |
|
$ 83.23 | |||||
| 22 | W10833529 | Front, Crisper (Replaces: 12643602) |
|
$ 68.18 | |||||
| 23 | W10802340 | Shaft, Rack |
|
- | |||||
| 24 | WPW10474716 | Gear (left Hand) (Replaces: W10474716) |
|
Immediately | $ 29.18 | ||||
| 25 | W10348259 | Mount, Gear (left Hand) |
|
$ 80.88 | |||||
| 17A | WP67001722 | Support, Crisper (right Hand) (Replaces: 12531002) |
|
Immediately | $ 8.04 | ||||
| 24A | WPW10474715 | Gear (right Hand) (Replaces: W10474715) |
|
Immediately | $ 29.48 | ||||
| 25A | W10348260 | Mount, Gear (right Hand) |
|
$ 80.91 |
