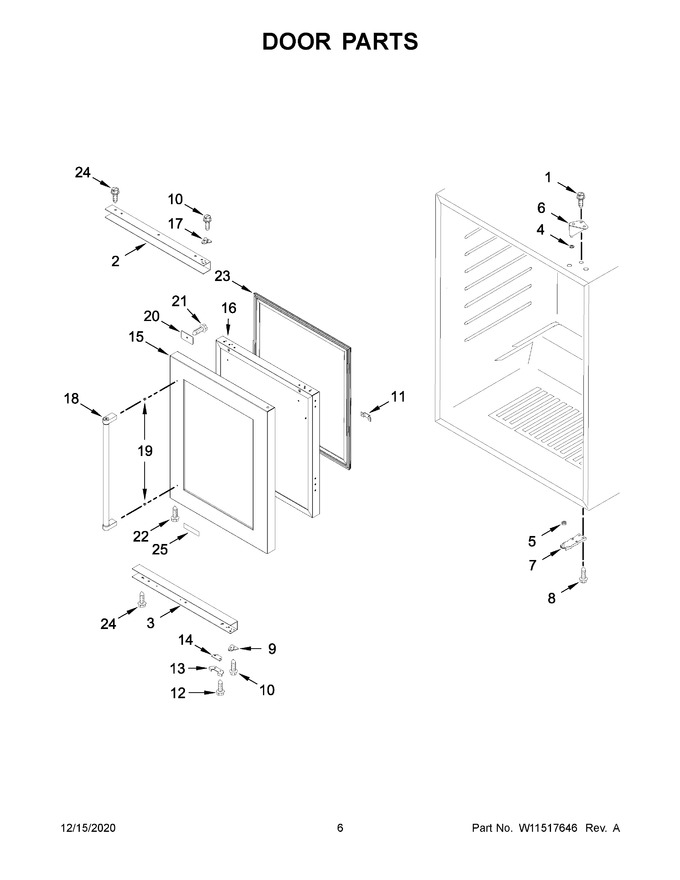

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	4344796		Screw				$ 15.14
2	W10797365		Top Hinge Plate (right Hinge)   (Replaces: W11517021)		Appelez-nous	-
3	W10797371		Bottom Hinge Plate (right Hinge)   (Replaces: W11517023)		Appelez-nous	-
4	4344760		Washer				$ 14.32
5	W11241702		Washer   (Replaces: W10162992)				$ 12.84
6	4344754		Hinge, Top				$ 80.11
7	W10239363		Bottom Hinge (right Hinge)				$ 72.55
8	W10780355		Bolt				$ 45.17
9	4344756		Spacer, Bottom Hinge				$ 18.63
10	W10243123		Screw   (Replaces: W10797377)				$ 15.14
11	W10622808		Switch Plate				$ 24.54
12	4344801		Screw				$ 15.14
13	4344758		Stop, Door   (Replaces: W10238067)		Appelez-nous	-
14	4344788		Spacer, Door				$ 154.23
15	W11164089		Stainless Wrap (right Hinge)   (Replaces: W10797359)				$ 394.80
16	W11431159		Glass Door Process Assembly   (Replaces: W10797361)				$ 783.02
17	4344755		Spacer, Top Hinge				$ 18.03
18	W11497229		Handle   (Replaces: W10797382)			Immediately	$ 167.56
19	W11179356		Stud, Mounting   (Replaces: W10772902)				$ 14.96
20	W11263339		Plate, Door Handle   (Replaces: W10622815)				$ 15.65
21	W10859467		Screw, Handle   (Replaces: W10204866)				$ 72.21
22	4344827		Screw		Appelez-nous	-
23	W11625076		Gasket   (Replaces: W10797384)				$ 98.29
24	W10319185		Screw		Appelez-nous	-
25	W11179312		Nameplate   (Replaces: W10772910)				$ 84.14
15A	W10797360		Stainless Wrap (left Hinge)				$ 691.45
2A	W10797369		Top Hinge Plate (left Hinge)		Appelez-nous	-
3A	W10797375		Bottom Hinge Plate (left Hinge)		Appelez-nous	-
7A	4344787		Bottom Hinge (left Hinge)				$ 195.62

    View Diagram in Separate Window       Print Part List
