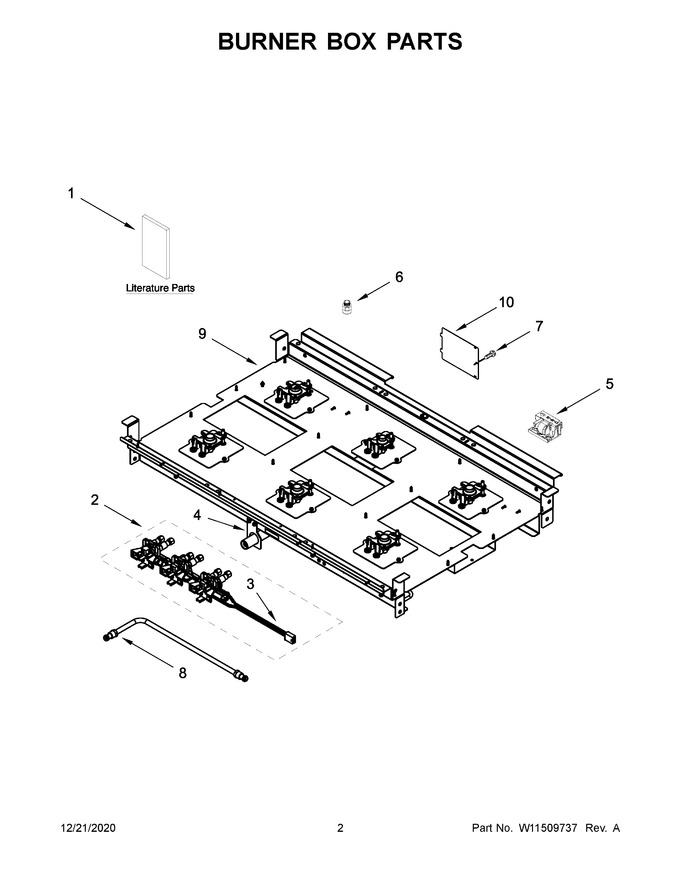

JDRP436HL01 | The Brick : Appliance Model Lookup

Diagram #	Part Number	Description	Availability	Ships	Price
1	W11114330	Guide, Use And Care	Appelez-nous	-
2	W11334707	Assembly, Valve Manifold (left Front, Left Rear, Center Rear) (Replaces: W10893052)		Immediately	$ 456.64
3	W11328263	Switch, Harness (Replaces: W11106302)			$ 308.60
4	W11320153	Bracket, Manifold (Replaces: W11121194)			$ 71.97
5	W11818690	Module, Spark (Replaces: W11121317)		Immediately	$ 73.44
6	4453116	Adapter, Male			$ 161.49
7	7101P42660	Screw	Appelez-nous	-
8	W11333177	Tube, Manifold Supply (left) (Replaces: W10892370)	Appelez-nous	-
9	NP	Diverter Valve Motor (not Serviced)	Appelez-nous	-
10	W10115843	Cover, Ignition	Appelez-nous	-
1A	W11177312	Guide, Quick Start	Appelez-nous	-
1B	W11114333	Instructions, Installation	Appelez-nous	-
1C	W11184746	Guide, Internet Connectivity	Appelez-nous	-
1D	W11266585	Diagram, Wiring (cooktop)	Appelez-nous	-
1E	W11202363	Diagram, Wiring (oven)	Appelez-nous	-
1F	W11202265	Sheet, Tech	Appelez-nous	-
2A	W11334710	Assembly, Valve Manifold (center Front, Right Front, Right Rear) (Replaces: W10893059)			$ 489.29
8A	W11334162	Tube, Manifold Supply (right) (Replaces: W10892417)	Appelez-nous	-
NI	W11317791	Harness, Wifi (Replaces: W11242785)			$ 102.35
NI	W11321066	Cord, Power (Replaces: W11212216)			$ 107.05
NI	W10780278	Harness, Door Lock		Immediately	$ 86.28
NI	WP9759877	Retainer, Strain Relief (Replaces: 9759877)			$ 18.19
NI	W11544575	Bracket, Anti-tip (Replaces: W10253333)			$ 53.89
NI	4450800	Screw, Grounding			$ 12.12
NI	W11200325	Harness, Communication			$ 104.57
NI	W11428599	Kit, Lp Conversion (Replaces: W11238041)		Immediately	$ 43.06
NI	W11200332	Harness, Cooktop			$ 176.09
NI	7101P48560	Screw, Anti-tip Kit	Appelez-nous	-
NI	NP	Diverter Valve Motor (not Serviced)	Appelez-nous	-
NI	W11200320	Harness, Main (36")			$ 218.45
