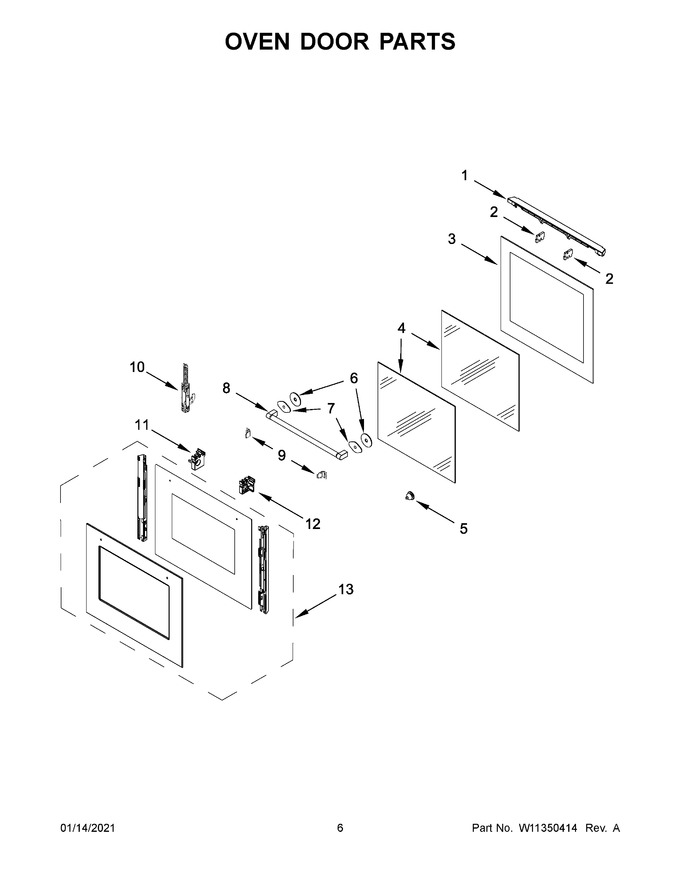

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W10518369 | Vent, Door Trim Top |
|
Immediately | $ 113.08 | ||||
| 2 | W10518307 | Spacer, Door Trim Top |
|
$ 19.77 | |||||
| 3 | W11348805 | Glass, Door Inner Assembly (Replaces: 480121101609) |
|
$ 163.32 | |||||
| 4 | W11778507 | Glass, Door Inner (Replaces: W10518376) |
|
$ 158.33 | |||||
| 5 | W10519004 | Spacer, Oven Door Glass |
|
$ 21.03 | |||||
| 6 | W11236907 | Spacer, Door Handle (Replaces: W10410709) |
|
$ 16.42 | |||||
| 7 | W10260705 | Spacer, Rubber |
|
- | |||||
| 8 | W11353331 | Handle, Door |
|
- | |||||
| 9 | 481010387617 | Support, Oven Door Glass |
|
$ 104.05 | |||||
| 10 | W11347846 | Hinge, Door |
|
Immediately | $ 267.98 | ||||
| 11 | W11509863 | Support, Oven Glass |
|
$ 126.37 | |||||
| 12 | W10518384 | Support, Oven Door Glass |
|
$ 109.26 | |||||
| 13 | W11348803 | Door, Oven Outer Assembly (Replaces: W11347851) |
|
$ 393.50 |
