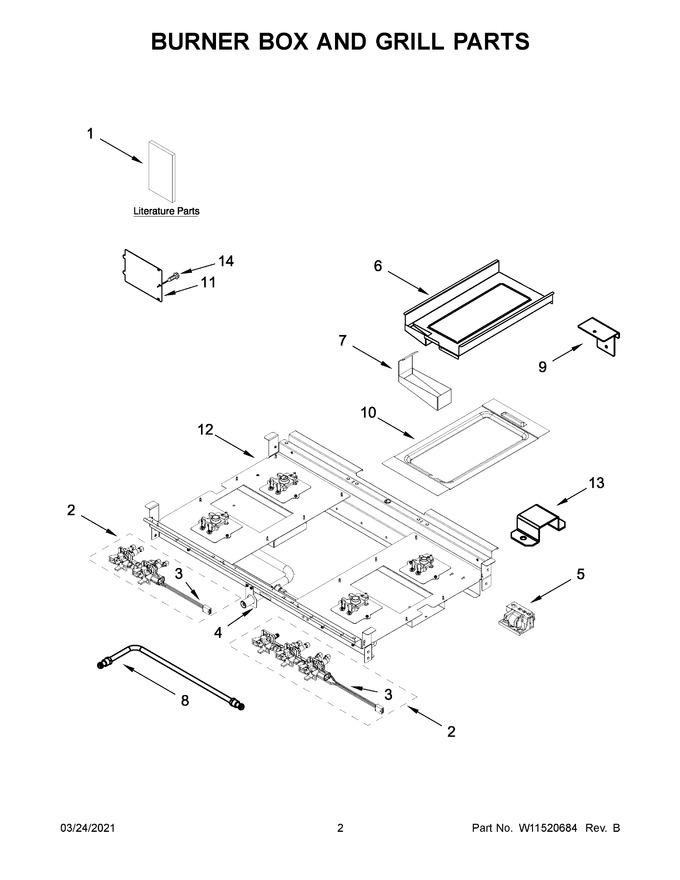

SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W11177275 | Guide, Use And Care |
|
- | |||||
| 2 | W11333175 | Assembly, Valve Manifold (left Front And Left Rear) (Replaces: W10893053) |
|
Immediately | $ 425.06 | ||||
| 3 | W11320016 | Switch, Harness (Replaces: W11106300) |
|
Immediately | $ 243.74 | ||||
| 4 | W11320153 | Bracket, Manifold (Replaces: W11121194) |
|
$ 71.97 | |||||
| 5 | W11818690 | Module, Spark (Replaces: W11121317) |
|
Immediately | $ 73.44 | ||||
| 6 | W11328011 | Capture, Grill Grease (Replaces: W11120957) |
|
- | |||||
| 7 | W11328012 | Tray, Grill Drip (Replaces: W11174414) |
|
- | |||||
| 8 | W11333177 | Tube, Manifold Supply (left) (Replaces: W10892370) |
|
- | |||||
| 9 | W11285353 | Bracket, Grill Grease Capture |
|
- | |||||
| 10 | W11328372 | Deflector, Grill Heat (Replaces: W11120965) |
|
- | |||||
| 11 | W10115843 | Cover, Ignition |
|
- | |||||
| 12 | NP | Following Parts Not Illustrated |
|
- | |||||
| 13 | W11174418 | Bracket, Grill Orifice Holder |
|
- | |||||
| 14 | 7101P42660 | Screw |
|
- | |||||
| 1A | W11177278 | Instructions, Installation |
|
- | |||||
| 1B | W11184746 | Guide, Internet Connectivity |
|
- | |||||
| 1C | W11202371 | Diagram, Wiring (oven) |
|
- | |||||
| 1D | W11202275 | Sheet, Tech |
|
- | |||||
| 1E | W11177312 | Guide, Quick Start |
|
- | |||||
| 2A | W11334161 | Assembly, Valve Manifold (grill, Right Front, Right Rear) (Replaces: W10893077) |
|
$ 422.87 | |||||
| 3A | W11328263 | Switch, Harness (Replaces: W11106302) |
|
$ 308.60 | |||||
| 8A | W11334162 | Tube, Manifold Supply (right) (Replaces: W10892417) |
|
- | |||||
| NI | W11200325 | Harness, Communication |
|
$ 104.57 | |||||
| NI | W11317791 | Harness, Wifi (Replaces: W11242785) |
|
$ 102.35 | |||||
| NI | W11428599 | Kit, Lp Conversion (Replaces: W11238041) |
|
Immediately | $ 43.06 | ||||
| NI | W11212328 | Harness, Cooktop |
|
- | |||||
| NI | W11446236 | Ignitor Wire, Wire-electrode Bake (Replaces: W11311196) |
|
$ 19.04 | |||||
| NI | W10624584 | Cord, Power |
|
$ 170.61 | |||||
| NI | W10780278 | Harness, Door Lock |
|
Immediately | $ 86.28 | ||||
| NI | W11544575 | Bracket, Anti-tip (Replaces: W10253333) |
|
$ 53.89 | |||||
| NI | 4450800 | Screw, Grounding |
|
$ 12.12 | |||||
| NI | W11446239 | Ignitor Wire, Wire-electrode Broil (Replaces: W11311197) |
|
$ 21.57 | |||||
| NI | W11200310 | Harness, Main (36") |
|
$ 213.21 | |||||
| NI | 7101P48560 | Screw, Anti-tip Kit |
|
- | |||||
| NI | NP | Following Parts Not Illustrated |
|
- |
