01 - Cover Sheet
02 - Control Panel Parts
03 - Microwave Door Parts

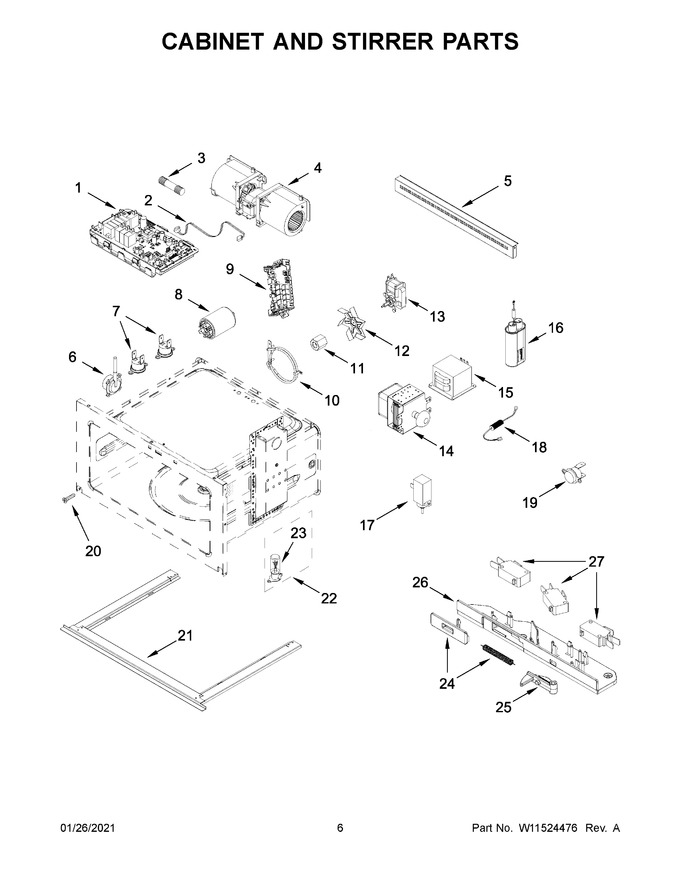

04 - Cabinet And Stirrer Parts
05 - Internal Microwave Parts
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W11784240 | Manager, Appliance (Replaces: W11510569) |
|
$ 492.69 | |||||
| 2 | W10904797 | Harness, Control |
|
$ 37.20 | |||||
| 3 | W11512077 | Fuse (Replaces: W11510694) |
|
$ 29.23 | |||||
| 4 | W11512060 | Motor, Fan (Replaces: W11190310) |
|
$ 233.97 | |||||
| 5 | W11512005 | Trim, Front (Replaces: W11180369) |
|
- | |||||
| 6 | W10460457 | Sensor, Humidity |
|
Immediately | $ 119.39 | ||||
| 7 | W11512070 | Thermostat (Replaces: W10666297) |
|
$ 129.46 | |||||
| 8 | W10549523 | Filter, Noise (Replaces: W11510580) |
|
Immediately | $ 140.04 | ||||
| 9 | W11790978 | Board, Relay (Replaces: W11311677) |
|
$ 289.66 | |||||
| 10 | W11304778 | Element, Convection |
|
- | |||||
| 11 | W11237447 | Nut, Convection Fan (Replaces: W11101380) |
|
$ 13.25 | |||||
| 12 | W11512064 | Blade, Fan (Replaces: W11453899) |
|
Immediately | $ 154.22 | ||||
| 13 | W11512467 | Motor, Convection Fan (Replaces: W11510587) |
|
- | |||||
| 14 | W11512457 | Magnetron (Replaces: W10567314) |
|
Immediately | $ 335.81 | ||||
| 15 | W11512463 | Transformer, High Voltage (Replaces: W11190333) |
|
$ 335.89 | |||||
| 16 | W10561770 | Capacitor, High Voltage |
|
$ 68.39 | |||||
| 17 | W11512078 | Thermoactuator (Replaces: W11510700) |
|
$ 63.73 | |||||
| 18 | WPW10687786 | Diode, High Voltage (Replaces: W11510577) |
|
Immediately | $ 28.67 | ||||
| 19 | W11512073 | Thermostat (Replaces: W11510588) |
|
- | |||||
| 20 | W11512483 | Kit, Mounting (Replaces: W11511182) |
|
- | |||||
| 21 | W11511999 | Trim, Bottom (Replaces: W10807426) |
|
- | |||||
| 22 | W11512479 | Assembly, Halogen Lamp (Replaces: W11243744) |
|
- | |||||
| 23 | W11243743 | Bulb, Halogen |
|
$ 20.97 | |||||
| 24 | W11512018 | Switch, Door Lock (Replaces: W11365766) |
|
$ 53.80 | |||||
| 25 | W11512034 | Lever, Door Lock (Replaces: W10506969) |
|
$ 59.18 | |||||
| 26 | W11832471 | Housing, Door Lock (Replaces: W11510575) |
|
Immediately | $ 121.13 | ||||
| 27 | W11512093 | Microswitch (Replaces: W11511177) |
|
Immediately | $ 60.47 | ||||
| NI | NP | Pedestal (refer To Color Variation Parts Page) |
|
- | |||||
| NI | W11374774 | Cord, Power |
|
Immediately | $ 185.77 | ||||
| NI | W11510566 | Harness, Main |
|
$ 306.61 | |||||
| NI | W11300447 | Trim Kit, Rise |
|
$ 1,000.19 |
