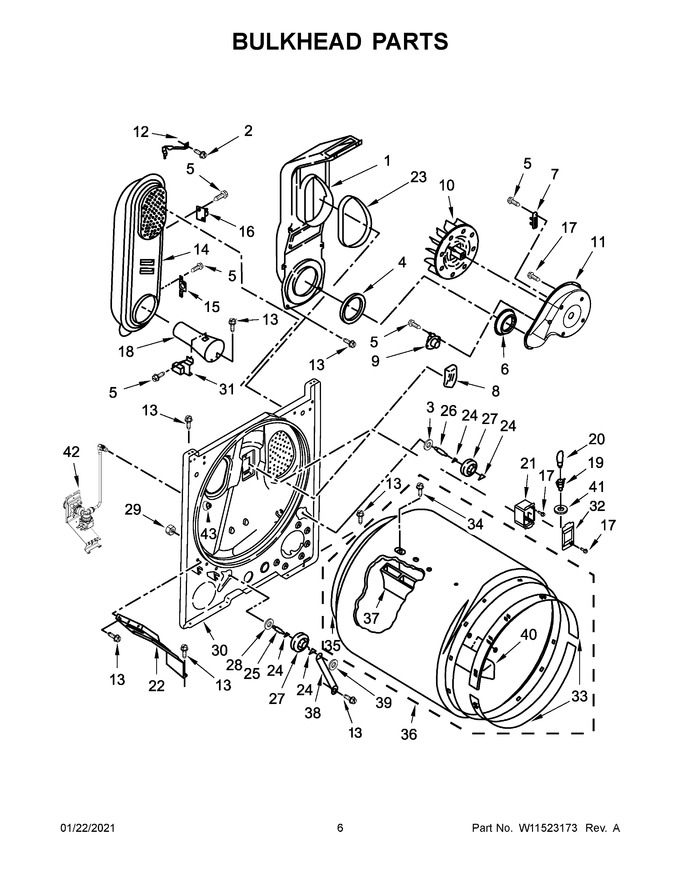

04 - Bulkhead Parts
05 - Burner Assembly Parts
06 - Optional Parts (not Included)
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W11117429 | Assembly, Lint Chute (Replaces: W10798023) |
|
$ 165.38 | |||||
| 2 | WP489463 | Screw (Replaces: 489463) |
|
$ 7.43 | |||||
| 3 | WP3388703 | Washer (Replaces: 3388703) |
|
$ 7.07 | |||||
| 4 | W11415783 | Seal, Lint Chute (Replaces: 347139) |
|
Immediately | $ 17.23 | ||||
| 5 | WP90767 | Screw (Replaces: 90767) |
|
Immediately | $ 7.43 | ||||
| 6 | W11233063 | Shield, Exhaust (Replaces: W10389567) |
|
$ 21.06 | |||||
| 7 | WP3392519 | Fuse, Thermal (91c) (Replaces: 3392519) |
|
Immediately | $ 22.46 | ||||
| 8 | W10853313 | Pad, Sensor (Replaces: W10681051) |
|
Immediately | $ 86.59 | ||||
| 9 | WP8318268 | Thermostat (Replaces: 8318268) |
|
Immediately | $ 78.84 | ||||
| 10 | WP694089 | Wheel, Blower (Replaces: 694089) |
|
Immediately | $ 33.89 | ||||
| 11 | WP8577230 | Housing, Blower (Replaces: 8577230) |
|
$ 168.17 | |||||
| 12 | 279771 | Clip, Heater Box (Replaces: 3398161) |
|
$ 13.55 | |||||
| 13 | WP3390631 | Screw (Replaces: 3390631) |
|
$ 7.43 | |||||
| 14 | 279980 | Box, Heater (96c) (Replaces: 8530285) |
|
$ 298.16 | |||||
| 15 | W11050897 | Thermostat, High Limit Spst (180f) (Replaces: W10754607) |
|
Immediately | $ 13.77 | ||||
| 16 | W11050897 | Kit, Thermal Cut-off (includes Thermostat) |
|
Immediately | $ 13.77 | ||||
| 17 | WP488729 | Screw (Replaces: 3390647) |
|
Immediately | $ 7.45 | ||||
| 18 | WP8066049 | Funnel, Burner (Replaces: 8066049) |
|
$ 140.85 | |||||
| 19 | W11222979 | Socket, Light (Replaces: W10214261) |
|
Immediately | $ 106.91 | ||||
| 20 | WP22002263 | Bulb, Light (Replaces: 3406124) |
|
Immediately | $ 13.37 | ||||
| 21 | 8578825 | Bracket, Drum Light |
|
$ 19.73 | |||||
| 22 | W11398682 | Bracket, Bulkhead Chute (Replaces: 3406022) |
|
$ 52.99 | |||||
| 23 | WP339956 | Seal (Replaces: 339956) |
|
Immediately | $ 8.15 | ||||
| 24 | WPW10512946 | Washer, Tri Ring (Replaces: W10512946) |
|
Immediately | $ 8.71 | ||||
| 25 | WPW10359270 | Shaft, Drum Roller - Left Hand Thread (Replaces: W10359270) |
|
Immediately | $ 65.44 | ||||
| 26 | WPW10359269 | Shaft, Drum Roller - Right Hand Thread (Replaces: W10359269) |
|
Immediately | $ 51.09 | ||||
| 27 | WPW10314173 | Roller, Support (Replaces: W10756057) |
|
Immediately | $ 25.65 | ||||
| 28 | WP348197 | Washer (Replaces: 348197) |
|
$ 6.80 | |||||
| 29 | W11229607 | Nut, Hex (Replaces: W10298789) |
|
Immediately | $ 7.78 | ||||
| 30 | W11112242 | Bulkhead (Replaces: W10714471) |
|
$ 328.05 | |||||
| 31 | WP338906 | Sensor, Radiant (Replaces: 338906) |
|
Immediately | $ 46.72 | ||||
| 32 | W11226088 | Lens, Drum Light (Replaces: 3402841) |
|
$ 29.38 | |||||
| 33 | 279441 | Bearing, Ring (Replaces: 692526) |
|
Immediately | $ 66.11 | ||||
| 34 | W10853898 | Screw (Replaces: W10219342) |
|
Immediately | $ 7.36 | ||||
| 35 | W10612022 | Seal, Rear Drum (Replaces: W10856781) |
|
Immediately | $ 56.16 | ||||
| 36 | W10899578 | Assembly, Drum (complete) (Replaces: W10757750) |
|
$ 337.98 | |||||
| 37 | WP692490 | Baffle, Drum (long) (Replaces: 692490) |
|
$ 150.51 | |||||
| 38 | W11684613 | Bracket, Support (Replaces: W11032820) |
|
$ 19.79 | |||||
| 39 | WP90296 | Nut, Push On (Replaces: 90296) |
|
$ 7.42 | |||||
| 40 | WP3403636 | Baffle, Drum (short) (Replaces: 3403636) |
|
$ 131.03 | |||||
| 41 | W10709380 | Seal, Drum Light |
|
- | |||||
| 42 | W11267102 | Valve And Hose Assembly (Replaces: W11135293) |
|
Immediately | $ 202.41 | ||||
| 43 | W11230609 | Nozzle, Cap (Replaces: W11100488) |
|
Immediately | $ 7.42 |
