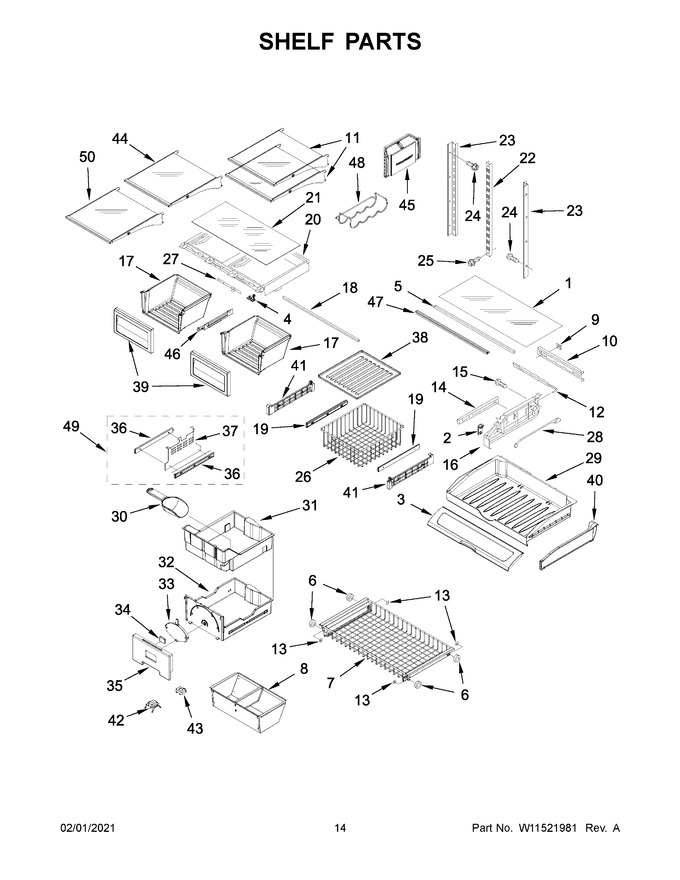

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	WP67002332		Glass, Pantry   (Replaces: 12204815)			Immediately	$ 226.17
2	W11498983		Knob, Temperature Control   (Replaces: 12655204)				$ 27.58
3	WP12656822		Lid, Pantry Drawer   (Replaces: 12656822)			Immediately	$ 95.71
4	W10119222		Knob, Humidity Control				$ 12.68
5	WP12227305WD		Brace, Pantry   (Replaces: 12227305WH)				$ 97.52
6	W11214482		Roller, Basket   (Replaces: 2204542)				$ 90.93
7	WPW10119854		Basket, Middle   (Replaces: W10119854)				$ 262.07
8	W10144706		Assembly, Bin				$ 196.22
9	67002329		Gasket, Pantry   (Replaces: 12656901)				$ 19.88
10	12656202		Housing, Control				$ 133.96
11	W11032133		Assembly, Shelf   (Replaces: W10905889)				$ 232.55
12	WP67003793		Slide, Temperature Control   (Replaces: 12655402)			Immediately	$ 70.64
13	2207415		Nut, Hex				$ 12.64
14	WPW10132653		Glide, Drawer (left Hand)   (Replaces: W10132653)				$ 297.25
15	WP98165		Screw   (Replaces: 12990504)				$ 7.71
16	WPW10122078		Endcap, Pantry (left Hand)   (Replaces: W10122078)			Immediately	$ 56.02
17	W10119219		Pan, Crisper			Immediately	$ 142.06
18	W10490807		Brace, Crisper Frame				$ 91.28
19	WPW10170836		Glide, Upper Basket   (Replaces: W10170836)				$ 282.76
20	WPW10119215		Frame, Crisper   (Replaces: W10119215)			Immediately	$ 271.31
21	WP12204827		Glass, Crisper Cover   (Replaces: 12204827)				$ 241.71
22	W10273463		Ladder, Center				$ 26.65
23	WPW10569182		Ladder, Side   (Replaces: W10569182)				$ 27.59
24	W10215666		Screw				$ 8.58
25	67006425		Screw   (Replaces: 12990513)			Immediately	$ 6.57
26	W10120003		Basket, Upper Freezer				$ 222.62
27	W10119217		Slide, Humidity Control		Appelez-nous	-
28	67003794		Bar, Temperature Control   (Replaces: 12655303)				$ 12.44
29	WP12655703		Drawer, Pantry   (Replaces: 12655703)			Immediately	$ 154.53
30	W10182881		Scoop, Ice Pan				$ 20.12
31	W10120005		Pan, Ice				$ 190.46
32	WPW10120008		Carrier, Ice Pan   (Replaces: W10120008)				$ 130.29
33	W10184030		Lever, Ice Pan				$ 98.25
34	W11175810		Magnet, Latch   (Replaces: W10720771)				$ 91.20
35	WPW10174720		Front, Ice Pan   (Replaces: W10174720)				$ 67.60
36	WPW10170835		Glide, Ice Pan   (Replaces: W10170835)			Immediately	$ 264.29
37	WPW10170987		Support, Freezer Door   (Replaces: W10120014)			Immediately	$ 302.33
38	WPW10451455		Mat, Upper Basket   (Replaces: W10451455)			Immediately	$ 105.53
39	W10212414		Front, Crisper			Immediately	$ 89.91
40	WP67002321		Divider, Pantry   (Replaces: 12709301)				$ 30.41
41	W10163084		Adapter, Basket (left Hand)				$ 17.58
42	W10121004		Housing, Coupler				$ 70.88
43	W10121002		Latch, Coupler				$ 171.14
44	W11032132		Assembly, Shelf   (Replaces: W10878955)				$ 246.63
45	W11462816		Assembly, Produce Preserver   (Replaces: W10826105)			Immediately	$ 15.44
46	2302952		Slide, Crisper (left Hand)			Immediately	$ 286.28
47	W11210956		Support, Glass   (Replaces: W10528935)				$ 32.58
48	W11214481		Rack, Wine   (Replaces: W10742811)				$ 255.67
49	WPW10170987		Assembly, Center Glide   (Replaces: W10170987)			Immediately	$ 302.33
50	W11094557		Assembly, Shelf   (Replaces: W10878945)			Immediately	$ 224.72
14A	W10132652		Glide, Drawer (right Hand)				$ 230.56
16A	WPW10121977		Endcap, Pantry (right Hand)   (Replaces: W10121977)			Immediately	$ 53.88
41A	W10163087		Adapter, Basket (right Hand)				$ 22.87
46A	2302953		Slide, Crisper (right Hand)			Immediately	$ 286.57
