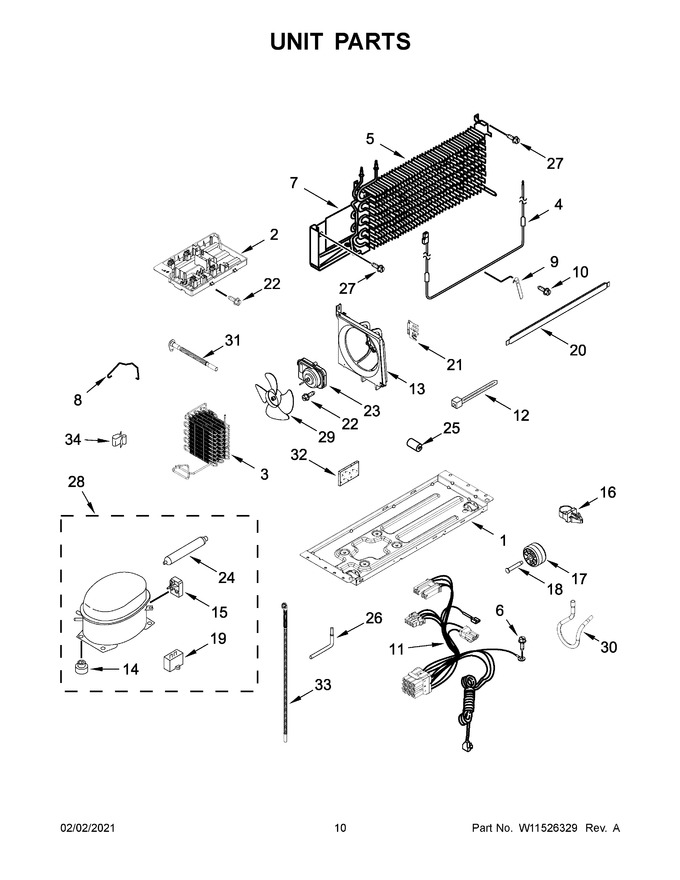

06 - Unit Parts
07 - Optional Parts
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W10624648 | Support Plate, Compressor (Replaces: W10638694) |
|
$ 91.79 | |||||
| 2 | W10633582 | Tray, Evaporator |
|
$ 84.48 | |||||
| 3 | W11803146 | Condenser (Replaces: W11290570) |
|
Immediately | $ 199.41 | ||||
| 4 | WPW10316428 | Heater, Defrost (Replaces: W10316428) |
|
Immediately | $ 232.12 | ||||
| 5 | W11407409 | Assembly, Evaporator (Replaces: W11103612) |
|
Immediately | $ 328.49 | ||||
| 6 | WP489128 | Screw (Replaces: 488500) |
|
$ 10.26 | |||||
| 7 | WPW10314195 | Shield, Heat (Replaces: W10314195) |
|
$ 91.21 | |||||
| 8 | W11092534 | Strap, Bale (Replaces: W10216075) |
|
$ 10.70 | |||||
| 9 | W11807361 | Heat Probe (Replaces: 2258429) |
|
$ 18.11 | |||||
| 10 | WP489478 | Screw (Replaces: 489478) |
|
$ 7.36 | |||||
| 11 | W11611445 | Harness, Unit (Replaces: W11238433) |
|
Immediately | $ 73.97 | ||||
| 12 | WPW10339879 | Tie, Wire (Replaces: 2263990) |
|
$ 7.47 | |||||
| 13 | W11736795 | Bracket, Fan (Replaces: W10633579) |
|
Immediately | $ 64.33 | ||||
| 14 | WPW10169124 | Grommet (Replaces: 10835903) |
|
$ 6.80 | |||||
| 15 | W11092533 | Device, Start (Replaces: W10798748) |
|
Immediately | $ 99.44 | ||||
| 16 | 2219077 | Clip, Harness |
|
$ 57.82 | |||||
| 17 | WPW10475495 | Roller (Replaces: W10475495) |
|
Immediately | $ 28.85 | ||||
| 18 | W11594405 | Axle, Rivet (Replaces: 2179826) |
|
Immediately | $ 17.21 | ||||
| 19 | WPW10662129 | Capacitor (Replaces: W10590083) |
|
Immediately | $ 52.97 | ||||
| 20 | W10300902 | Cover, Heater |
|
$ 26.61 | |||||
| 21 | W10314197 | Bracket, Evaporator |
|
$ 21.10 | |||||
| 22 | W10829281 | Screw (Replaces: W10622701) |
|
$ 11.95 | |||||
| 23 | W11127829 | Motor, Condenser Fan (Replaces: W10909387) |
|
Immediately | $ 203.92 | ||||
| 24 | W11490399 | Drier (Replaces: W11107829) |
|
Immediately | $ 27.32 | ||||
| 25 | W10852725 | Grommet, Condenser (Replaces: 2319835) |
|
$ 7.28 | |||||
| 26 | W11661102 | Tube, Process (Replaces: 2174739) |
|
$ 27.41 | |||||
| 27 | WP489442 | Screw (Replaces: 489442) |
|
Immediately | $ 10.34 | ||||
| 28 | W11480426 | Compressor (Replaces: W11267620) |
|
$ 354.38 | |||||
| 29 | W11193484 | Blade, Fan (Replaces: W10817071) |
|
Immediately | $ 91.34 | ||||
| 30 | W11407403 | Tube, Suction (Replaces: W11087629) |
|
$ 57.48 | |||||
| 31 | W11383479 | Extension, Drain Tube |
|
Immediately | $ 30.80 | ||||
| 32 | W11553819 | Insulation, Sound (Replaces: 2215468) |
|
Immediately | $ 13.29 | ||||
| 33 | W10633573 | Tube, Drain |
|
Immediately | $ 31.67 | ||||
| 34 | W10812039 | Clip, Wire (Replaces: 2326941) |
|
$ 10.01 | |||||
| NI | 978030 | Valve, Access (3/4") |
|
$ 123.53 | |||||
| NI | 978029 | Valve, Access (5/8") |
|
$ 93.85 | |||||
| NI | SF5538 | Valve, Access (3/8") (Replaces: 978027) |
|
$ 16.79 | |||||
| NI | 978026 | Valve, Access (5/16") |
|
Immediately | $ 121.04 | ||||
| NI | WP978025 | Valve, Access (1/4") (Replaces: 978025) |
|
Immediately | $ 99.46 | ||||
| NI | NP | Pedestal (refer To Color Variation Parts Page) |
|
- | |||||
| NI | 876764 | Valve, Access (3/16") |
|
Immediately | $ 86.33 |
