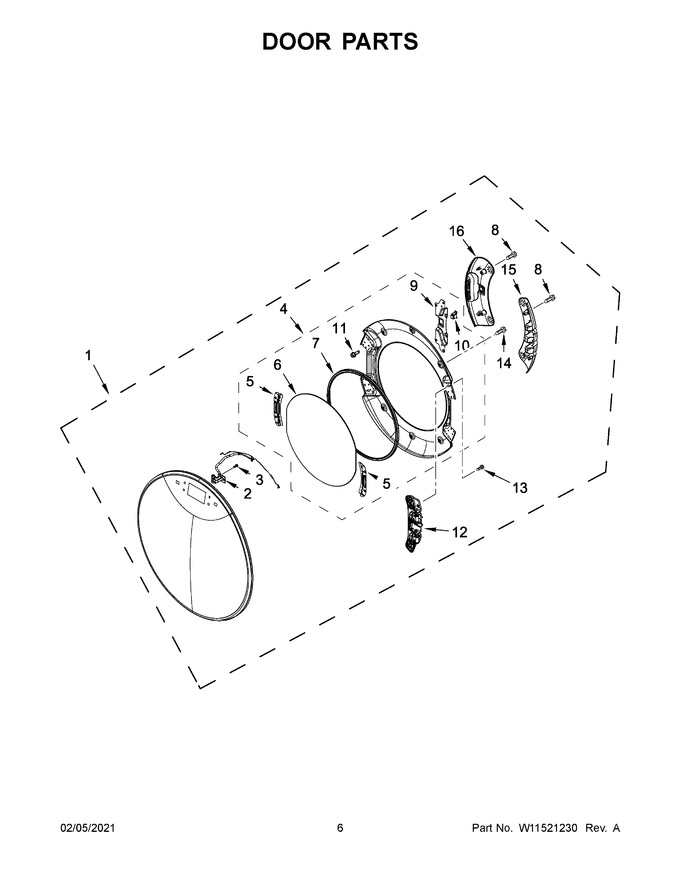

04 - Door Parts
05 - Bulkhead Parts
06 - Burner Assembly Parts
07 - Optional Parts (not Included)
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W11701946 | Assembly, Outer Door (chrome Shadow) (Replaces: W11395101) |
|
Immediately | $ 747.53 | ||||
| 2 | W11338345 | Harness, Tube Assembly (Replaces: W11114000) |
|
$ 162.40 | |||||
| 3 | WP8534022 | Screw (Replaces: 8534022) |
|
$ 7.53 | |||||
| 4 | W11701946 | Assembly, Inner Door (chrome Shadow) (Replaces: W11114023) |
|
Immediately | $ 747.53 | ||||
| 5 | W11310037 | Bracket, Glass (Replaces: W11100789) |
|
$ 19.35 | |||||
| 6 | W11310036 | Glass, Door (Replaces: W10891207) |
|
$ 202.34 | |||||
| 7 | W11310035 | Seal, Glass (Replaces: W11183899) |
|
Immediately | $ 84.38 | ||||
| 8 | W10850046 | Screw (Replaces: 9742177) |
|
Immediately | $ 6.80 | ||||
| 9 | W11310039 | Bracket, Door Catch (Replaces: W11050690) |
|
$ 21.99 | |||||
| 10 | W11240283 | Assembly, Spring Catch (Replaces: W10208401) |
|
Immediately | $ 25.24 | ||||
| 11 | W11661566 | Screw (Replaces: W10288126) |
|
$ 13.26 | |||||
| 12 | W11310038 | Hinge Assembly (Replaces: W11114002) |
|
$ 98.44 | |||||
| 13 | SCREWGROUNDING | Screw, Grounding |
|
- | |||||
| 14 | SCREW | Screw |
|
- | |||||
| 15 | COVERHINGE | Cover, Hinge |
|
- | |||||
| 16 | COVERHANDLE | Cover, Handle |
|
- |
