SELECT A DIAGRAM

01 - Cover Sheet


02 - Burner Box, Griddle, And Grill Parts

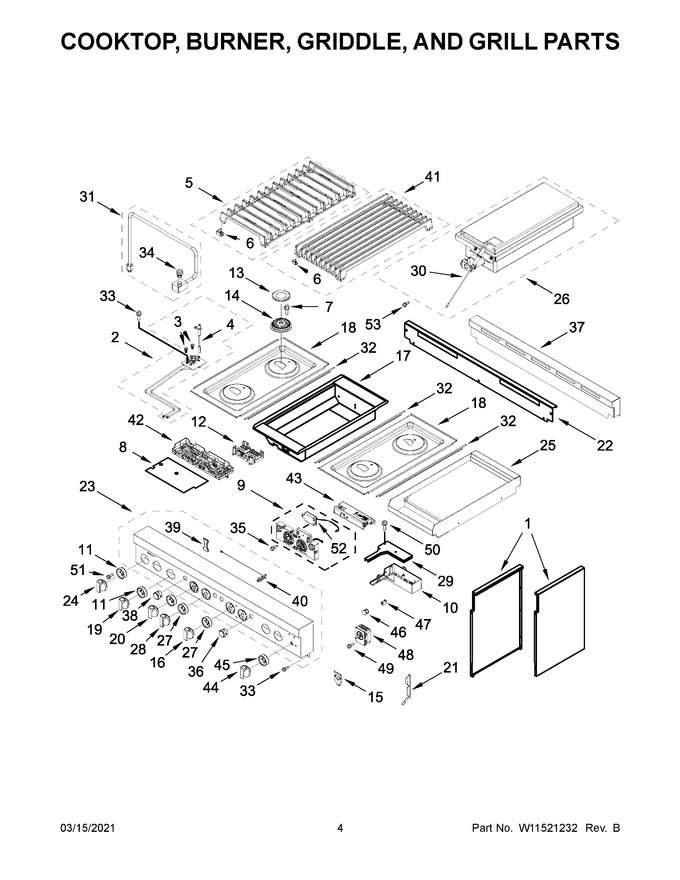

03 - Cooktop, Burner, Griddle, And Grill Parts


04 - 48" Chassis Parts


05 - 30" Oven Parts


06 - 18" Oven Parts


07 - Venting Parts


08 - 30" Oven Door Parts


09 - 18" Oven Door Parts


10 - 30" Internal Oven Parts


11 - 18" Internal Oven Parts


12 - Optional Parts (not Included)


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W11321067		Panel, Cabinet Side (left)   (Replaces: W11111429)				$ 395.43
2	W11319741		Assembly, Orifice Holder (left Front)   (Replaces: W10892807)				$ 109.49
3	W11643164		Orifice, Main (17.4k) (left Front)   (Replaces: W10892422)			Immediately	$ 58.69
4	W11573760		Igniter (left Front, Left Rear, Right Front)   (Replaces: W11238757)			Immediately	$ 21.13
5	W11516449		Assembly, Grate (black (left))   (Replaces: W11172289)				$ 238.55
6	W11550692		Bumper, Grate   (Replaces: W11042504)			Immediately	$ 11.31
7	W11766499		Screw   (Replaces: W11323260)			Immediately	$ 11.45
8	W11320149		Barrier, Appliance Manager   (Replaces: W11281269)				$ 117.51
9	W11492275		Interface, User   (Replaces: W11436326)			Immediately	$ 516.55
10	W11320411		Cover, Wifi Outer   (Replaces: W11205795)		Appelez-nous	-
11	W11317889		Bezel, Cooktop (for 4 Cooktop Burners)   (Replaces: W11090284)				$ 96.18
12	W11355250		Manager, Appliance (expansion)   (Replaces: W10871065)				$ 406.46
13	W11328971		Cap, Burner (black (set Of 4))   (Replaces: W11121391)				$ 156.06
14	W11319683		Spreader, Flame (high) (left Front, Left Rear, Right Front)   (Replaces: W10891987)			Immediately	$ 225.62
15	W11318207		Spring Clip, Range   (Replaces: W11036559)				$ 11.59
16	W11397970		Knob, Oven Mode (stainless)   (Replaces: W11317854)				$ 147.89
17	W11328566		Assembly, Grill Box   (Replaces: W11174429)		Appelez-nous	-
18	W11316700		Panel, Cooktop (black (left))   (Replaces: W11038237)				$ 451.81
19	W11328010		Knob, Grill (stainless)   (Replaces: W10894926)				$ 305.31
20	W11406544		Knob, 18" Oven Mode Gas (stainless)   (Replaces: W11325046)		Appelez-nous	-
21	W10130760		Bracket, Moving Console (left)				$ 68.35
22	W10323252		Trim, Island Insert				$ 187.05
23	W11444450		Panel, Console   (Replaces: W11253770)				$ 930.89
24	W11317537		Knob, Burner (for 4 Cooktop Burners) (stainless)   (Replaces: W10887596)			Immediately	$ 157.68
25	NP		Following Parts Not Illustrated		Appelez-nous	-
26	W11328568		Assembly, Grill Burner   (Replaces: W11120976)				$ 764.05
27	W11317892		Bezel, Oven (for 2 Oven Knobs) (stainless)   (Replaces: W11042375)				$ 99.67
28	W11406542		Knob, Oven Temperature (stainless (for 18" Oven))   (Replaces: W11325047)		Appelez-nous	-
29	W11320410		Cover, Wifi Inner   (Replaces: W11205794)		Appelez-nous	-
30	W11328571		Electrode, Grill   (Replaces: W11174598)		Appelez-nous	-
31	W11517686		Grill Orifice Holder Assembly (left Center)   (Replaces: W11419278)		Appelez-nous	-
32	W10291193		Trim, L-strip		Appelez-nous	-
33	7101P42660		Screw		Appelez-nous	-
34	W11419282		Orifice, Grill (18k) (center)		Appelez-nous	-
35	WP3400814		Screw   (Replaces: 3400814)				$ 4.16
36	W11319196		Button Assembly, Oven Start   (Replaces: W11090650)				$ 21.30
37	W11516014		Island Trim   (Replaces: W11476244)				$ 399.24
38	W11318857		Button Assembly, Oven Light   (Replaces: W11090651)				$ 21.43
39	W11318856		Assembly, Light Pipe   (Replaces: W10896369)				$ 98.42
40	W11318855		Antenna, Wifi   (Replaces: W11130078)				$ 206.03
41	W11516484		Assembly, Grill Grate   (Replaces: W11172682)				$ 341.71
42	W11355232		Manager, Appliance (powermax)   (Replaces: W11100277)			Immediately	$ 432.54
43	W11234290		Assembly, Wifi Module   (Replaces: W11110768)				$ 161.90
44	W11317536		Knob, Griddle (stainless)   (Replaces: W10891923)				$ 133.77
45	W11317890		Bezel, Griddle   (Replaces: W11104967)				$ 98.60
46	W10294500		Lens, Indicator Light				$ 6.92
47	W10116114		Light, Indicator Housing			Immediately	$ 84.21
48	W11318834		Control, Griddle   (Replaces: W11033497)			Immediately	$ 320.87
49	W10674068		Screw				$ 21.95
50	7101P62460		Screw		Appelez-nous	-
51	W11509770		Screw   (Replaces: W11328357)				$ 12.81
52	W11123146		Assembly, Speaker   (Replaces: W10568405)				$ 72.84
53	WP3196557		Screw   (Replaces: 3196537)			Immediately	$ 7.16
14A	W11319673		Spreader, Flame (low) (right Rear)   (Replaces: W10892022)			Immediately	$ 206.51
18A	W11316701		Panel, Cooktop (black (center))   (Replaces: W11038241)				$ 451.81
1A	W11320596		Panel, Cabinet Side (right)   (Replaces: W11111428)				$ 405.28
21A	W10130759		Bracket, Moving Console (right)				$ 68.35
28A	W11317539		Knob, Oven Temperature (stainless)   (Replaces: W10891868)				$ 138.80
2A	W11319746		Assembly, Orifice Holder (left Rear)   (Replaces: W10892495)				$ 111.52
2B	W11319743		Assembly, Orifice Holder (right Center Front)   (Replaces: W10892505)				$ 112.62
2C	W11328970		Assembly, Orifice Holder (right Center Rear)   (Replaces: W10892721)		Appelez-nous	-
3A	W10892418		Orifice, Main (15.4k) (left Rear And Right Front)			Immediately	$ 92.73
3B	W10892440		Orifice, Main (7.2k) (right Rear)				$ 89.87
3C	W11661909		Orifice, Simmer (2.6k) (left Front, Left Rear, Right Front)   (Replaces: W10892435)			Immediately	$ 67.52
3D	W10892429		Orifice, Simmer (2.0k) (right Rear)				$ 89.87
4A	W11238756		Igniter (right Rear)			Immediately	$ 61.16
5A	W11516462		Assembly, Grate (black (right))   (Replaces: W11172625)				$ 238.56
