SELECT A DIAGRAM

01 - Cover Sheet

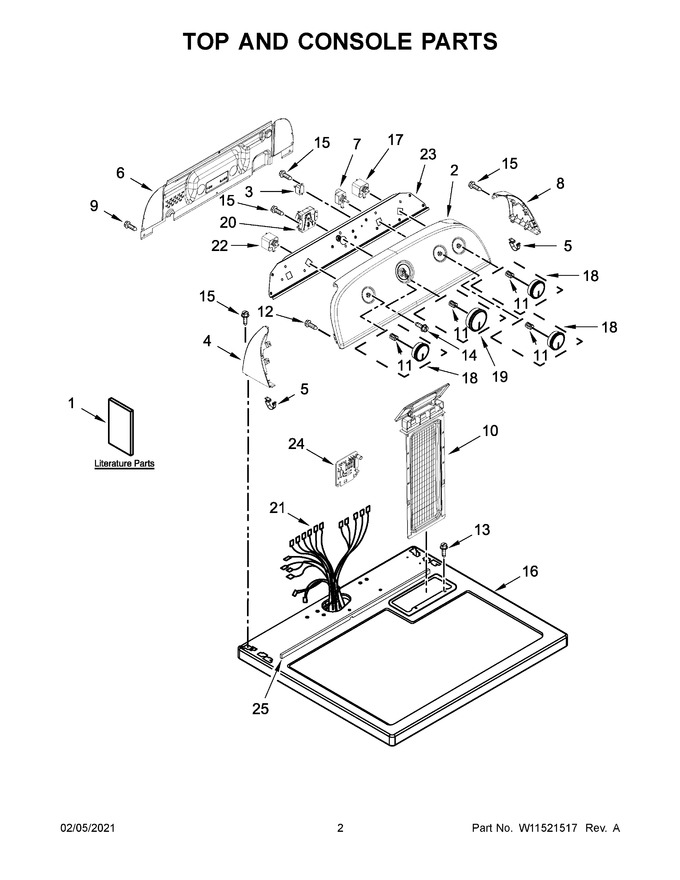

02 - Top And Console Parts


03 - Cabinet Parts


04 - Bulkhead Parts


05 - Burner Assembly Parts


06 - Optional Parts (not Included)


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W11361424		Owners Manual		Appelez-nous	-
2	W10672827		Console (white)		Appelez-nous	-
3	WP694419		Buzzer, Mini   (Replaces: 694419)				$ 120.65
4	WPW10520782		End Cap (left) (white)   (Replaces: W10520782)				$ 58.22
5	WP8312709		Clip, Console   (Replaces: 8312709)			Immediately	$ 14.93
6	W10556829		Panel, Rear (console)				$ 257.24
7	WP3405156		Switch, Rotary (2 Pos)   (Replaces: 3405156)				$ 137.51
8	WPW10520780		End Cap (right) (white)   (Replaces: W10520780)				$ 57.91
9	WP693995		Screw   (Replaces: 693995)			Immediately	$ 6.80
10	W11778253		Screen, Lint (white)   (Replaces: W11451394)			Immediately	$ 49.17
11	WP688805		Clip, Spring   (Replaces: 688805)			Immediately	$ 7.38
12	WP3400818		Screw   (Replaces: 3400818)				$ 7.93
13	W11693756		Screw   (Replaces: 688983)			Immediately	$ 13.28
14	W10850756		Screw   (Replaces: W10773242)				$ 7.38
15	WP90767		Screw   (Replaces: 3348629)			Immediately	$ 7.43
16	WP8563663		Top (white)   (Replaces: 8559800)			Immediately	$ 314.33
17	WPW10117655		Switch, Push To Start   (Replaces: W10117655)			Immediately	$ 77.04
18	W10576636		Assembly, Control Knob (white/metallic)		Appelez-nous	-
19	W11501455		Assembly, Timer Knob (white/metallic)   (Replaces: W10576634)				$ 41.20
20	WPW10185992		Timer Assembly (60 Hz.)   (Replaces: W10185992)			Immediately	$ 164.31
21	W10865752		Harness, Wiring		Appelez-nous	-
22	W11106324		Switch, Temperature   (Replaces: 3405155)				$ 211.62
23	W10556828		Control Bracket		Appelez-nous	-
24	WPW10476828		Control, Electronic   (Replaces: W10476828)			Immediately	$ 296.94
25	W10316616		Seal, Foam				$ 25.01
1A	W11355746		Quick Start Guide		Appelez-nous	-
1B	W10876314		Wiring Diagram		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
