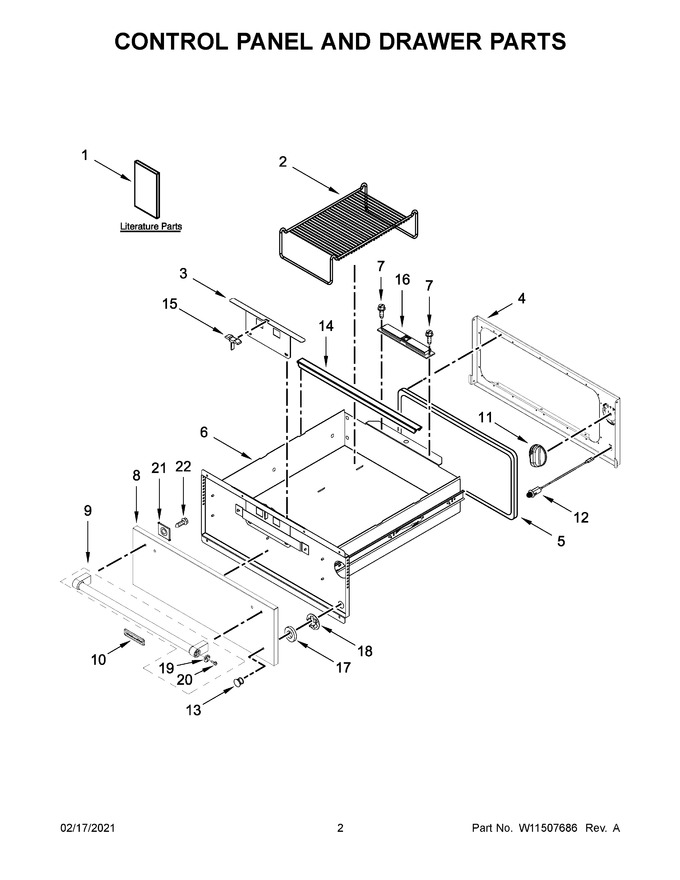

02 - Control Panel And Drawer Parts
03 - Internal Warming Drawer Parts
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W10713340 | Guide, Use & Care |
|
- | |||||
| 2 | 8273277 | Rack, Warming Drawer |
|
$ 99.80 | |||||
| 3 | W10162376 | Slide, Vent |
|
$ 96.82 | |||||
| 4 | W10492179 | Panel, Front |
|
- | |||||
| 5 | W10164998 | Gasket, Drawer |
|
$ 36.60 | |||||
| 6 | WP9763646 | Assembly, Drawer (Replaces: 9763646) |
|
Immediately | $ 462.79 | ||||
| 7 | 7101P37660 | Screw |
|
- | |||||
| 8 | W11452852 | Drawer Skin Assembly |
|
- | |||||
| 9 | W11518518 | Assembly, Handle (stainless) (Replaces: W11241572) |
|
$ 208.58 | |||||
| 10 | W10909682 | Badge (Replaces: W10518672) |
|
Immediately | $ 68.58 | ||||
| 11 | W10854530 | Knob, Thermostat (Replaces: 4455984) |
|
$ 15.71 | |||||
| 12 | W10489562 | Light, Indicator |
|
$ 91.92 | |||||
| 13 | 4456314 | Lens, Indicator |
|
$ 91.89 | |||||
| 14 | W10409138 | Rail, Pan |
|
Immediately | $ 104.96 | ||||
| 15 | 9763125 | Grip, Vent |
|
$ 72.07 | |||||
| 16 | W10035910 | Magnet |
|
$ 181.67 | |||||
| 17 | 4456861 | Spacer, Lens |
|
$ 6.66 | |||||
| 18 | 4456862 | Clip, Lens Retainer |
|
$ 6.63 | |||||
| 19 | W10846207 | Medallion, Handle (Replaces: W10551026) |
|
Immediately | $ 20.83 | ||||
| 20 | W10920281 | Screw (Replaces: W10656499) |
|
Immediately | $ 8.06 | ||||
| 21 | 3823F01745 | Spacer, Handle |
|
- | |||||
| 22 | W10831019 | Screw (Replaces: W10480830) |
|
Immediately | $ 7.44 | ||||
| 1A | W10064720 | Sheet, Tech |
|
- | |||||
| 1B | W10845860 | Installation Instructions |
|
- |
