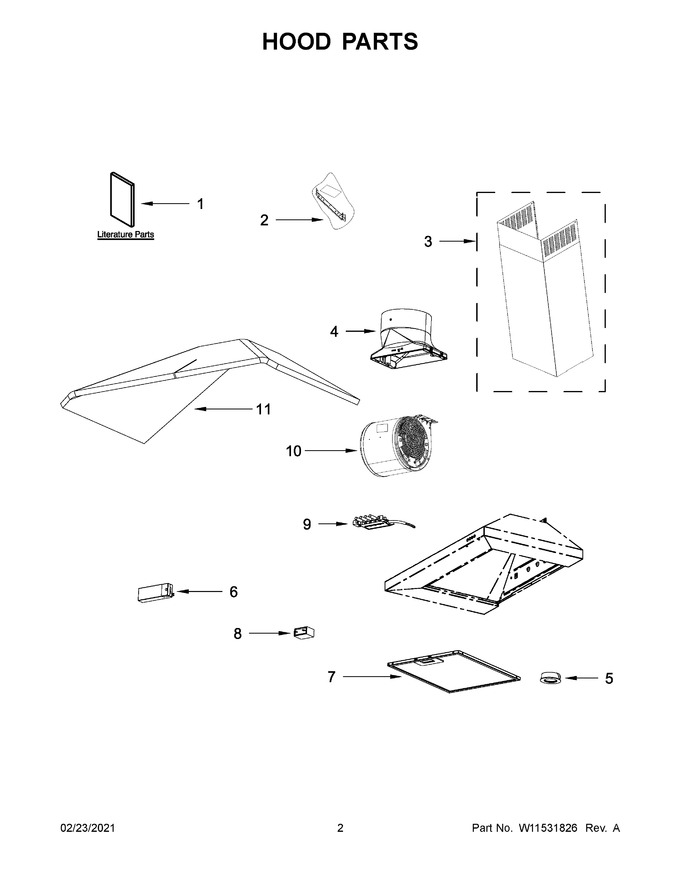

02 - Hood Parts
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W11174128 | Use And Care Guide |
|
- | |||||
| 2 | W11239539 | Hardware, Installation (Replaces: W10894840) |
|
Immediately | $ 106.28 | ||||
| 3 | W11417192 | Chimney, Upper And Lower (Replaces: W11354650) |
|
$ 338.23 | |||||
| 4 | W10847841 | Damper, Hood (Replaces: W10592040) |
|
$ 140.43 | |||||
| 5 | W11794237 | Light, Led (Replaces: W11488580) |
|
Immediately | $ 76.20 | ||||
| 6 | W11282989 | Driver, Led (Replaces: W11281878) |
|
$ 237.02 | |||||
| 7 | W10169961A | Filter, Grease (Replaces: W11245983) |
|
Immediately | $ 37.65 | ||||
| 8 | W11328673 | Capacitor |
|
Immediately | $ 59.00 | ||||
| 9 | W11354834 | Control, Electronic (Replaces: W11354648) |
|
$ 288.40 | |||||
| 10 | W11354646 | Blower, Fan |
|
Immediately | $ 356.80 | ||||
| 11 | W11688813 | Insulation, 30" Model Only (Replaces: W10735403) |
|
Immediately | $ 223.27 | ||||
| 11A | W11684790 | Insulation, 36" Model Only (Replaces: W10735407) |
|
- | |||||
| NI | W10446915 | Accessories, Kit, Kit, 6" Makeup Air |
|
$ 316.52 | |||||
| NI | W10894817 | Accessories, Kit, Universal Screw |
|
$ 80.40 | |||||
| NI | W11430940 | Accessories, Kit, Recirculation Kit (for Non-vented Installations Only) (Replaces: W10349327) |
|
Immediately | $ 137.92 | ||||
| NI | W10412939 | Accessories, Kit, Kit, Charcoal Filter (for Non-vented Installations Only) |
|
Immediately | $ 66.98 |
