01 - Cover Sheet

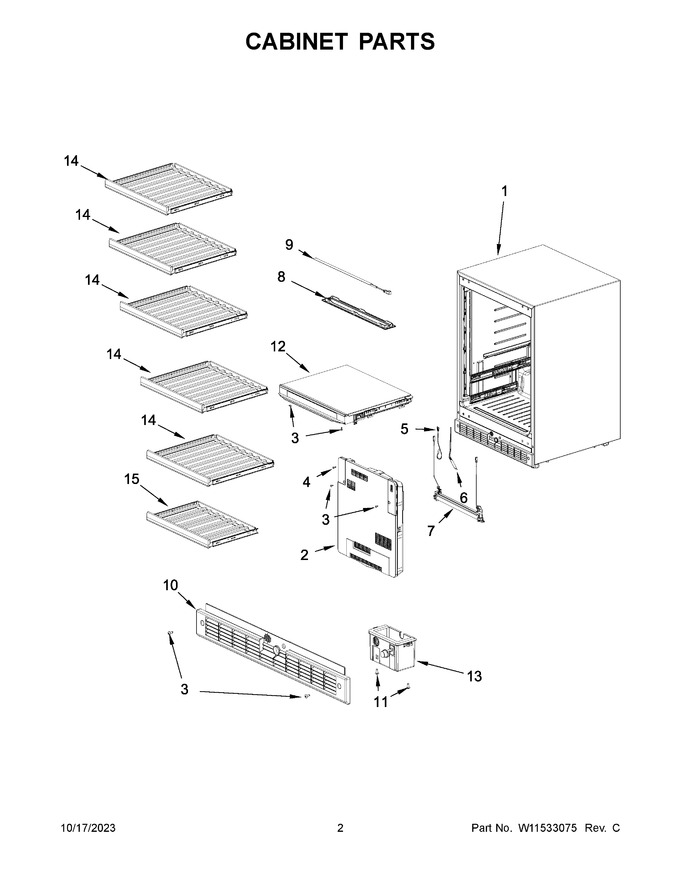

02 - Cabinet Parts
03 - Door Parts
04 - Unit Parts
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | ARI312DF4305528C9341C495E6332910255 | Cabinet (not A Service Part) |
|
- | |||||
| 2 | W11532990 | Assembly, Evaporator Cover (includes Fan Motor, Damper And Sensor) |
|
$ 358.97 | |||||
| 3 | W11675284 | Screw (Replaces: W11371095) |
|
$ 14.35 | |||||
| 4 | W11375760 | Screw |
|
- | |||||
| 5 | W11266076 | Sensor, Defrost (Replaces: W11263884) |
|
$ 109.50 | |||||
| 6 | W11359415 | Fuse, Temperature |
|
$ 98.35 | |||||
| 7 | W11359416 | Defrost Holder And Heater |
|
- | |||||
| 8 | W11312450 | Cover, Led |
|
- | |||||
| 9 | W11497301 | Assembly, Led (Replaces: W11492253) |
|
$ 73.85 | |||||
| 10 | W11360218 | Kick, Plate |
|
$ 109.15 | |||||
| 11 | W11371097 | Screw |
|
- | |||||
| 12 | W11532916 | Assembly, Separator |
|
$ 437.80 | |||||
| 13 | W11359433 | Assembly, Switch Box |
|
$ 137.60 | |||||
| 14 | W11532969 | Upper, Wine Rack |
|
Immediately | $ 380.86 | ||||
| 15 | W11532977 | Lower, Wine Rack |
|
$ 459.23 |
