SELECT A DIAGRAM
01 - Cover Sheet

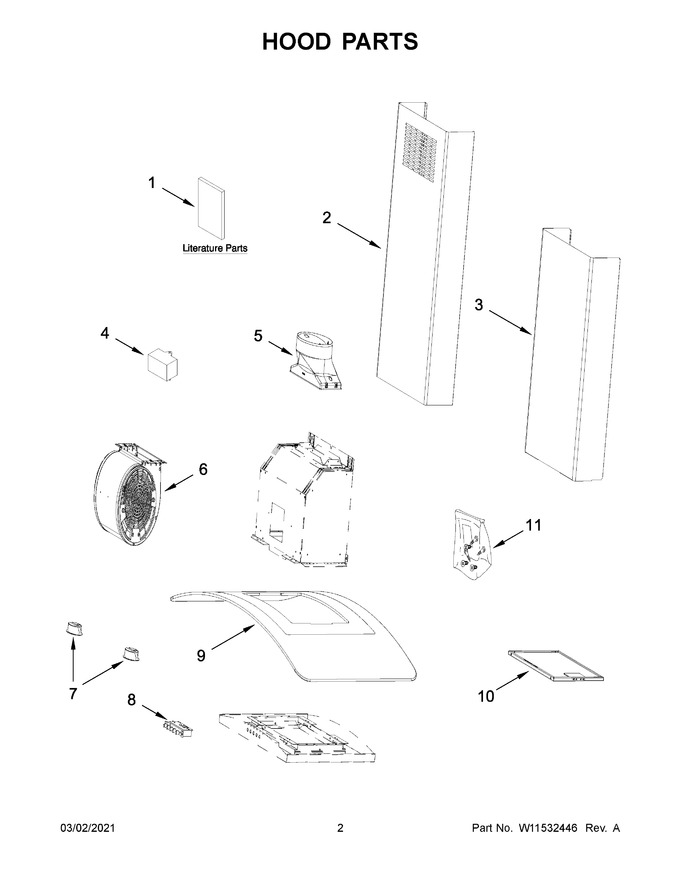

02 - Hood Parts
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W10292168 | Use & Care Guide |
|
- | |||||
| 2 | W10883262 | Chimney, Upper |
|
- | |||||
| 3 | W11321565 | Chimney, Lower (Replaces: W10351830) |
|
$ 358.34 | |||||
| 4 | W11328673 | Capacitor (Replaces: W10735734) |
|
Immediately | $ 59.00 | ||||
| 5 | W10847841 | Damper, Hood (Replaces: W10592040) |
|
$ 140.43 | |||||
| 6 | W10894803 | Motor, Fan |
|
$ 338.56 | |||||
| 7 | WPW10562734 | Assembly, Light Puck (Replaces: W10562734) |
|
Immediately | $ 119.55 | ||||
| 8 | W10861722 | Control, Motor |
|
$ 213.40 | |||||
| 9 | W10313849 | Glass (36") |
|
$ 215.96 | |||||
| 10 | W10169961A | Filter, Grease (Replaces: W10870878) |
|
Immediately | $ 37.65 | ||||
| 11 | W11178103 | Hardware, Installation (Replaces: W11178069) |
|
- |
