01 - Cover Sheet

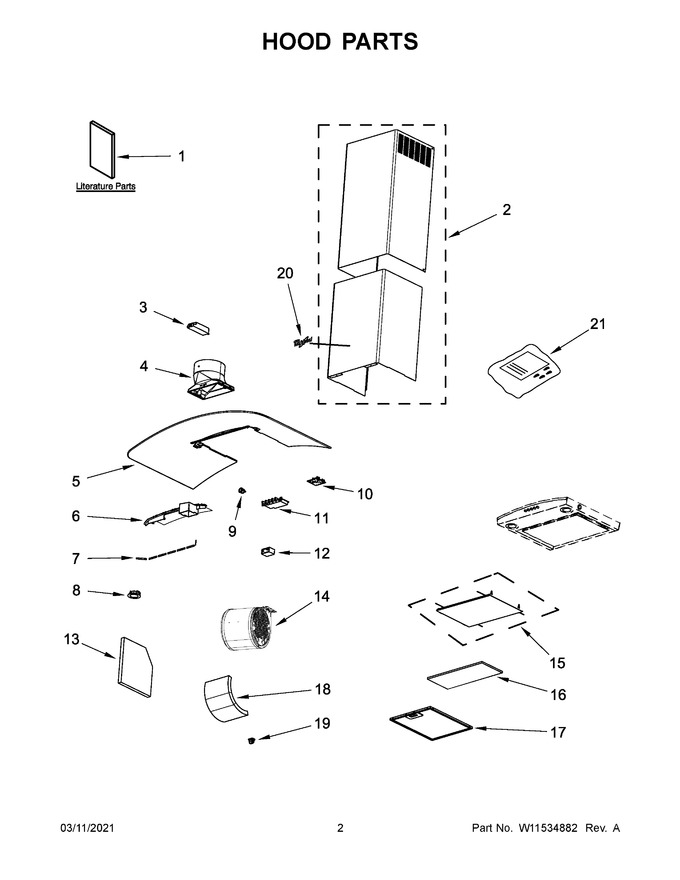

02 - Hood Parts
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W11134239 | Use And Care Guide |
|
- | |||||
| 2 | W11590865 | Chimney, Upper And Lower (Replaces: W11328682) |
|
$ 350.33 | |||||
| 3 | W11282989 | Driver, Led (Replaces: W11281878) |
|
$ 237.02 | |||||
| 4 | W10847841 | Damper, Hood (Replaces: W10592040) |
|
$ 140.43 | |||||
| 5 | WPW10738509 | Glass, 30" Model Only (Replaces: W10738509) |
|
$ 250.98 | |||||
| 6 | W10738520 | Support, Light |
|
$ 88.15 | |||||
| 7 | W10727052 | Strip, Led Light |
|
$ 318.90 | |||||
| 8 | W11794237 | Light, Led (Replaces: W11488580) |
|
Immediately | $ 76.20 | ||||
| 9 | W10727051 | Switch, Light |
|
Immediately | $ 82.32 | ||||
| 10 | W10738544 | Sensor, Light |
|
$ 285.50 | |||||
| 11 | W11035084 | Control, Electronic (Replaces: W11034918) |
|
$ 281.34 | |||||
| 12 | W11328673 | Capacitor |
|
Immediately | $ 59.00 | ||||
| 13 | W11848867 | Insulation, Side (Replaces: W10717244) |
|
$ 81.32 | |||||
| 14 | W10738514 | Blower, Fan |
|
$ 398.27 | |||||
| 15 | W10738508 | Panel, Perimetric |
|
$ 334.85 | |||||
| 16 | W11688811 | Insulation (Replaces: W11034923) |
|
$ 119.24 | |||||
| 17 | W10169961A | Filter, Grease (Replaces: W11245983) |
|
Immediately | $ 37.65 | ||||
| 18 | W11688852 | Insulation, Motor (Replaces: W10894814) |
|
$ 71.89 | |||||
| 19 | W10854245 | Clip, Panel (Replaces: W10735735) |
|
Immediately | $ 68.03 | ||||
| 20 | W11178521 | Badge (grey) (Replaces: W10434972) |
|
Immediately | $ 56.82 | ||||
| 21 | W11178652 | Hardware, Installation |
|
$ 106.28 | |||||
| 5A | WPW10738521 | Glass, 36" Model Only (Replaces: W10738521) |
|
$ 315.93 |
