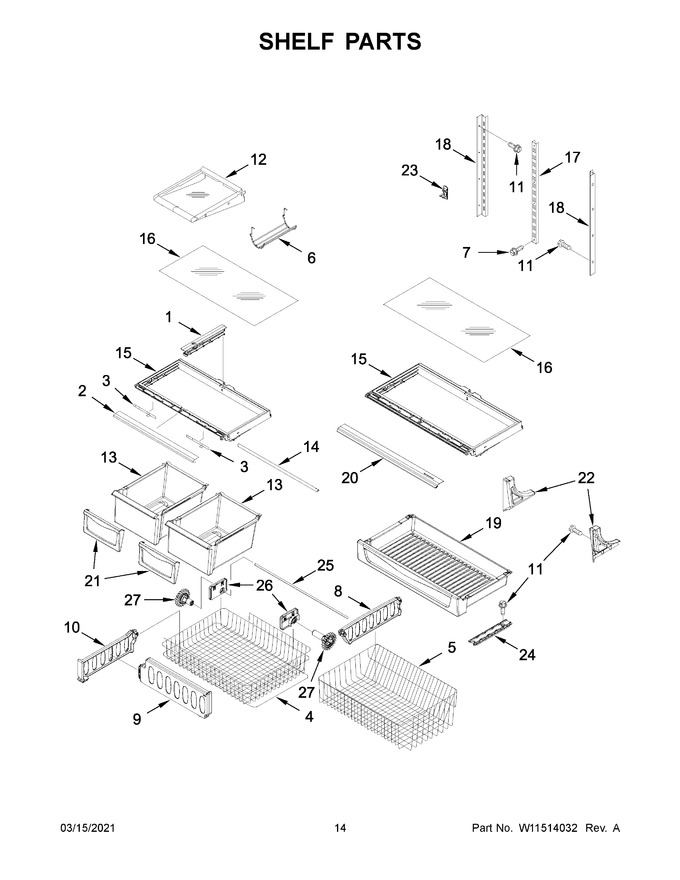

SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | WPW10671238 | Rail, Center Crisper (Replaces: W10671238) |
|
Immediately | $ 106.61 | ||||
| 2 | WPW10231343 | Trim, Crisper (Replaces: W10231343) |
|
Immediately | $ 89.69 | ||||
| 3 | WP67005864 | Slide, Humidity Control (Replaces: 12530805SP) |
|
Immediately | $ 7.38 | ||||
| 4 | W11281084 | Basket, Freezer (upper) (Replaces: W11115252) |
|
- | |||||
| 5 | W11127323 | Basket, Freezer (lower) (Replaces: W11115780) |
|
Immediately | $ 123.68 | ||||
| 6 | W10335942 | Rack, Hanging Wire |
|
$ 121.38 | |||||
| 7 | W10215666 | Screw |
|
$ 8.58 | |||||
| 8 | W10847995 | Divider, Basket (lower) (Replaces: W10146440) |
|
$ 83.23 | |||||
| 9 | W10311695 | Divider, Basket (upper) |
|
$ 27.18 | |||||
| 10 | W10241046 | Divider, Basket (upper) |
|
Immediately | $ 26.27 | ||||
| 11 | 67006425 | Screw (Replaces: 12990513) |
|
Immediately | $ 6.57 | ||||
| 12 | W11402523 | Shelf, Stationary (Replaces: W11358360) |
|
Immediately | $ 209.21 | ||||
| 13 | WP67002633 | Pan, Crisper (Replaces: 12530505SP) |
|
Immediately | $ 155.96 | ||||
| 14 | WP12227303WD | Brace, Crisper Cover (Replaces: 12227303WD) |
|
$ 100.13 | |||||
| 15 | W10858393 | Frame, Crisper (Replaces: W10671241) |
|
Immediately | $ 147.82 | ||||
| 16 | WP67006878 | Glass, Crisper (Replaces: 12204822) |
|
Immediately | $ 201.12 | ||||
| 17 | W10273463 | Ladder, Center |
|
$ 26.65 | |||||
| 18 | W10251969 | Ladder, Side |
|
$ 28.30 | |||||
| 19 | W10328327 | Drawer, Pantry |
|
$ 144.24 | |||||
| 20 | W10656986 | Trim, Pantry Front |
|
$ 111.71 | |||||
| 21 | 12643702 | Frame, Crisper Pan (Replaces: 12643702SP) |
|
Immediately | $ 39.57 | ||||
| 22 | WP67001721 | Support, Crisper (left Hand) (Replaces: 12531001) |
|
Immediately | $ 7.83 | ||||
| 23 | WP67001716 | Hook, Ladder (Replaces: 12531802) |
|
Immediately | $ 10.03 | ||||
| 24 | WP67001719 | Track, Deli Drawer (Replaces: 12531901) |
|
Immediately | $ 8.09 | ||||
| 25 | W10802339 | Shaft, Rack |
|
$ 93.75 | |||||
| 26 | W10348259 | Mount, Gear (left Hand) |
|
$ 80.88 | |||||
| 27 | WPW10474716 | Gear, Spur (left Hand) (Replaces: W10474716) |
|
Immediately | $ 29.18 | ||||
| 22A | WP67001722 | Support, Crisper (right Hand) (Replaces: 12531002) |
|
Immediately | $ 8.04 | ||||
| 26A | W10348260 | Mount, Gear (right Hand) |
|
$ 80.91 | |||||
| 27A | WPW10474715 | Gear, Spur (right Hand) (Replaces: W10474715) |
|
Immediately | $ 29.48 |
