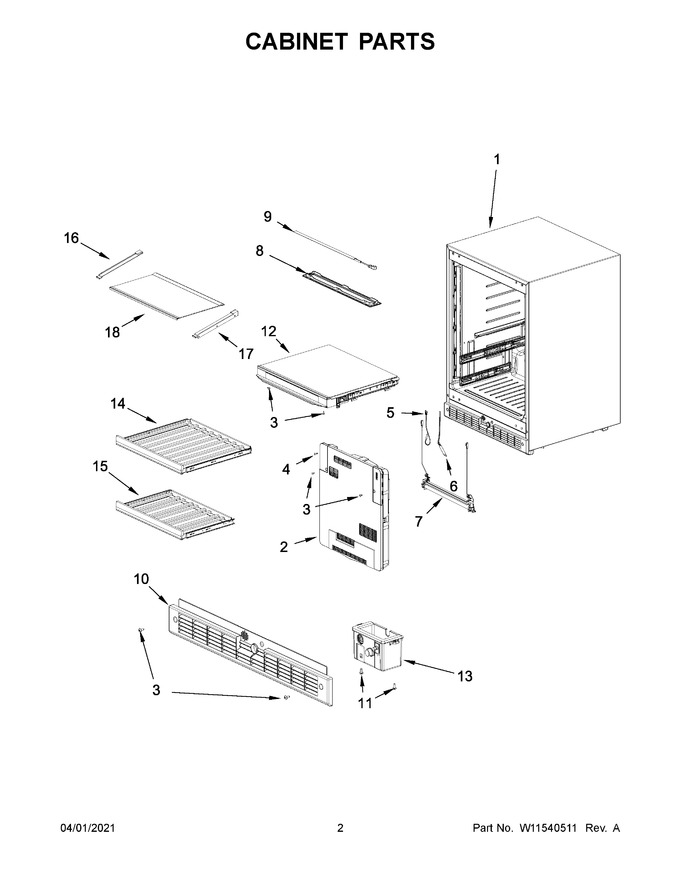

SELECT A DIAGRAM

01 - Cover Sheet


02 - Cabinet Parts


03 - Door Parts


04 - Unit Parts


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	NP		Following Parts Not Illustrated		Appelez-nous	-
2	W11532990		Assembly, Evaporator Cover (includes Fan Motor, Damper And Sensor)				$ 358.97
3	W11675284		Screw   (Replaces: W11371095)				$ 14.35
4	W11375760		Screw		Appelez-nous	-
5	W11266076		Sensor, Defrost   (Replaces: W11263884)				$ 109.50
6	W11359415		Fuse, Temperature				$ 98.35
7	W11359416		Defrost Holder And Heater		Appelez-nous	-
8	W11312450		Cover, Led		Appelez-nous	-
9	W11497301		Assembly, Led   (Replaces: W11492253)				$ 73.85
10	W11360218		Kick, Plate				$ 109.15
11	W11371097		Screw		Appelez-nous	-
12	W11537984		Separator				$ 539.27
13	W11359433		Assembly, Switch Box				$ 137.60
14	W11532969		Upper, Wine Rack			Immediately	$ 380.86
15	W11532977		Lower, Wine Rack				$ 459.23
16	W10797332		Support, Shelf (left Hand)				$ 27.14
17	W10797333		Support, Shelf (right Hand)				$ 27.14
18	W11547158		Tray, Glass   (Replaces: W11538045)				$ 97.02

    View Diagram in Separate Window       Print Part List
