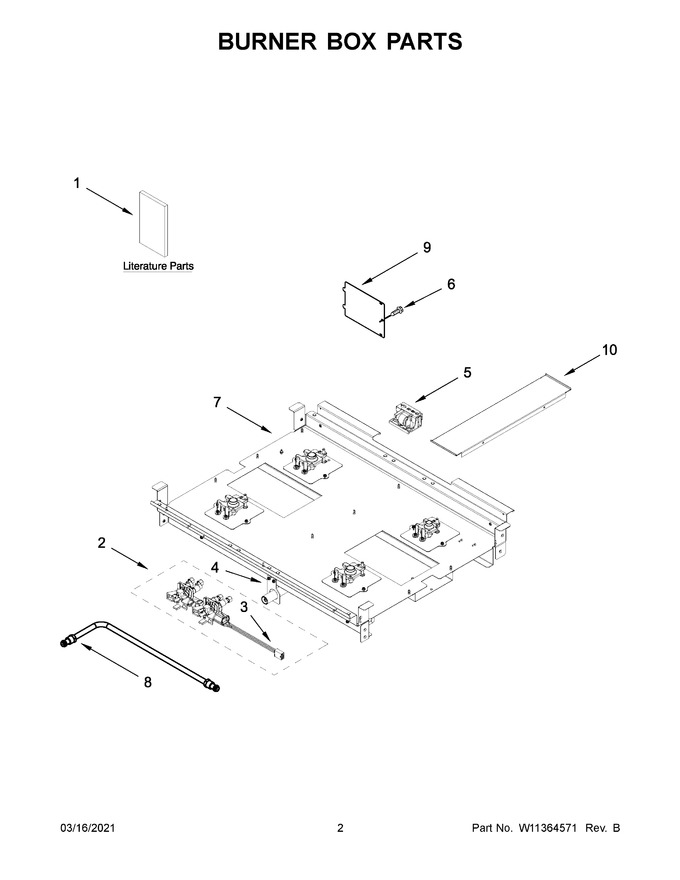

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W11177275		Guide, Use And Care		Appelez-nous	-
2	W11320025		Assembly, Valve Manifold (left Front And Left Rear)   (Replaces: W10893051)				$ 423.79
3	W11320016		Switch, Harness   (Replaces: W11106300)			Immediately	$ 243.74
4	W11320153		Bracket, Manifold   (Replaces: W11121194)				$ 71.97
5	W11818690		Module, Spark   (Replaces: W11121317)			Immediately	$ 73.44
6	7101P42660		Screw		Appelez-nous	-
7	NP		Following Parts Not Illustrated		Appelez-nous	-
8	W11335267		Tube, Manifold Supply (left)   (Replaces: W10892073)		Appelez-nous	-
9	W10115843		Cover, Ignition		Appelez-nous	-
10	W11121361		Filler, Cooktop				$ 419.09
1A	W11177278		Instructions, Installation		Appelez-nous	-
1B	W11177312		Guide, Quick Start		Appelez-nous	-
1C	W11184746		Guide, Internet Connectivity		Appelez-nous	-
1D	W11202371		Diagram, Wiring (oven)		Appelez-nous	-
1E	W11202275		Sheet, Tech		Appelez-nous	-
2A	W11320019		Assembly, Valve Manifold (right Front And Right Rear)   (Replaces: W10893058)			Immediately	$ 404.06
8A	W11335268		Tube, Manifold Supply (right)   (Replaces: W10892076)		Appelez-nous	-
NI	W11428599		Kit, Lp Conversion   (Replaces: W11238041)			Immediately	$ 43.06
NI	W11446236		Ignitor Wire, Wire-electrode Bake   (Replaces: W11311196)				$ 19.04
NI	W11200328		Harness, Cooktop				$ 179.92
NI	W11200306		Harness, Main (30")		Appelez-nous	-
NI	W11317791		Harness, Wifi   (Replaces: W11242785)				$ 102.35
NI	W11200325		Harness, Communication				$ 104.57
NI	W10624584		Cord, Power				$ 170.61
NI	W10780278		Harness, Door Lock			Immediately	$ 86.28
NI	W11544575		Bracket, Anti-tip   (Replaces: W10253333)				$ 53.89
NI	4450800		Screw, Grounding				$ 12.12
NI	7101P48560		Screw, Anti-tip Kit		Appelez-nous	-
NI	NP		Following Parts Not Illustrated		Appelez-nous	-
