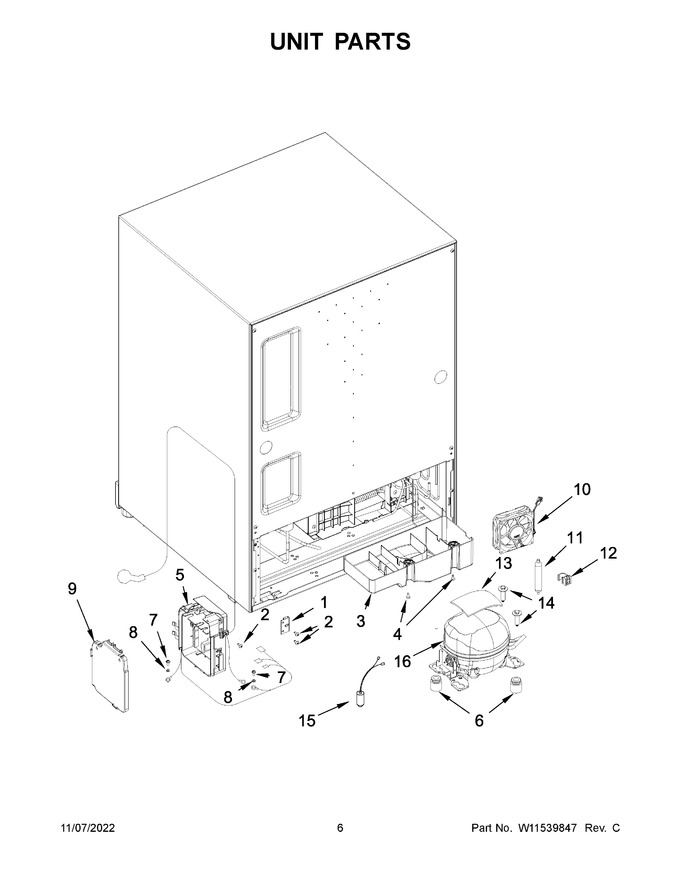

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W10270517		Clamp, Cord				$ 71.56
2	W11371097		Screw		Appelez-nous	-
3	W11538057		Pan, Water				$ 104.69
4	W11375763		Screw		Appelez-nous	-
5	W11756323		Box, Pcb   (Replaces: W11538049)			Immediately	$ 629.92
6	WP4344779		Grommet, Compressor   (Replaces: 4344779)				$ 7.62
7	4344826		Screw				$ 15.03
8	W11266077		Washer   (Replaces: W11265570)		Appelez-nous	-
9	W11313206		Cover, Pcb				$ 73.67
10	W11360536		Assembly, Fan Motor				$ 194.29
11	W10163273		Drier				$ 93.07
12	W11266075		Clamp   (Replaces: W11265569)		Appelez-nous	-
13	W11596025		Compressor, Rubber   (Replaces: W11360595)				$ 34.44
14	W10772873		Bolt		Appelez-nous	-
15	W11538053		Capacitor				$ 88.51
16	W11817962		Compressor   (Replaces: W11538055)				$ 584.34
NI	NP		Gearcase Motor Housing (refer To Color Variation Parts Page)		Appelez-nous	-
