01 - Cover Sheet

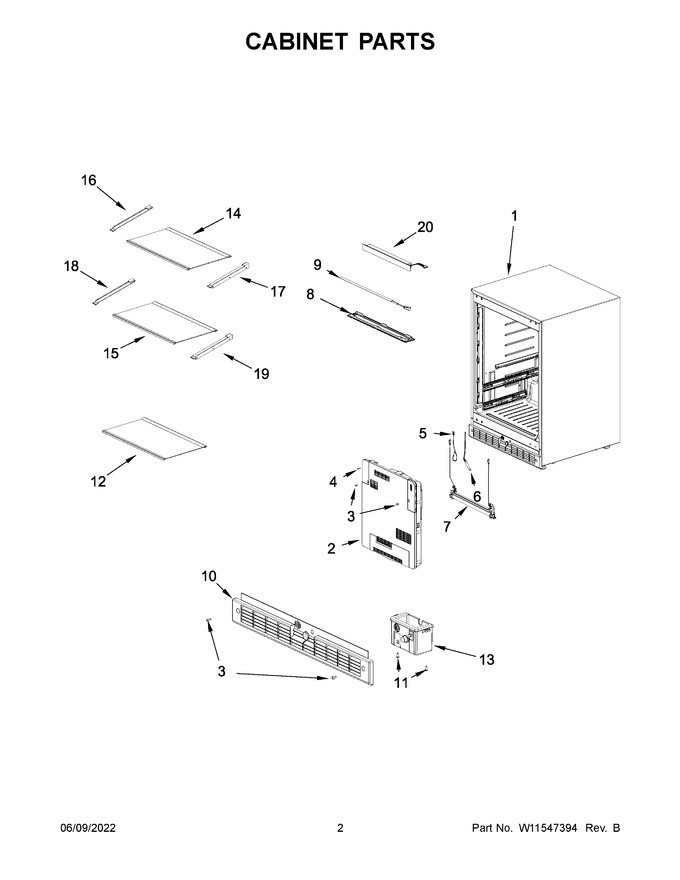

02 - Cabinet Parts


03 - Door Parts


04 - Unit Parts


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	NP		Cabinet (not A Serviceable Part)		Appelez-nous	-
2	W11633775		Assembly, Evaporator Cover (includes Fan Motor, Damper And Sensor)   (Replaces: W11407975)				$ 339.97
3	W11675284		Screw   (Replaces: W11371095)				$ 14.35
4	W11375760		Screw		Appelez-nous	-
5	W11266076		Sensor, Defrost   (Replaces: W11263884)				$ 109.50
6	W11359415		Fuse, Temperature				$ 98.35
7	W11359416		Defrost Holder And Heater		Appelez-nous	-
8	W11312450		Cover, Led		Appelez-nous	-
9	W11263841		Led Assembly   (Replaces: W11312453)				$ 142.35
10	W11532987		Kick, Plate				$ 77.74
11	W11371097		Screw		Appelez-nous	-
12	W11632375		Assembly, Glass Tray   (Replaces: W11547448)		Appelez-nous	-
13	W11359433		Assembly, Switch Box				$ 137.60
14	W11538058		Tray, Glass				$ 92.33
15	W11632316		Assembly, Glass Tray   (Replaces: W11547451)		Appelez-nous	-
16	W10797332		Support, Shelf (left Hand)				$ 27.14
17	W10797333		Support, Shelf (right Hand)				$ 27.14
18	W10797336		Support, Shelf (left Hand)		Appelez-nous	-
19	W10797337		Support, Shelf (right Hand)		Appelez-nous	-
20	W11602203		Control, Base				$ 354.77
