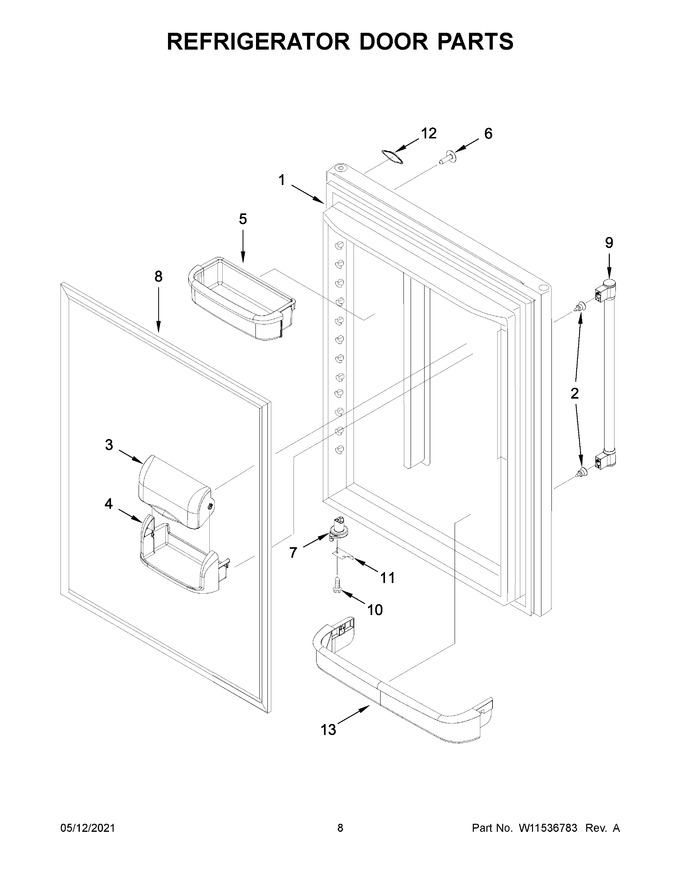

SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W11435345 | Door, Refrigerator (stainless Steel) (Replaces: W11377159) |
|
$ 815.62 | |||||
| 2 | W11449276 | Screw (Replaces: W11328753) |
|
Immediately | $ 15.35 | ||||
| 3 | WP67003637 | Door, Dairy (Replaces: 12804701SP) |
|
Immediately | $ 74.40 | ||||
| 4 | WP67001279 | Tray, Dairy (Replaces: 12369502SP) |
|
Immediately | $ 79.21 | ||||
| 5 | WPW10371194 | Bucket, Medium (Replaces: W10371194) |
|
Immediately | $ 69.51 | ||||
| 6 | WP12246610 | Plug, Button (grey) (Replaces: 12246610) |
|
Immediately | $ 7.34 | ||||
| 7 | WP12028505AP | Closure, Door (grey) (Replaces: 12028505AP) |
|
Immediately | $ 55.31 | ||||
| 8 | W10443314 | Gasket, Door (grey) |
|
Immediately | $ 314.16 | ||||
| 9 | W11102445 | Handle, Door (stainless) (Replaces: W10838129) |
|
$ 178.70 | |||||
| 10 | WP98165 | Screw (Replaces: 12990504) |
|
$ 7.71 | |||||
| 11 | W11401472 | Stop, Door (grey) (Replaces: 10447114) |
|
Immediately | $ 21.20 | ||||
| 12 | WPW10612926 | Badge (Replaces: W10612926) |
|
Immediately | $ 35.64 | ||||
| 13 | 67001019 | Retainer, Door (Replaces: 12557905) |
|
Immediately | $ 101.61 |
