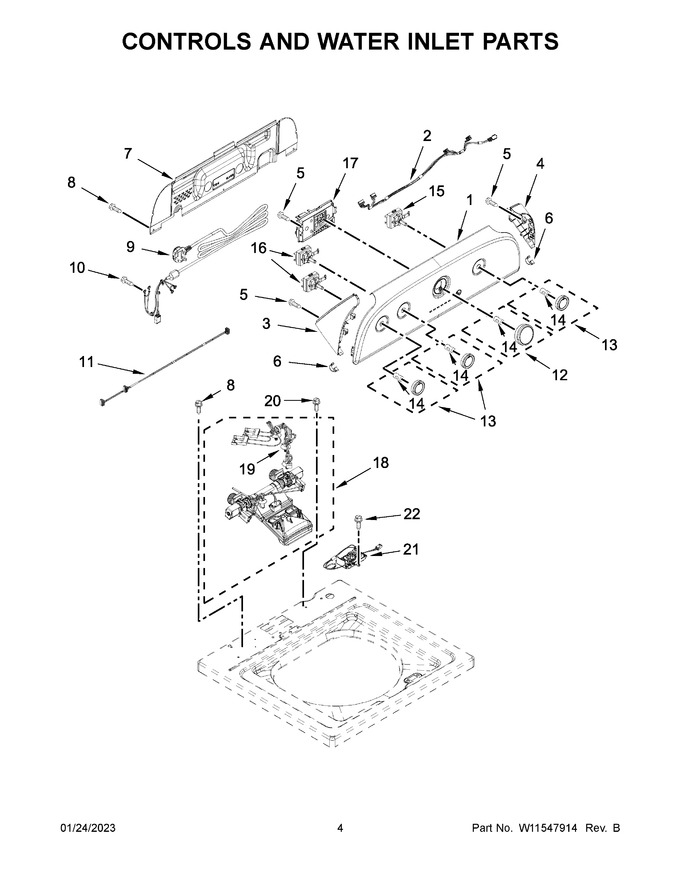

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W11370831		Panel, Console		Appelez-nous	-
2	W10786100		Harness, Jumper				$ 170.98
3	W10806902		End Cap (left) (white)		Appelez-nous	-
4	W10806901		End Cap (right) (white)		Appelez-nous	-
5	WP90767		Screw   (Replaces: 90767)			Immediately	$ 7.43
6	WP8312709		Clip, Console   (Replaces: 8312709)			Immediately	$ 14.93
7	W10552335		Panel, Console Rear Cover				$ 308.85
8	W11685943		Screw   (Replaces: W10660565)				$ 13.47
9	W11369863		Cord, Power		Appelez-nous	-
10	W10846509		Screw   (Replaces: 3400076)			Immediately	$ 7.38
11	W10694682		Harness, Upper		Appelez-nous	-
12	W11501455		Assembly, Timer Knob (white/metallic)   (Replaces: W10576634)				$ 41.20
13	W10576636		Assembly, Control Knob (white/metallic)		Appelez-nous	-
14	WP688805		Clip, Spring   (Replaces: 688805)			Immediately	$ 7.38
15	WPW10285517		Switch, Rotary Encoder (3 Position)   (Replaces: W10285517)				$ 122.27
16	WPW10285512		Switch, Rotary Encoder (4 Position)   (Replaces: W10285512)			Immediately	$ 171.42
17	W11401713		Control Unit Assembly, Machine And Motor   (Replaces: W11372888)		Appelez-nous	-
18	W11038628		Inlet Assembly, Water   (Replaces: W11026622)				$ 220.41
19	W10917060		Harness, Valve		Appelez-nous	-
20	WPW10213953		Screw   (Replaces: W10213953)			Immediately	$ 6.80
21	W11660637		Assembly, Line Filter   (Replaces: W10906192)		Appelez-nous	-
22	W11568617		Screw   (Replaces: W10567155)				$ 13.25
