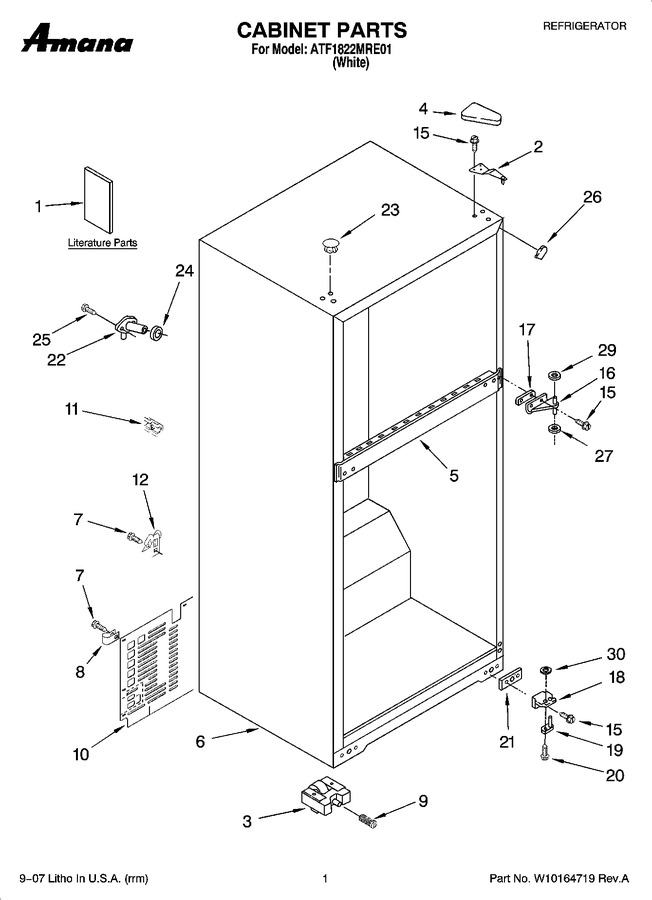

01 - Cabinet Parts
02 - Door Parts
03 - Liner Parts
04 - Unit Parts
05 - Icemaker Parts
06 - Shelf Parts, Optional Parts
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 628370 | Modular Icemaker Service Sheet |
|
- | |||||
| 1 | 677969 | Do-it-yourself Manual Ref./frz. |
|
$ 30.30 | |||||
| 1 | 2265591 | Service & Wiring Sheet |
|
- | |||||
| 1 | W10162920 | Energy Label |
|
- | |||||
| 1 | W10154917 | Use & Care Guide |
|
- | |||||
| 2 | WP2261963 | Hinge (top) (Replaces: 2261963) |
|
Immediately | $ 119.42 | ||||
| 3 | 2324094 | Roller-front |
|
$ 342.09 | |||||
| 4 | WP2213360 | Cover, Hinge (Replaces: 2213360) |
|
$ 20.19 | |||||
| 7 | WP489442 | Screw (Replaces: 489442) |
|
Immediately | $ 11.49 | ||||
| 8 | WP488366 | Clamp-tube (Replaces: 489385) |
|
$ 11.92 | |||||
| 9 | 2222100 | Screw |
|
$ 104.80 | |||||
| 10 | WP2264132 | Cover, Unit (Replaces: 2266389) |
|
$ 113.77 | |||||
| 11 | 2266506 | Spacer-back-cb |
|
$ 14.39 | |||||
| 12 | 549193 | Clamp,cord |
|
$ 14.06 | |||||
| 15 | WP489497 | Screw (Replaces: 489497) |
|
Immediately | $ 29.09 | ||||
| 16 | WP2166037 | Hinge, Center (Replaces: 2166086) |
|
$ 85.08 | |||||
| 17 | 2166043 | Shim, Hinge Center |
|
$ 69.76 | |||||
| 18 | WP2325482 | Hinge Butt (Replaces: 2221926) |
|
Immediately | $ 80.00 | ||||
| 19 | 9791682 | Hinge-pin, Bottom |
|
$ 26.60 | |||||
| 20 | WP3428970 | Screw (Replaces: 3428970) |
|
$ 11.53 | |||||
| 21 | WP2201567 | Shim, Bottom Hinge (Replaces: 2201567) |
|
Immediately | $ 8.16 | ||||
| 22 | WP2196157 | Fitting, Water Tube (Replaces: 2174760) |
|
Immediately | $ 12.59 | ||||
| 23 | WP2151652 | Hole Plug (6) (Replaces: 2201012) |
|
$ 22.87 | |||||
| 24 | WP1106508 | Seal (Replaces: 1106508) |
|
Immediately | $ 10.43 | ||||
| 25 | WP488729 | Screw (Replaces: 2262176) |
|
Immediately | $ 8.28 | ||||
| 26 | W10859322 | Corner Filler (Replaces: 2166003) |
|
$ 8.09 | |||||
| 27 | WP487576 | Washer (Replaces: 487576) |
|
Immediately | $ 10.74 | ||||
| 29 | WP489467 | Washer (Replaces: 489341) |
|
Immediately | $ 11.42 | ||||
| 30 | WP488296 | Washer (Replaces: 488296) |
|
Immediately | $ 7.55 |
