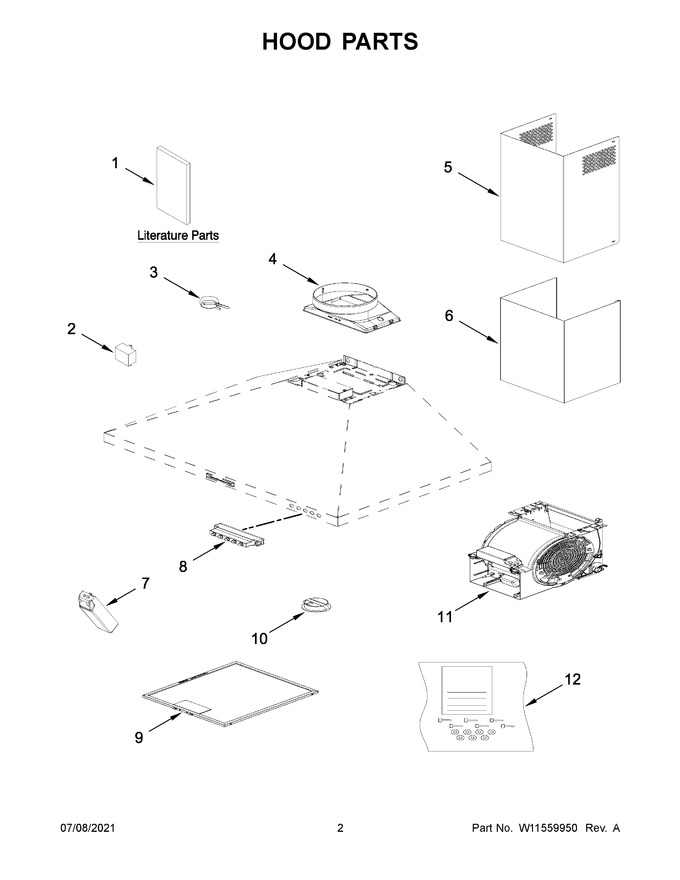

02 - Hood Parts
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W10322991 | Use & Care Guide |
|
- | |||||
| 2 | W11328673 | Capacitor (Replaces: W10735734) |
|
Immediately | $ 59.00 | ||||
| 3 | W10427011 | Filter, Noise |
|
- | |||||
| 4 | W10847841 | Damper, Hood (Replaces: W10592040) |
|
$ 140.43 | |||||
| 5 | W11417192 | Chimney, Upper (Replaces: W10350865) |
|
$ 338.23 | |||||
| 6 | W11417192 | Chimney, Lower (Replaces: W10350864) |
|
$ 338.23 | |||||
| 7 | W11186486 | Transformer (Replaces: W11185789) |
|
Immediately | $ 206.24 | ||||
| 8 | WPW10727063 | Switch, Push Button (Replaces: W10504432) |
|
$ 234.46 | |||||
| 9 | W10169961A | Filter, Grease (Replaces: W10870878) |
|
Immediately | $ 37.65 | ||||
| 10 | WP8186678 | Assembly, Light (Replaces: 8186678) |
|
$ 73.21 | |||||
| 11 | WPW10351824 | Assembly, Fan (Replaces: W10351824) |
|
$ 563.66 | |||||
| 12 | W10351826 | Hardware, Install |
|
$ 41.77 |
