01 - Cover Sheet

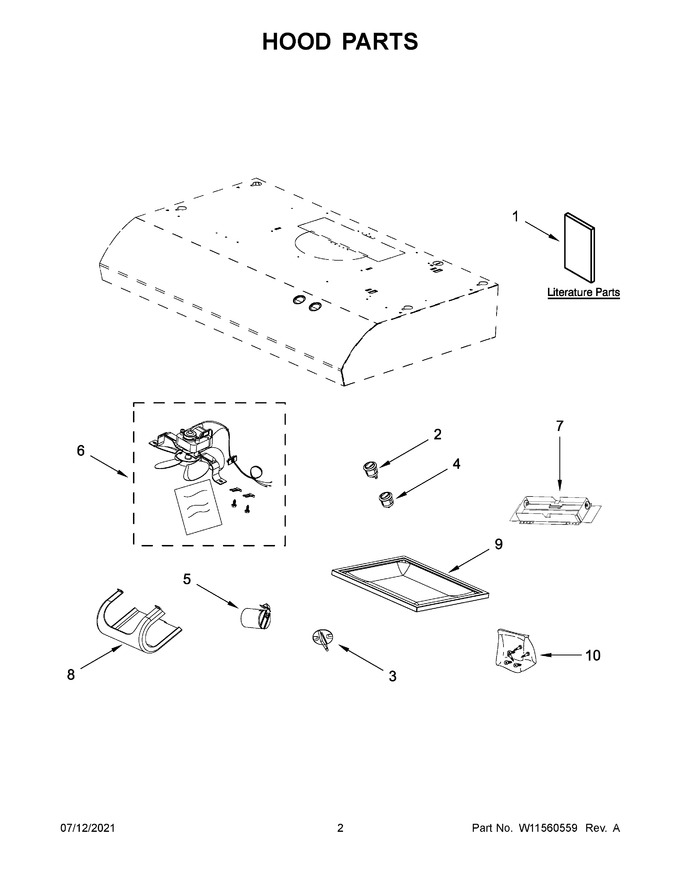

02 - Hood Parts
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W10646403 | Use And Care Guide |
|
- | |||||
| 2 | W10394523 | Switch, Light (white) |
|
- | |||||
| 3 | W10386347 | Latch, Filter |
|
$ 13.28 | |||||
| 4 | W10394557 | Switch, Fan (white) |
|
$ 74.80 | |||||
| 5 | W10910124 | Socket, Light (Replaces: W10630212) |
|
$ 75.21 | |||||
| 6 | W11105126 | Assembly, Fan Motor (Replaces: W10392502) |
|
$ 313.19 | |||||
| 7 | WPW10291572 | Damper, Hood (Replaces: W10291572) |
|
$ 176.02 | |||||
| 8 | W10386342 | Cover, Lamp |
|
$ 31.42 | |||||
| 9 | W10395127 | Filter, Grease |
|
Immediately | $ 28.89 | ||||
| 10 | W10665195 | Hardware, Installation (Replaces: W10910134) |
|
$ 148.64 | |||||
| 2A | W10394520 | Switch, Light (black) |
|
$ 78.98 | |||||
| 4A | W11740801 | Switch, Fan (black) (Replaces: W10394521) |
|
$ 22.47 |
