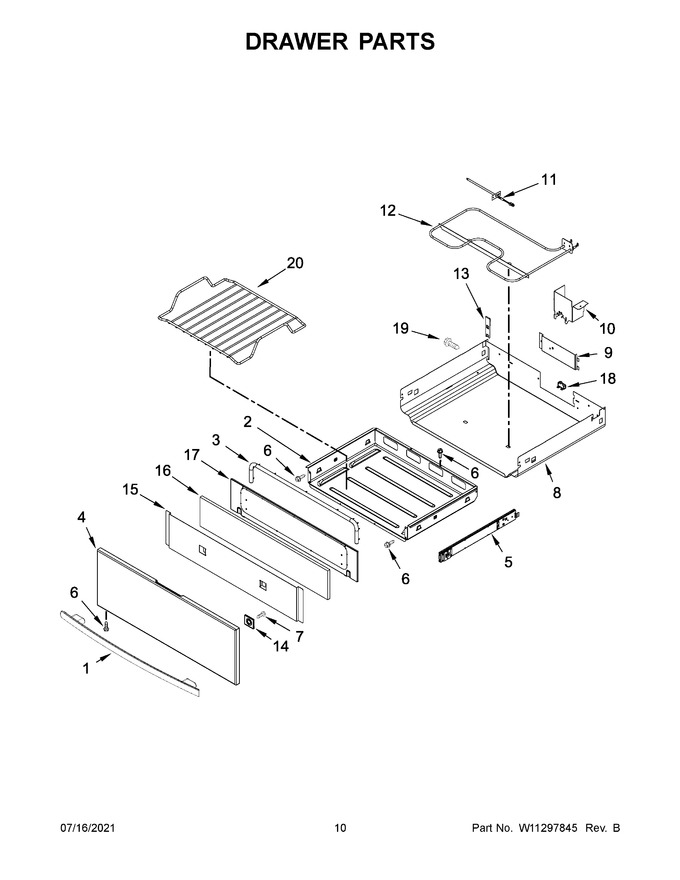

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W11195001		Assembly, Door Handle (stainless)   (Replaces: W10551013)				$ 206.51
2	W11036176		Drawer,bake   (Replaces: W10757442)				$ 196.79
3	W10550987		Seal, Drawer				$ 153.32
4	W10541958		Panel, Drawer Front (stainless)				$ 178.28
5	W11670722		Slide, Drawer (left)   (Replaces: W10921904)			Immediately	$ 170.45
6	W11169708		Screw   (Replaces: 3196560)				$ 13.36
7	WP3400882		Screw   (Replaces: 3400882)			Immediately	$ 6.80
8	W10634260		Enclosure, Warming			Immediately	$ 188.12
9	W10727084		Cover, Gas Valve				$ 78.82
10	W10634259		Cover, Wire				$ 79.06
11	W11676788		Sensor   (Replaces: W10720530)			Immediately	$ 48.34
12	W10541944		Element, Bake			Immediately	$ 148.37
13	W10551019		Cover, Side				$ 80.17
14	3823F01745		Spacer, Handle		Appelez-nous	-
15	W10551018		Insulation, Drawer Front				$ 101.55
16	W11688515		Insulation, Drawer   (Replaces: W10550982)				$ 107.58
17	W10541947		Panel, Front Inner				$ 154.47
18	W10729897		Fuse, Thermal				$ 35.50
19	W11169708		Screw   (Replaces: 3196560)				$ 13.36
20	W10602493		Rack, Bake Drawer				$ 557.15
5A	W11670723		Slide, Drawer (right)   (Replaces: W10921905)			Immediately	$ 170.45

    View Diagram in Separate Window       Print Part List
