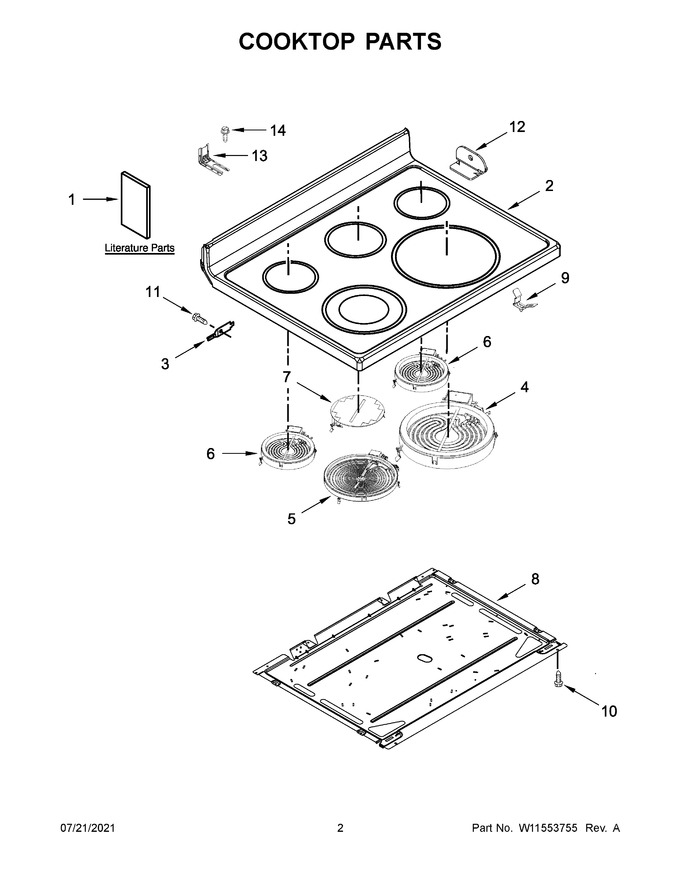

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W11432242		Owners Manual		Appelez-nous	-
2	W10691698		Cooktop (black)   (Replaces: W10655916)			Immediately	$ 531.52
3	WP3195060		Hinge, Cooktop   (Replaces: 3195060)			Immediately	$ 11.86
4	WPW10251108		Element (3200w) (right Front)   (Replaces: W10251108)			Immediately	$ 307.76
5	WPW10535150		Element (3000w, 1000/2000w) (left Front)   (Replaces: W10535150)			Immediately	$ 347.49
6	W11171119		Element (1200w) (left Rear, Right Rear)   (Replaces: W10248261)			Immediately	$ 203.06
7	W11041453		Element, Warm Zone (center)   (Replaces: W10799048)				$ 119.66
8	W11728329		Pan, Radiant Element   (Replaces: W10691223)			Immediately	$ 129.14
9	WPW10225448		Spring, Element   (Replaces: W10225448)			Immediately	$ 9.36
10	WPW10241367		Screw   (Replaces: W10241367)				$ 6.27
11	W11233072		Screw   (Replaces: 3196178)			Immediately	$ 13.25
12	W10607641		Bracket, Cooktop (left)				$ 30.17
13	W11839019		Bracket, Anti-tip   (Replaces: W11379945)			Immediately	$ 25.69
14	7101P48560		Screw, Anti-tip Kit		Appelez-nous	-
12A	W10607642		Bracket, Cooktop (right)		Appelez-nous	-
1A	W11401667		Tech Sheet		Appelez-nous	-
1B	W11469630		Quick Start Guide		Appelez-nous	-
NI	NP		Following Parts Not Illustrated		Appelez-nous	-
NI	W11134592		Harness, Warm Zone				$ 105.53
NI	W11212183		Harness, Sensor				$ 212.08
NI	W11188418		Harness, Cooktop (left)				$ 201.03
NI	W11188421		Harness, Cooktop (right)			Immediately	$ 192.83
NI	W11454302		Harns-wire				$ 188.53
