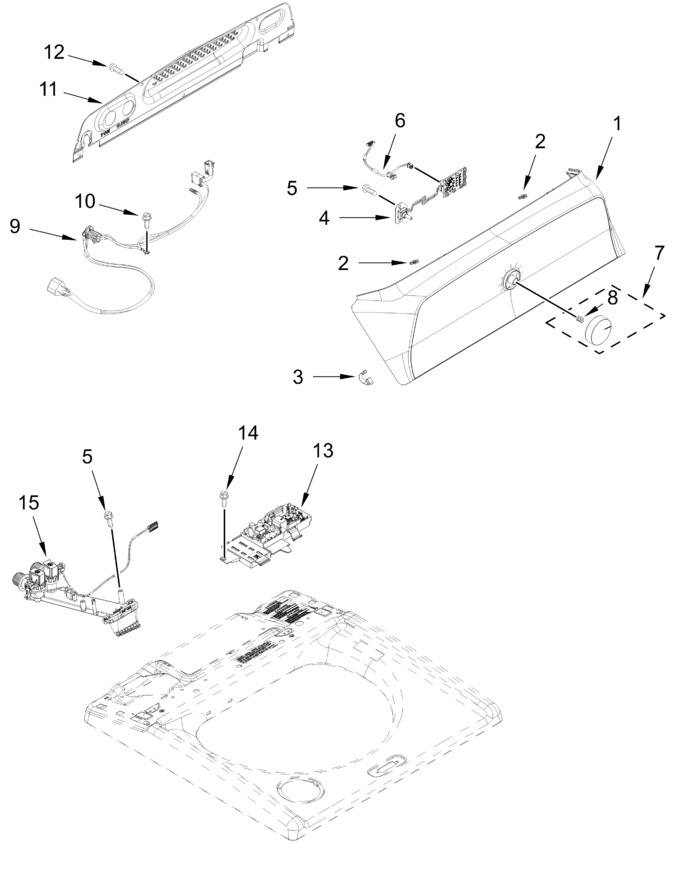

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W11427157 | Console Assembly |
|
- | |||||
| 2 | W11213336 | U-nut (Replaces: W10298336) |
|
$ 7.32 | |||||
| 3 | WP8312709 | Clip, Console (Replaces: 8312709) |
|
Immediately | $ 14.93 | ||||
| 4 | W11481116 | Encoder Assembly (Replaces: W11374900) |
|
Immediately | $ 69.75 | ||||
| 5 | WP9740848 | Screw (Replaces: 9740848) |
|
Immediately | $ 7.72 | ||||
| 6 | W11665945 | Harness, Hmi (Replaces: W11335101) |
|
$ 20.65 | |||||
| 7 | ARI5AF0C6969D5CDC420A8C1414AAC0BBC5 | Knob, Assembly |
|
- | |||||
| 8 | WP8536939 | Clip, Spring (Replaces: 8536939) |
|
Immediately | $ 7.38 | ||||
| 9 | W11513259 | Power Cord Assembly (Replaces: W11335102) |
|
Immediately | $ 38.10 | ||||
| 10 | W10846509 | Screw (Replaces: 3400076) |
|
Immediately | $ 7.38 | ||||
| 11 | W10611544 | Panel, Console Rear Cover |
|
$ 307.11 | |||||
| 12 | W11685943 | Screw (Replaces: W10660565) |
|
$ 13.47 | |||||
| 13 | W11513246 | Control Unit Assembly, Machine And Motor (Replaces: W11428994) |
|
Immediately | $ 316.40 | ||||
| 14 | WP693995 | Screw (Replaces: 693995) |
|
Immediately | $ 6.80 | ||||
| 15 | W11513255 | Water Inlet Assembly (complete) (Replaces: W11385821) |
|
Immediately | $ 89.22 | ||||
| W11406489 | Knob Assembly (chrome) |
|
$ 44.60 |
