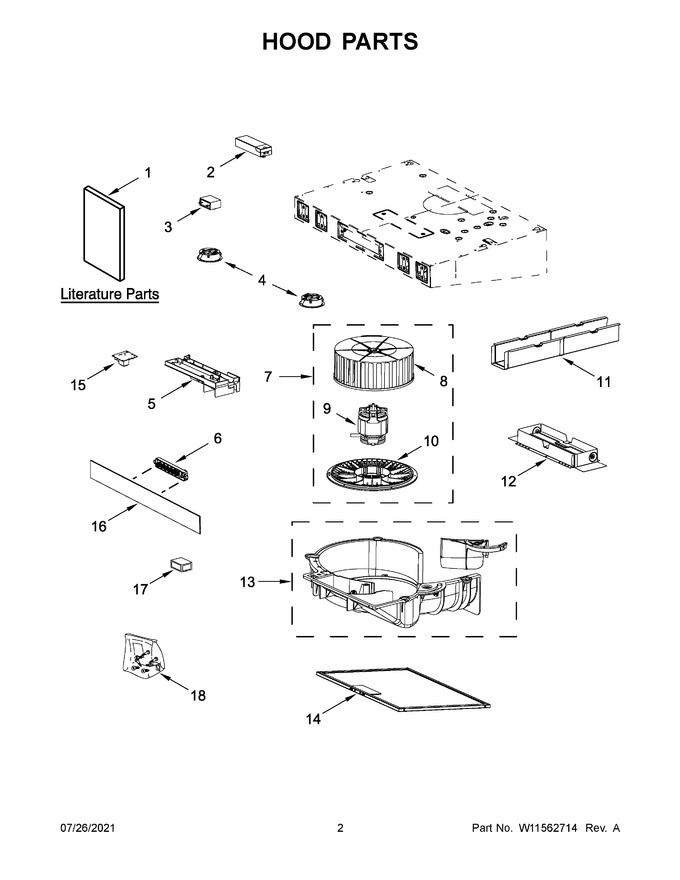

02 - Hood Parts


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W10907171		Use And Care Guide		Appelez-nous	-
2	W11282989		Driver, Led   (Replaces: W11281878)				$ 237.02
3	W11099801		Capacitor		Appelez-nous	-
4	W11794237		Light, Led   (Replaces: W10862081)			Immediately	$ 76.20
5	W11099745		Mount, Control				$ 91.90
6	W11100661		Control, Electronic   (Replaces: W11099804)				$ 247.18
7	W11100658		Assembly, Blower   (Replaces: W11099803)				$ 316.61
8	W11775244		Blade, Fan   (Replaces: W11099714)				$ 111.25
9	W11099800		Motor, Fan		Appelez-nous	-
10	W11099743		Grille, Blower				$ 45.40
11	W11099746		Box, Junction		Appelez-nous	-
12	WPW10291572		Damper, Hood   (Replaces: W10291572)				$ 176.02
13	W11099741		Conveyor, Motor			Immediately	$ 291.07
14	W11100656		Filter, Grease (30" Model Only)   (Replaces: W11099795)			Immediately	$ 79.89
15	W11100663		Variator, Electronic   (Replaces: W11099805)				$ 247.18
16	W11432212		Glass, Capacitive (30" Model Only)   (Replaces: W11099808)			Immediately	$ 360.97
17	W11562633		Filter, Noise		Appelez-nous	-
18	W11099760		Hardware, Installation				$ 59.70
14A	W11100653		Filter, Grease (36" Model Only)   (Replaces: W11099755)				$ 90.53
16A	W11099807		Glass, Capacitive (36" Model Only)		Appelez-nous	-
