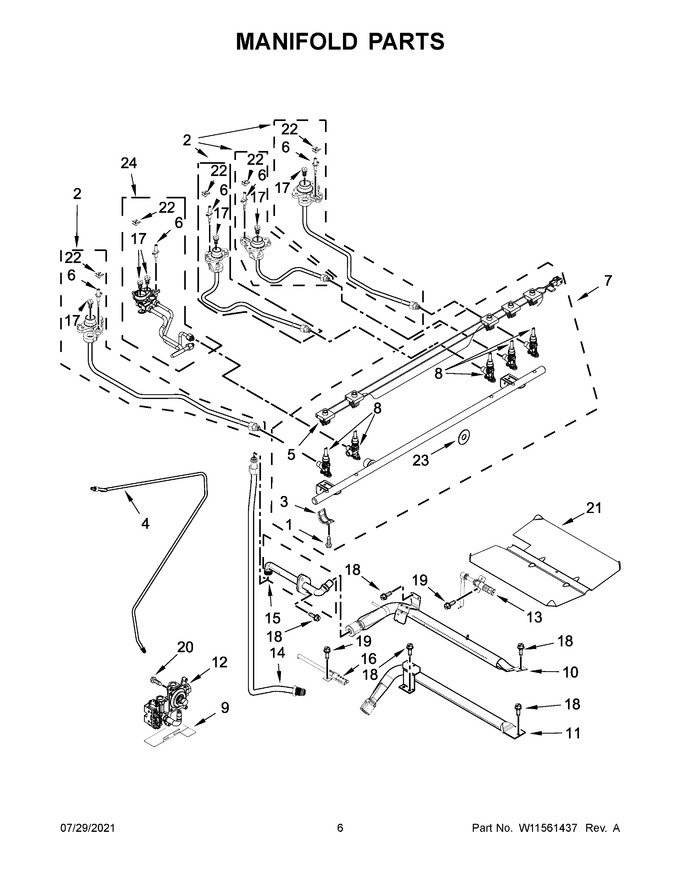

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W11666001 | Screw (Replaces: W10246216) |
|
$ 12.85 | |||||
| 2 | W10552131 | Assembly, Orifice (15k) (right Front) |
|
$ 183.76 | |||||
| 3 | W10949105 | Bracket, Saddle Valve (Replaces: W10295996) |
|
$ 20.48 | |||||
| 4 | W10432252 | Tube, Gas Supply |
|
$ 74.44 | |||||
| 5 | W10468433 | Harness, Spark Switch |
|
Immediately | $ 107.00 | ||||
| 6 | W11220383 | Electrode (right Rear) (Replaces: W10496872) |
|
Immediately | $ 59.56 | ||||
| 7 | W11602206 | Manifold Assembly (Replaces: W10790618) |
|
Immediately | $ 287.19 | ||||
| 8 | W11163975 | Valve, Gas (center & Right Rear) (Replaces: W10566050) |
|
Immediately | $ 238.25 | ||||
| 9 | W10224921 | Bracket, Aegis |
|
- | |||||
| 10 | W11676566 | Burner, Broiler (Replaces: W10439242) |
|
$ 85.48 | |||||
| 11 | W10764654 | Burner, Bake (Replaces: W10680035) |
|
Immediately | $ 82.49 | ||||
| 12 | W10861656 | Valve, Regulator (Replaces: W10554066) |
|
Immediately | $ 301.09 | ||||
| 13 | WPW10324262 | Igniter, Bake (Replaces: W10324262) |
|
Immediately | $ 98.85 | ||||
| 14 | W10306050 | Tube, Broil Supply (broiler Fitting To Valve) |
|
$ 170.84 | |||||
| 15 | W10583216 | Fitting, Broil Burner |
|
$ 86.27 | |||||
| 16 | WPW10333842 | Electrode, Broil (Replaces: W10333842) |
|
Immediately | $ 93.71 | ||||
| 17 | W10821182 | Orifice (1.8mm) (right Front) (Replaces: W10434277) |
|
Immediately | $ 84.11 | ||||
| 18 | W11233072 | Screw (Replaces: 3196178) |
|
Immediately | $ 13.25 | ||||
| 19 | W11684507 | Screw (Replaces: 3196385) |
|
$ 12.84 | |||||
| 20 | WP3400016 | Screw (Replaces: 3400016) |
|
$ 7.55 | |||||
| 21 | 3601P33645 | Baffle, Broil Burner |
|
- | |||||
| 22 | W10575401 | Clip, Electrode Spring (right Front, Right Rear, And Left Front) |
|
Immediately | $ 10.17 | ||||
| 23 | W10140571 | Seal, Switch Shaft |
|
$ 6.93 | |||||
| 24 | W10552135 | Assembly, Orifice (19k) |
|
$ 230.02 | |||||
| 17A | W11752198 | Orifice (9.2k) (right Rear) (Replaces: W10657949) |
|
$ 29.97 | |||||
| 17B | W10819958 | Orifice (1.2k) (left Front) (Replaces: W10256132) |
|
$ 87.99 | |||||
| 17C | W10566082 | Orifice (19k) (left Front) |
|
Immediately | $ 87.83 | ||||
| 17D | W10657947 | Orifice (8k) (center) |
|
$ 20.16 | |||||
| 17E | W10756981 | Orifice (5k) (left Rear) (Replaces: W10515054) |
|
Immediately | $ 16.12 | ||||
| 2A | W10552130 | Assembly, Orifice (9.2k) (right Rear) |
|
$ 183.08 | |||||
| 2B | W10552132 | Assembly, Orifice (5k) (left Rear) |
|
$ 163.76 | |||||
| 2C | W10552137 | Assembly, Orifice (8k) (center) |
|
$ 198.58 | |||||
| 6A | W11447374 | Electrode (right Front) (Replaces: W10496870) |
|
Immediately | $ 41.49 | ||||
| 6B | W11050467 | Electrode (left Rear) (Replaces: W10464799) |
|
Immediately | $ 59.56 | ||||
| 6C | W11611678 | Electrode (left Front) (Replaces: W10496874) |
|
Immediately | $ 29.68 | ||||
| 8A | W11223016 | Valve, Gas (left Front & Right Front) (Replaces: W10566042) |
|
$ 238.25 | |||||
| 8B | W10831589 | Valve, Gas (left Rear) |
|
$ 250.39 | |||||
| 8C | W10566038 | Valve, Gas (dual) (left Front) |
|
$ 309.70 | |||||
| NI | NP | Following Parts Not Illustrated |
|
- | |||||
| NI | WPW10182767 | Tie, Manifold Wire (Replaces: W10182767) |
|
$ 6.57 | |||||
| NI | W10909678 | Kit, Lp Conversion (Replaces: W10681410) |
|
Immediately | $ 109.35 | ||||
| NI | W11087486 | Lp Conversion Kit (bake/broil) (Replaces: W10566535) |
|
Immediately | $ 106.16 |
