SELECT A DIAGRAM
01 - Cover Sheet

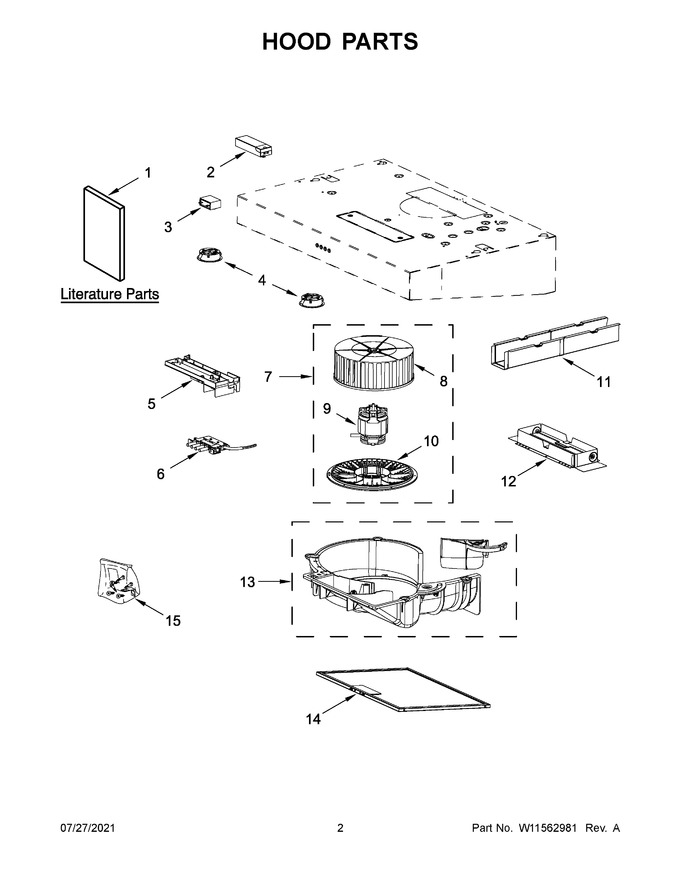

02 - Hood Parts
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W10907133 | Use And Care Guide |
|
- | |||||
| 2 | W11282989 | Driver, Led (Replaces: W11281878) |
|
$ 237.02 | |||||
| 3 | W11099740 | Capacitor |
|
$ 55.52 | |||||
| 4 | W11794237 | Light, Led (Replaces: W10862081) |
|
Immediately | $ 76.20 | ||||
| 5 | W11099745 | Mount, Control |
|
$ 91.90 | |||||
| 6 | W11100652 | Control, Electronic (Replaces: W11099719) |
|
$ 192.16 | |||||
| 7 | W11100651 | Assembly, Fan Motor (Replaces: W11099742) |
|
Immediately | $ 338.24 | ||||
| 8 | W11775244 | Blade, Fan (Replaces: W11099714) |
|
$ 111.25 | |||||
| 9 | W11099715 | Motor, Fan |
|
Immediately | $ 326.77 | ||||
| 10 | W11099743 | Grille, Blower |
|
$ 45.40 | |||||
| 11 | W11099746 | Box, Junction |
|
- | |||||
| 12 | WPW10291572 | Damper, Hood (Replaces: W10291572) |
|
$ 176.02 | |||||
| 13 | W11099741 | Conveyor, Motor |
|
Immediately | $ 291.07 | ||||
| 14 | W11100647 | Filter, Grease (24" Model Only) (Replaces: W11099718) |
|
$ 66.01 | |||||
| 15 | W11099717 | Hardware, Installation |
|
$ 79.49 |
