01 - Cover Sheet

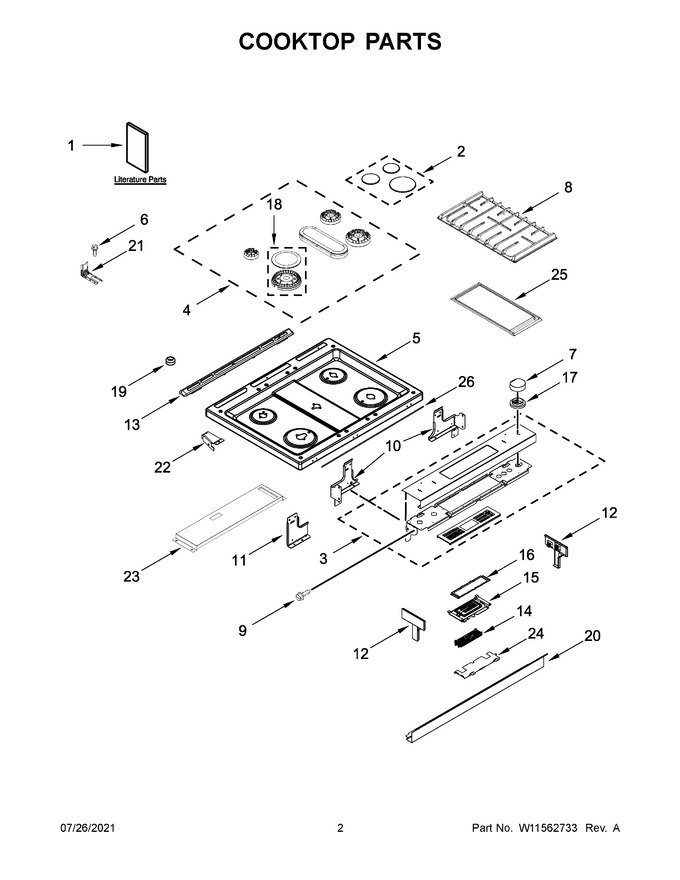

02 - Cooktop Parts
03 - Chassis Parts
04 - Manifold Parts
05 - Door Parts
06 - Drawer Parts
07 - Optional Parts (not Included)
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W11399173 | Use And Care Guide |
|
- | |||||
| 2 | W11834855 | Burner Cap Kit (black (set Of 3) (left Rear, Right Front, Right Rear)) (Replaces: W11367440) |
|
- | |||||
| 3 | W10913685 | Console (stainless) (Replaces: W10901118) |
|
$ 730.75 | |||||
| 4 | W11834876 | Burner Kit (set Of 5) (Replaces: W11367105) |
|
Immediately | $ 257.45 | ||||
| 5 | W11445310 | Cooktop (stainless) (Replaces: W11117940) |
|
$ 420.47 | |||||
| 6 | 7101P48560 | Screw, Anti-tip Kit |
|
- | |||||
| 7 | W10872674 | Knob (stainless (left Front)) (Replaces: W10786064) |
|
Immediately | $ 60.34 | ||||
| 8 | W11241056 | Set, Grate (black) (Replaces: W11188538) |
|
$ 368.89 | |||||
| 9 | WP3196557 | Screw (Replaces: 3196169) |
|
Immediately | $ 7.16 | ||||
| 10 | W10289170 | Support, Cooktop (left) |
|
$ 27.05 | |||||
| 11 | W10598048 | Bracket, Console (center) |
|
$ 23.16 | |||||
| 12 | W10555937 | Endcap (stainless (left)) |
|
$ 61.16 | |||||
| 13 | W11170796 | Vent, Trim Top (stainless) (Replaces: W10636529) |
|
Immediately | $ 131.18 | ||||
| 14 | W11099784 | Control, Mrc2 (Replaces: W10759278) |
|
Immediately | $ 474.88 | ||||
| 15 | W11128223 | Assembly, Display (Replaces: W10759323) |
|
Immediately | $ 529.17 | ||||
| 16 | W10555923 | Bracket, User Interface |
|
$ 96.69 | |||||
| 17 | W10814133 | Bezel (stainless (kit Of 5)) (Replaces: W10785119) |
|
Immediately | $ 102.04 | ||||
| 18 | W11443594 | Burner Kit (left Front) (Replaces: W11366282) |
|
Immediately | $ 148.74 | ||||
| 19 | W11690600 | Bumper (Replaces: W10854253) |
|
Immediately | $ 13.42 | ||||
| 20 | W10743276 | Console, Lower Panel (stainless) |
|
$ 78.01 | |||||
| 21 | W11502257 | Bracket, Anti-tip (Replaces: W11379947) |
|
Immediately | $ 20.73 | ||||
| 22 | W10162253 | Brace, Corner (left) |
|
$ 66.72 | |||||
| 23 | W11355689 | Keypad Shield |
|
$ 20.38 | |||||
| 24 | W10558372 | Bracket, Control |
|
$ 22.59 | |||||
| 25 | W10432544 | Griddle |
|
Immediately | $ 59.79 | ||||
| 26 | W10802441 | Gasket, Console/ Cooktop (Replaces: W10612719) |
|
Immediately | $ 20.46 | ||||
| 10A | W10289169 | Support, Cooktop (right) |
|
$ 27.05 | |||||
| 12A | W10555940 | Endcap (stainless (right)) |
|
$ 61.16 | |||||
| 1A | W11399181 | Installation Instructions |
|
- | |||||
| 1B | W11326871 | Tech Sheet |
|
- | |||||
| 1C | W10400066 | Quick Start Guide (english) |
|
- | |||||
| 1D | W10400067 | Quick Start Guide (french) |
|
- | |||||
| 22A | W10162252 | Brace, Corner (right) |
|
$ 70.73 | |||||
| 7A | W10872668 | Knob (stainless (right Front, Right Rear, Left Rear And Center)) (Replaces: W10786065) |
|
Immediately | $ 118.35 | ||||
| NI | NP | Following Parts Not Illustrated |
|
- | |||||
| NI | W10580316 | Harness, Bake Drawer |
|
Immediately | $ 167.12 | ||||
| NI | W11025616 | Harness, Keypad (Replaces: W10575120) |
|
Immediately | $ 67.76 | ||||
| NI | W11176109 | Harness, Display (Replaces: W10598169) |
|
Immediately | $ 202.46 | ||||
| NI | W11454495 | Harness, Main |
|
- | |||||
| NI | 16515 | Clip, Harness (Replaces: 313438) |
|
$ 18.48 | |||||
| NI | 3400964 | Clip, Wire (Replaces: 3196520) |
|
$ 80.10 | |||||
| NI | W11175842 | Suppressor (Replaces: W10653092) |
|
Immediately | $ 107.99 |
