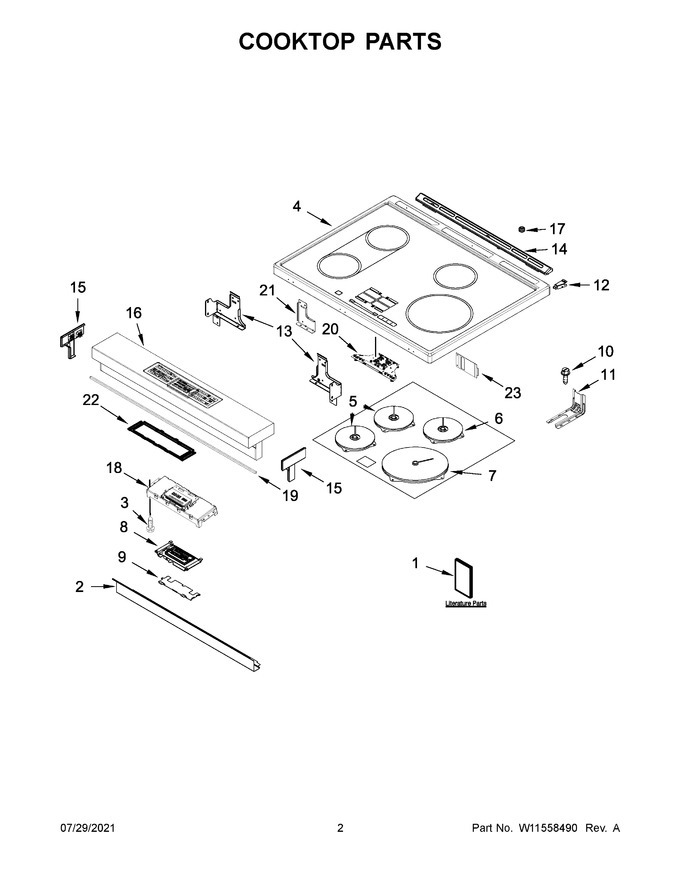

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W10744014 | Installation, Instructions |
|
- | |||||
| 2 | W10743281 | Bracket, Mounting (stainless) |
|
- | |||||
| 3 | W11233072 | Screw (Replaces: 3196178) |
|
Immediately | $ 13.25 | ||||
| 4 | W10751485 | Cooktop (black) (Replaces: W10536318) |
|
$ 897.60 | |||||
| 5 | W11672688 | Element (left Front And Left Rear) (Replaces: W10636723) |
|
Immediately | $ 233.38 | ||||
| 6 | WPW10410580 | Hotplate (right Rear) (Replaces: W10410580) |
|
$ 230.27 | |||||
| 7 | WPW10410578 | Element (right Front) (Replaces: W10410578) |
|
$ 277.41 | |||||
| 8 | W11120573 | Assembly, Display (Replaces: W10759324) |
|
Immediately | $ 460.91 | ||||
| 9 | W10558372 | Bracket, Control |
|
$ 22.59 | |||||
| 10 | 7101P48560 | Screw, Anti-tip Kit |
|
- | |||||
| 11 | W11502257 | Bracket, Anti-tip (Replaces: W11379947) |
|
Immediately | $ 20.73 | ||||
| 12 | W10162253 | Brace, Corner (left) |
|
$ 66.72 | |||||
| 13 | W10289169 | Support, Cooktop (right) |
|
$ 27.05 | |||||
| 14 | W11170796 | Vent, Trim Top (stainless) (Replaces: W10636529) |
|
Immediately | $ 131.18 | ||||
| 15 | W10557751 | Endcap (stainless (left)) |
|
$ 151.97 | |||||
| 16 | W11043339 | Console (stainless) (Replaces: W10901072) |
|
$ 738.65 | |||||
| 17 | W11104127 | Bumper (Replaces: W10664705) |
|
Immediately | $ 19.77 | ||||
| 18 | W11296051 | Control, Electronic (maxwell) (Replaces: W11254198) |
|
$ 462.66 | |||||
| 19 | W10802441 | Gasket, Console/ Cooktop (Replaces: W10612719) |
|
Immediately | $ 20.46 | ||||
| 20 | W11677629 | User, Interface (Replaces: W10808072) |
|
Immediately | $ 509.09 | ||||
| 21 | W10598048 | Bracket, Console (center) |
|
$ 23.16 | |||||
| 22 | W10557780 | Bracket , Control |
|
$ 33.01 | |||||
| 23 | W11158783 | Shield, Keypad |
|
- | |||||
| 12A | W10162252 | Brace, Corner (right) |
|
$ 70.73 | |||||
| 13A | W10289170 | Support, Cooktop (left) |
|
$ 27.05 | |||||
| 15A | W10557754 | Endcap (stainless (right)) |
|
$ 151.97 | |||||
| 1A | W10896673 | Use And Care Guide |
|
- | |||||
| 1B | W11382121 | Tech Sheet |
|
- | |||||
| 1C | W10400064 | Quick Start Guide |
|
- | |||||
| 1D | W10400065 | Quick Start Guide (french) |
|
- | |||||
| NI | NP | Following Parts Not Illustrated |
|
- | |||||
| NI | W11454514 | Harness, Main |
|
$ 227.18 | |||||
| NI | W11226775 | Harness, Bake Drawer (Replaces: W11172530) |
|
$ 214.74 | |||||
| NI | W11226772 | Harness, Display (Replaces: W11172426) |
|
Immediately | $ 213.24 | ||||
| NI | W11025616 | Harness, Keypad (Replaces: W10575120) |
|
Immediately | $ 67.76 | ||||
| NI | 3400964 | Clip, Wire (Replaces: 3196520) |
|
$ 80.10 |
