View Diagram in Separate Window
Print Part List
SELECT A DIAGRAM
01 - Cover Sheet
02 - Cooktop Parts
03 - Chassis Parts
04 - Blower Parts
05 - Door Parts
06 - Drawer Parts
07 - Optional Parts (not Included)
SELECT A DIAGRAM
New Model Search:

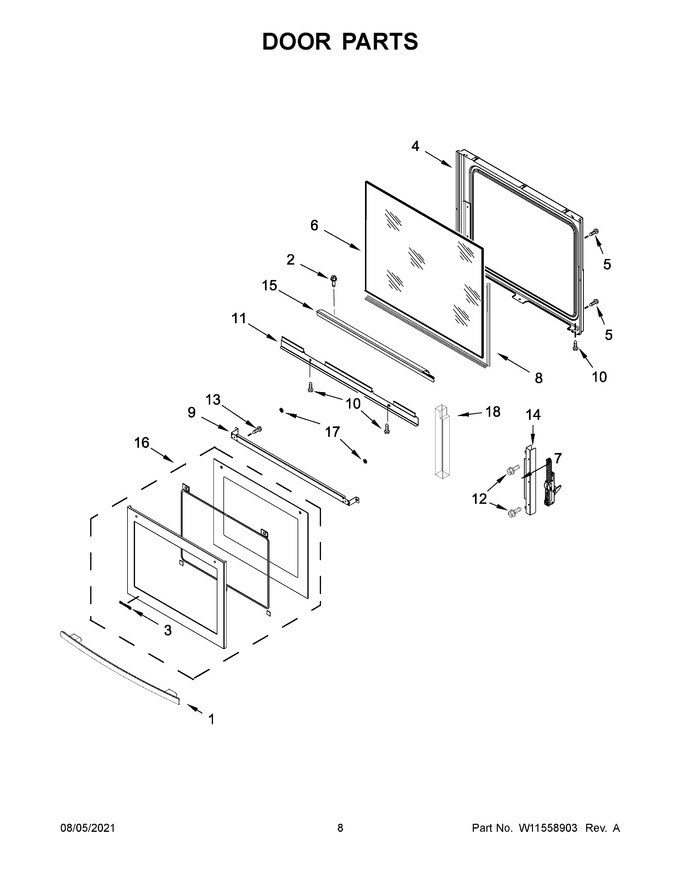

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W11195001 | Assembly, Door Handle (stainless) (Replaces: W10551013) |
|
$ 206.51 | |||||
| 2 | W11245710 | Screw (Replaces: 9780274) |
|
Immediately | $ 13.28 | ||||
| 3 | WPW10214168 | Badge (stainless) (Replaces: W10214168) |
|
$ 77.36 | |||||
| 4 | W10902192 | Liner, Door (Replaces: W10826568) |
|
$ 301.54 | |||||
| 5 | WPW10031790 | Screw (Replaces: W10031790) |
|
Immediately | $ 7.87 | ||||
| 6 | W11339500 | Glass, Inner (Replaces: W11223202) |
|
$ 154.05 | |||||
| 7 | W11226493 | Hinge, Slow Close (Replaces: W10885516) |
|
$ 103.49 | |||||
| 8 | W11673273 | Glass Spacer (Replaces: W11379948) |
|
Immediately | $ 27.94 | ||||
| 9 | W10541911 | Bracket, Glass Upper Handle |
|
Immediately | $ 35.93 | ||||
| 10 | WP355214 | Screw (Replaces: W10327235) |
|
Immediately | $ 7.92 | ||||
| 11 | W10813140 | Rail, Horizontal Support |
|
Immediately | $ 159.49 | ||||
| 12 | W10777162 | Screw (Replaces: W10031780) |
|
Immediately | $ 7.43 | ||||
| 13 | WP8533988 | Screw (Replaces: W11091878) |
|
Immediately | $ 7.90 | ||||
| 14 | W11744483 | Rail, Vertical Support (Replaces: W10813139) |
|
Immediately | $ 68.57 | ||||
| 15 | W11025120 | Scoop, Door (stainless) (Replaces: W10551024) |
|
$ 110.71 | |||||
| 16 | W10541871 | Door, Complete (stainless) |
|
- | |||||
| 17 | W11676355 | Washer, Door (Replaces: W10319024) |
|
Immediately | $ 13.33 | ||||
| 18 | W11025151 | Insulation, Door (Replaces: W10766562) |
|
$ 198.50 |
