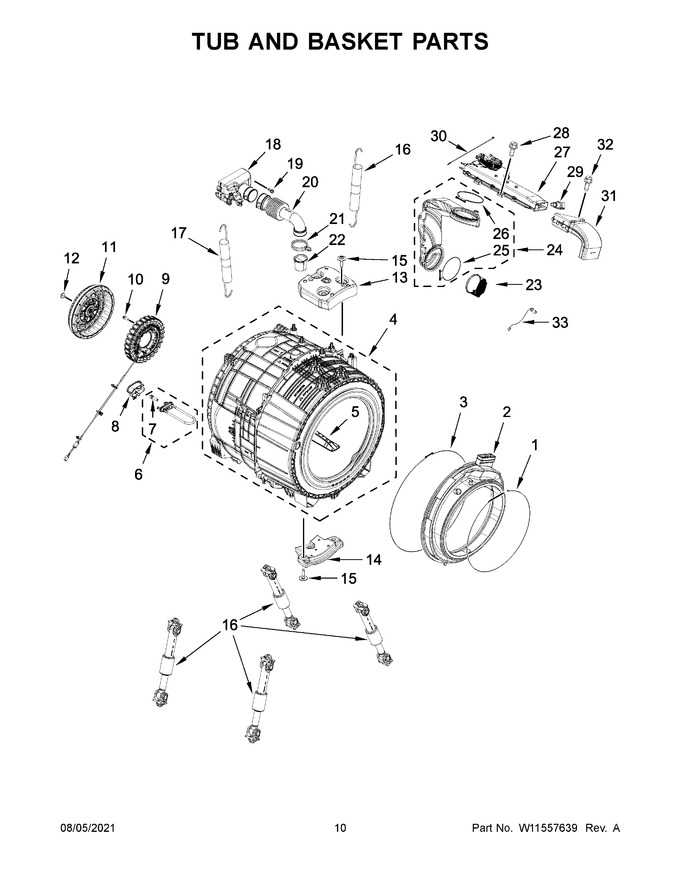

06 - Tub And Basket Parts
07 - Optional Parts (not Included)
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W11266654 | Retainer, Front Panel To Bellow (Replaces: W10818945) |
|
Immediately | $ 24.25 | ||||
| 2 | W11497953 | Bellow (Replaces: W11391008) |
|
Immediately | $ 266.55 | ||||
| 3 | W11314649 | Retainer, Bellow To Tub (Replaces: W11048199) |
|
Immediately | $ 21.78 | ||||
| 4 | W11287253 | Assembly, Tub And Drum (Replaces: W11459591) |
|
Immediately | $ 737.56 | ||||
| 5 | W11460395 | Baffle, Drum (Replaces: W11198668) |
|
Immediately | $ 101.28 | ||||
| 6 | W11314664 | Assembly, Heater (Replaces: W10918779) |
|
Immediately | $ 277.44 | ||||
| 7 | W11314664 | Sensor, Ntc (Replaces: W10919909) |
|
Immediately | $ 277.44 | ||||
| 8 | W11314776 | Shield, Heater (Replaces: W10909418) |
|
$ 85.46 | |||||
| 9 | W11354541 | Stator, Motor (Replaces: W11261207) |
|
Immediately | $ 392.36 | ||||
| 10 | W11314661 | Screw, Stator (Replaces: W11035597) |
|
$ 13.27 | |||||
| 11 | W11314361 | Rotor, Motor (Replaces: W10916241) |
|
Immediately | $ 180.16 | ||||
| 12 | W11557803 | Screw, Rotor (Replaces: W11354072) |
|
Immediately | $ 10.38 | ||||
| 13 | W11314650 | Counterweight, Top (Replaces: W11209370) |
|
Immediately | $ 146.90 | ||||
| 14 | W11607191 | Counterweight, Bottom (Replaces: W11279416) |
|
$ 114.74 | |||||
| 15 | W11314651 | Screw, Counterweight (Replaces: W11235083) |
|
Immediately | $ 13.36 | ||||
| 16 | W11316766 | Damper Assembly (Replaces: W11094464) |
|
Immediately | $ 144.85 | ||||
| 17 | W11771999 | Spring, Suspension (Replaces: W10896675) |
|
Immediately | $ 15.16 | ||||
| 18 | W11318807 | Enclosure, Vent/fan (Replaces: W10919153) |
|
$ 164.03 | |||||
| 19 | W11230114 | Screw (Replaces: 8540513) |
|
$ 12.55 | |||||
| 20 | W11316247 | Hose, Ventilation (Replaces: W11131396) |
|
Immediately | $ 32.06 | ||||
| 21 | WP371502 | Clamp, Hose (Replaces: 371507) |
|
$ 11.08 | |||||
| 22 | W11557921 | Deflector, Vent Port (Replaces: W11495086) |
|
Immediately | $ 15.10 | ||||
| 23 | W11497956 | Screen, Lint (Replaces: W11410755) |
|
$ 9.64 | |||||
| 24 | W11497957 | Assembly, Condenser Duct (Replaces: W11457482) |
|
Immediately | $ 188.45 | ||||
| 25 | W11318727 | Clamp, Duct To Tub (Replaces: W11166237) |
|
$ 21.62 | |||||
| 26 | W11318728 | Clamp, Duct To Dryer (Replaces: W11166238) |
|
- | |||||
| 27 | W11759047 | Assembly, Dryer Channel (Replaces: W11035507) |
|
$ 273.72 | |||||
| 28 | WPW10004910 | Screw (Replaces: W10004910) |
|
$ 7.55 | |||||
| 29 | W11712681 | Sensor, Ntc (Replaces: W11296157) |
|
$ 11.61 | |||||
| 30 | WPW10339879 | Tie, Cable (Replaces: W10339879) |
|
$ 7.47 | |||||
| 31 | W11115125 | Assembly, Duct Dryer To Bellow |
|
- | |||||
| 32 | WP489128 | Screw (Replaces: W10142728) |
|
$ 10.26 | |||||
| 33 | W11315707 | Drum Light (Replaces: W11040364) |
|
$ 108.48 |
