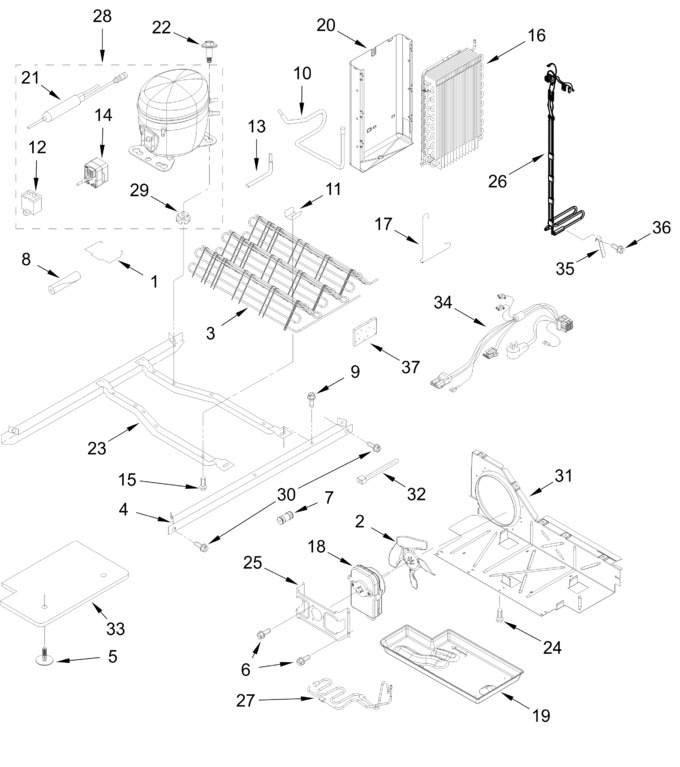

| Diagram # |
Part Number |
|
Description |
Series |
Availability |
Ships |
Price |
Add to Cart | |
| 1 |
W11577799 |
|
Strap, Bale (Replaces: W11495051) |
|
Appelez-nous
|
- |
|
|
|
| 2 |
W11458267 |
 |
Blade, Fan (Replaces: 2225834) |
|
|
Immediately |
$ 22.67 |
|
|
| 3 |
W11632924 |
|
Condenser (Replaces: W10904626) |
|
|
Immediately |
$ 213.80 |
|
|
| 4 |
W10900442 |
|
Rail, Unit Mounting |
|
Appelez-nous
|
- |
|
|
|
| 5 |
489396 |
|
Clip |
|
|
|
$ 10.13 |
|
|
| 6 |
WP8533993 |
|
Screw (Replaces: 8533993) |
|
|
|
$ 10.09 |
|
|
| 7 |
WP2300868 |
 |
Connector, Union (Replaces: W10271541) |
|
|
Immediately |
$ 33.29 |
|
|
| 8 |
W11751592 |
|
Sleeve (Replaces: 2161302) |
|
|
Immediately |
$ 19.19 |
|
|
| 9 |
WP489427 |
 |
Screw (Replaces: 489427) |
|
|
|
$ 7.06 |
|
|
| 10 |
W11386791 |
|
Tube, Suction |
|
Appelez-nous
|
- |
|
|
|
| 11 |
W10683556 |
 |
Clip, Condenser (Replaces: 2311725) |
|
|
|
$ 17.44 |
|
|
| 12 |
WPW10662129 |
 |
Capacitor (Replaces: W10590083) |
|
|
Immediately |
$ 52.97 |
|
|
| 13 |
2325479 |
|
Tube, Process |
|
Appelez-nous
|
- |
|
|
|
| 14 |
W11547180 |
 |
Start Device, Combination (start Relay And Overload) (Replaces: W11359381) |
|
|
Immediately |
$ 41.31 |
|
|
| 15 |
W11544659 |
|
Screw (Replaces: 8281232) |
|
|
|
$ 12.92 |
|
|
| 16 |
W11546692 |
|
Evaporator (Replaces: W11357918) |
|
|
|
$ 237.50 |
|
|
| 17 |
2161324 |
|
Clip, Defrost Heater |
|
Appelez-nous
|
- |
|
|
|
| 18 |
W11578915 |
 |
Motor, Condenser Fan (Replaces: W10522629) |
|
|
Immediately |
$ 77.99 |
|
|
| 19 |
W11678304 |
|
Tray, Evaporator (Replaces: W10897557) |
|
|
|
$ 51.65 |
|
|
| 20 |
W11400740 |
|
Heat Shield And Drain Pan Assembly |
|
Appelez-nous
|
- |
|
|
|
| 21 |
W11109499 |
 |
Drier (service Drier Without Dye) (Replaces: W10805035) |
|
|
Immediately |
$ 35.21 |
|
|
| 22 |
W11417341 |
|
Screw (Replaces: W10476309) |
|
|
|
$ 12.66 |
|
|
| 23 |
W10900445 |
|
Frame, Unit Mounting |
|
Appelez-nous
|
- |
|
|
|
| 24 |
WP489464 |
 |
Screw (Replaces: 489464A) |
|
|
Immediately |
$ 7.54 |
|
|
| 25 |
WP2181929 |
 |
Bracket, Fan Mounting (Replaces: 2181929) |
|
|
|
$ 11.64 |
|
|
| 26 |
W11650661 |
 |
Defrost Heater And Evaporator Fan Harness Assembly (includes Thermal Fuse) (Replaces: W11573117) |
|
|
|
$ 190.92 |
|
|
| 27 |
W11678305 |
|
Precooler Assembly, Formed (Replaces: W11189542) |
|
|
|
$ 59.97 |
|
|
| 28 |
W11580057 |
 |
Compressor (Replaces: W11369198) |
|
|
Immediately |
$ 360.14 |
|
|
| 29 |
WPW10169124 |
|
Grommet, Compressor (Replaces: 10835903) |
|
|
|
$ 6.80 |
|
|
| 30 |
489340 |
|
Bolt |
|
Appelez-nous
|
- |
|
|
|
| 31 |
W10896764 |
 |
Baffle, Air (Replaces: W10897567) |
|
|
|
$ 91.08 |
|
|
| 32 |
WPW10339879 |
 |
Tie, Wire (Replaces: 2263990) |
|
|
|
$ 7.47 |
|
|
| 33 |
W10897560 |
|
Cover Assembly, Unit (bottom) |
|
|
|
$ 91.41 |
|
|
| 34 |
W11661849 |
|
Wire Assembly, Unit (includes Power Cord) (Replaces: W11383260) |
|
Appelez-nous
|
- |
|
|
|
| 35 |
W11611126 |
|
Heat Probe (Replaces: W11399989) |
|
|
|
$ 20.84 |
|
|
| 36 |
WP489478 |
 |
Screw (Replaces: 489478) |
|
|
|
$ 7.36 |
|
|
| 37 |
W11553819 |
 |
Insulation, Sound Deadening (Replaces: 2169104) |
|
|
Immediately |
$ 13.29 |
|
|
|
ARI365422773BD6741F2B56A197441A318E |
|
(heat Loop To Drier) |
|
Appelez-nous
|
- |
|
|
|
|
ARI5DD2AEE280966FBC792DC043E4E4B750 |
|
(capillary Tube To Drier) |
|
Appelez-nous
|
- |
|
|
|
|
ARI3031A698A6B8030D731C976AE04824C1 |
|
(high Pressure Side To Compressor) |
|
Appelez-nous
|
- |
|
|
|
|
ARI9B437A9AB478C7E2DEB1C4CC29D600EE |
|
(capillary Tube To Evaporator) |
|
Appelez-nous
|
- |
|
|
|
|
ARIF479D1A0D17290EA712C859BF2E1C691 |
|
(high Side To Condenser) |
|
Appelez-nous
|
- |
|
|
|
|
ARI8F052732CB60E39F6CA094A8168A5109 |
|
(process Tube To Compressor) |
|
Appelez-nous
|
- |
|
|
|
|
ARI8A32C1888ABBFA39D41082FF95E4E485 |
|
68 Grams (r600a) |
|
Appelez-nous
|
- |
|
|
|
|
ARI169E995E2DAC0D79856EDDCD3C362715 |
|
(suction Tube To Compressor) |
|
Appelez-nous
|
- |
|
|
|
|
ARI01A2781A3F964B0DAEAA0FEA5F13BC43 |
|
(suction Line To Evaporator) |
|
Appelez-nous
|
- |
|
|
|
|
ARIA203FEA88A0C0545C484B4E1C20B771B |
|
Refrigerant Charge |
|
Appelez-nous
|
- |
|
|
|
|
ARI500F2B538D318C1E3390E0716ECE69B7 |
|
(also Order The Following Lokring⢠Parts) |
|
Appelez-nous
|
- |
|
|
|
|
ARIDC3909E200058FAFA59ECDE3D8CD23DE |
|
(suction Line To Condenser) |
|
Appelez-nous
|
- |
|
|
|
|
W11504433 |
|
6/4 Nr Ms 00 |
|
|
Immediately |
$ 26.46 |
|
|
|
W11504415 |
 |
8.5/8 Nr Ms 00 |
|
|
Immediately |
$ 23.30 |
|
|
|
W11504431 |
 |
7/5 Nr Ms 00 |
|
|
Immediately |
$ 24.42 |
|
|
|
W11504445 |
 |
5/4 Nr Ms 00 |
|
|
Immediately |
$ 26.03 |
|
|
|
W11504449 |
 |
4/2 Nr Al 00 |
|
|
Immediately |
$ 33.70 |
|
|
|
W11504447 |
 |
5/1.8 Nr Ms 00 |
|
|
Immediately |
$ 39.51 |
|
|
|
W11506619 |
 |
8 Nk Ms 00 |
|
|
Immediately |
$ 23.29 |
|
|
|
W11506623 |
|
5 Nk Ms 00 |
|
|
Immediately |
$ 19.80 |
|
|
View Diagram in Separate Window
Print Part List
