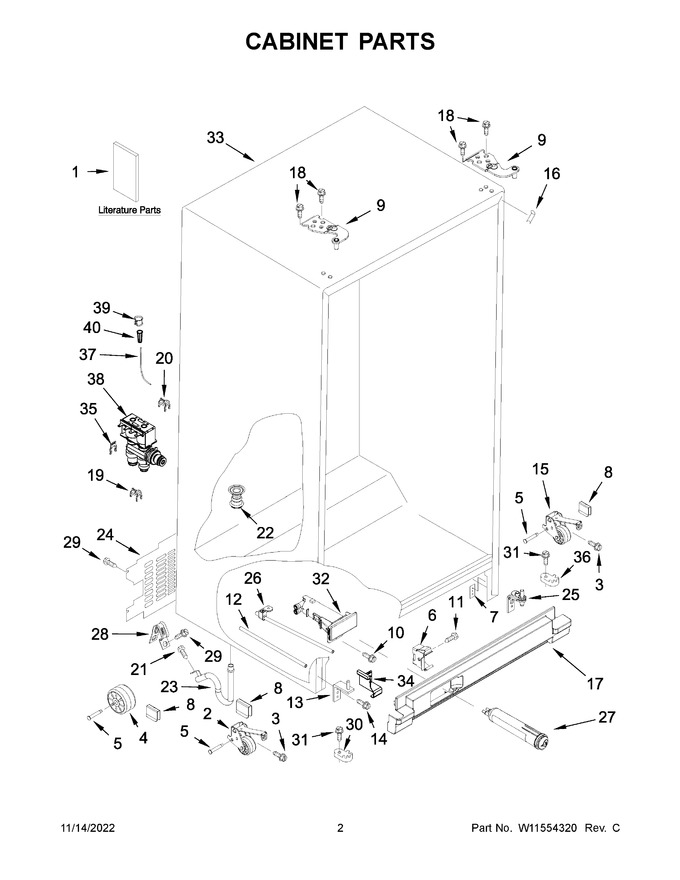

| Diagram # |
Part Number |
|
Description |
Series |
Availability |
Ships |
Price |
Add to Cart | |
| 1 |
W11248697 |
|
Tech Sheet |
|
Appelez-nous
|
- |
|
|
|
| 2 |
WPW10304660 |
 |
Assembly, Roller (left Hand) (Replaces: W10304660) |
|
|
Immediately |
$ 73.90 |
|
|
| 3 |
W11544561 |
|
Screw (Replaces: 2152958) |
|
|
|
$ 14.75 |
|
|
| 4 |
WPW10475495 |
 |
Roller (Replaces: 2150304) |
|
|
Immediately |
$ 32.06 |
|
|
| 5 |
W11594405 |
 |
Axle, Roller (Replaces: W11365774) |
|
|
Immediately |
$ 19.12 |
|
|
| 6 |
WP2155013 |
 |
Clip, Grille (Replaces: 2155013) |
|
|
Immediately |
$ 8.11 |
|
|
| 7 |
W11036715 |
|
Plate, Screw (refrigerator) |
|
Appelez-nous
|
- |
|
|
|
| 8 |
W11594405 |
|
Clip, Roller (Replaces: W11087168) |
|
|
Immediately |
$ 19.12 |
|
|
| 9 |
W11505709 |
|
Hinge, Top (left Hand) (Replaces: W11167022) |
|
|
|
$ 67.52 |
|
|
| 10 |
WP489500 |
|
Screw (Replaces: 489500) |
|
|
|
$ 8.17 |
|
|
| 11 |
WPW10141604 |
|
Screw (Replaces: W10141604) |
|
|
|
$ 8.85 |
|
|
| 12 |
W11162036 |
|
Tube, Filter Outlet (Replaces: W10900447) |
|
|
|
$ 120.45 |
|
|
| 13 |
W11687636 |
|
Assembly, Bottom Hinge (freezer) (Replaces: W11093938) |
|
|
|
$ 72.89 |
|
|
| 14 |
WP489497 |
 |
Screw (Replaces: 3400113) |
|
|
Immediately |
$ 29.09 |
|
|
| 15 |
WPW10304659 |
 |
Assembly, Roller (right Hand) (Replaces: W10304659) |
|
|
Immediately |
$ 73.90 |
|
|
| 16 |
W11219639 |
|
Filler, Wrapper (white) |
|
|
|
$ 11.88 |
|
|
| 17 |
W11282545 |
|
Grille (white) (Replaces: W11226340) |
|
Appelez-nous
|
- |
|
|
|
| 18 |
W11579735 |
|
Screw, Hinge (Replaces: W10290781) |
|
|
Immediately |
$ 14.73 |
|
|
| 19 |
W11091654 |
|
Connector, Double Lock |
|
|
Immediately |
$ 22.21 |
|
|
| 20 |
W11252188 |
|
Double Lock Ring (1/4) |
|
|
|
$ 20.85 |
|
|
| 21 |
WP489464 |
 |
Screw (Replaces: 489464A) |
|
|
Immediately |
$ 8.38 |
|
|
| 22 |
W11566763 |
 |
Fitting, Drain (Replaces: 2304888) |
|
|
Immediately |
$ 53.45 |
|
|
| 23 |
W11512417 |
 |
Extension, Drain Fitting (Replaces: W11404685) |
|
|
|
$ 36.53 |
|
|
| 24 |
W11778265 |
|
Assembly, Cover (Replaces: W11305037) |
|
|
|
$ 96.08 |
|
|
| 25 |
W11399415 |
|
Assembly, Bottom Hinge (refrigerator - Also Includes Door Cam) (Replaces: W11097327) |
|
|
|
$ 73.28 |
|
|
| 26 |
W11162040 |
 |
Tube, Filter Inlet (Replaces: W10900449) |
|
|
|
$ 121.20 |
|
|
| 27 |
EDR1RXD1B |
 |
Filter, Water (Replaces: W10735398) |
|
|
Immediately |
$ 49.99 |
|
|
| 28 |
W11234470 |
|
Clamp, Power Cord (Replaces: W11242280) |
|
|
|
$ 22.12 |
|
|
| 29 |
WPW10141645 |
|
Screw (Replaces: W10141645) |
|
|
|
$ 8.05 |
|
|
| 30 |
W11679635 |
|
Closer, Door (freezer) (Replaces: W11095731) |
|
|
Immediately |
$ 13.73 |
|
|
| 31 |
WP489483 |
 |
Screw (Replaces: W10142234) |
|
|
|
$ 11.41 |
|
|
| 32 |
W11162041 |
 |
Housing, Water Filter (white) (Replaces: W11036340) |
|
|
Immediately |
$ 220.12 |
|
|
| 33 |
NP |
|
Cabinet (not A Servicable Part) |
|
Appelez-nous
|
- |
|
|
|
| 34 |
W10897565 |
|
Assembly, Bracket |
|
|
|
$ 71.89 |
|
|
| 35 |
W11676611 |
|
Locking Ring (1/4) (Replaces: W11175632) |
|
|
|
$ 14.89 |
|
|
| 36 |
W11398787 |
|
Closer, Lower Cam Door (refrigerator) (Replaces: W10905504) |
|
|
|
$ 14.61 |
|
|
| 37 |
W10823511 |
 |
Tube, Water (Replaces: W10357076) |
|
|
Immediately |
$ 32.41 |
|
|
| 38 |
W11645245 |
 |
Assembly, Filter Valve (Replaces: W11446818) |
|
|
Immediately |
$ 60.36 |
|
|
| 39 |
W10861184 |
|
Clamp, Tube (Replaces: W10329003) |
|
|
|
$ 65.90 |
|
|
| 40 |
4387491 |
 |
Insert, Tube (Replaces: 2181939) |
|
|
|
$ 8.23 |
|
|
| 16A |
W11219641 |
|
Filler, Wrapper (black) |
|
|
|
$ 11.88 |
|
|
| 17A |
W11282546 |
|
Grille (black) (Replaces: W11226342) |
|
|
|
$ 123.01 |
|
|
| 1A |
W11484052 |
|
Use & Care Guide |
|
Appelez-nous
|
- |
|
|
|
| 1B |
W11239614 |
|
Energy Guide |
|
Appelez-nous
|
- |
|
|
|
| 32A |
W11172791 |
 |
Housing, Water Filter (black) (Replaces: W11036341) |
|
|
Immediately |
$ 220.12 |
|
|
| 35A |
W11678575 |
|
Locking Ring (5/16) (Replaces: W11175631) |
|
|
|
$ 14.90 |
|
|
| 7A |
W10904380 |
|
Plate, Screw (freezer) |
|
|
|
$ 25.96 |
|
|
| 9A |
W11505710 |
|
Hinge, Top (right Hand) (Replaces: W11167023) |
|
|
|
$ 67.52 |
|
|
