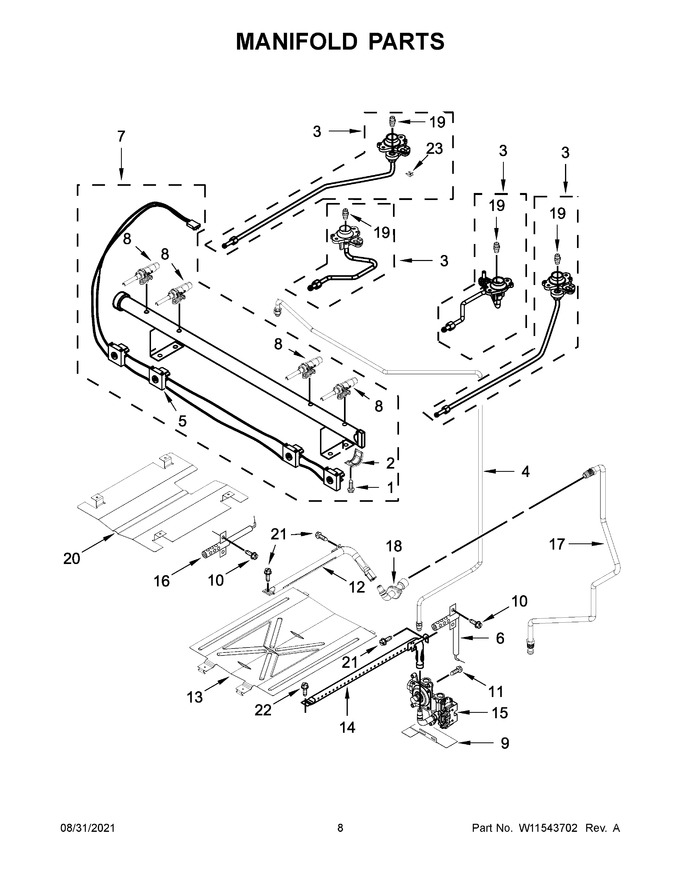

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W10295997 | Screw, Valve |
|
$ 6.59 | |||||
| 2 | W10949105 | Bracket, Saddle Valve (Replaces: W10295996) |
|
$ 20.48 | |||||
| 3 | W11562501 | Orifice Holder Assembly (15k) (left Front) (Replaces: W11459257) |
|
$ 94.05 | |||||
| 4 | W11680399 | Tubing (manifold To Regulator) (Replaces: W10215439) |
|
$ 143.42 | |||||
| 5 | W11256561 | Harness, Switch (Replaces: W10812380) |
|
$ 171.27 | |||||
| 6 | W11524031 | Electrode, Bake (Replaces: W11450459) |
|
Immediately | $ 78.97 | ||||
| 7 | W11347743 | Manifold Assembly |
|
- | |||||
| 8 | W11628784 | Valve, Gas (left Front And Right Front) (Replaces: W11352012) |
|
$ 72.40 | |||||
| 9 | W10224921 | Bracket, Aegis |
|
- | |||||
| 10 | W11684507 | Screw (Replaces: 3196385) |
|
$ 12.84 | |||||
| 11 | WP3400016 | Screw (Replaces: 3400016) |
|
$ 7.55 | |||||
| 12 | WP8054078 | Burner, Broiler (Replaces: 8054078) |
|
Immediately | $ 215.42 | ||||
| 13 | WPW10184491 | Spreader, Flame (oven) (Replaces: W10184491) |
|
$ 228.17 | |||||
| 14 | WP9758078 | Burner, Bake (Replaces: 9758078) |
|
$ 203.46 | |||||
| 15 | W11449506 | Regulator (Replaces: W11370883) |
|
$ 224.75 | |||||
| 16 | WPW10333842 | Electrode, Broil (Replaces: W10333842) |
|
Immediately | $ 93.71 | ||||
| 17 | W10420040 | Tube, Broiler Supply |
|
$ 175.09 | |||||
| 18 | W11435700 | Fitting, Broiler |
|
$ 80.18 | |||||
| 19 | W11700316 | Orifice (15k) (left Front And Right Front) (Replaces: W11485872) |
|
$ 15.06 | |||||
| 20 | W10137062 | Spreader, Flame (broiler) |
|
- | |||||
| 21 | 3196265 | Screw |
|
- | |||||
| 22 | W11233072 | Screw (Replaces: W10362924) |
|
Immediately | $ 13.25 | ||||
| 23 | W11684564 | Spring, Electrode (Replaces: W10827923) |
|
Immediately | $ 11.39 | ||||
| 19A | W11485873 | Orifice (10k) (left Rear) |
|
$ 62.13 | |||||
| 19B | W11712434 | Orifice (5k) (right Rear) (Replaces: W11485871) |
|
$ 15.06 | |||||
| 3A | W11557815 | Orifice Holder Assembly (9.5k) (left Rear) (Replaces: W11459258) |
|
- | |||||
| 3B | W11557816 | Orifice Holder Assembly (15k) (right Front) (Replaces: W11459260) |
|
$ 97.14 | |||||
| 3C | W11557817 | Orifice Holder Assembly (5k) (right Rear) (Replaces: W11459259) |
|
- | |||||
| 8A | W11699929 | Valve, Gas (left Rear) (Replaces: W11352013) |
|
$ 63.42 | |||||
| 8B | W11352015 | Valve, Gas (right Rear) |
|
$ 101.74 | |||||
| NI | NP | Cabinet (not Serviced) |
|
- | |||||
| NI | W10758273 | Orifice, Lp Broil (Replaces: W10465080) |
|
$ 7.68 | |||||
| NI | W11126051 | Lp Bake And Broil Kit (Replaces: W10566537) |
|
$ 116.14 | |||||
| NI | WPW10400495 | Orifice, Lp Bake (Replaces: W10400495) |
|
$ 84.89 | |||||
| NI | W11569688 | Lp Conversion Kit (Replaces: W11489400) |
|
$ 66.45 |
