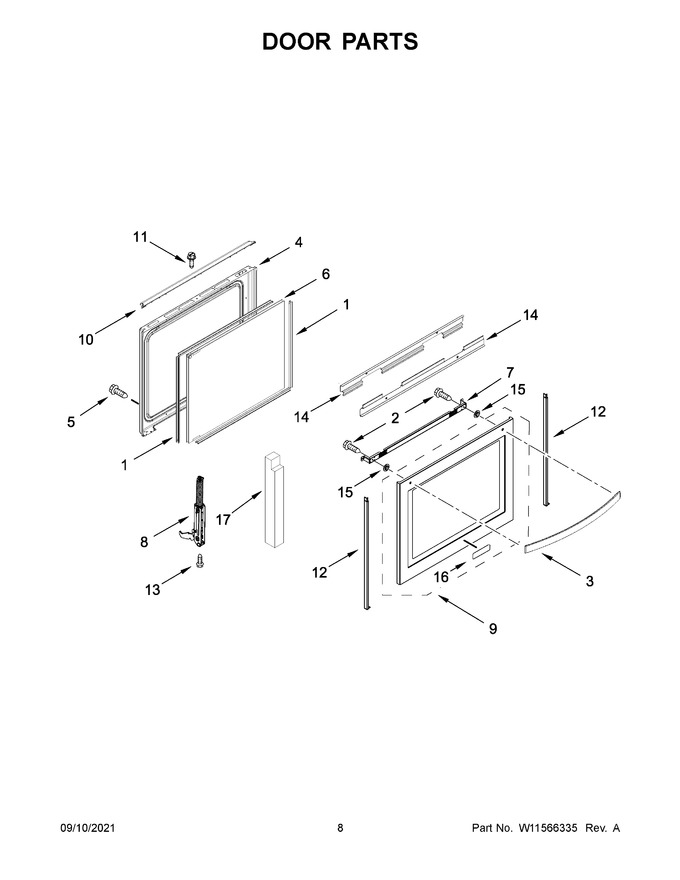

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W11673273		Glass Spacer   (Replaces: W11379948)			Immediately	$ 27.94
2	WP8533988		Screw   (Replaces: W11091878)			Immediately	$ 7.90
3	W11107877		Assembly, Door Handle (stainless)   (Replaces: W10918786)			Immediately	$ 238.28
4	W10902192		Liner, Door   (Replaces: W10826568)				$ 301.54
5	WPW10031790		Screw   (Replaces: W10031790)			Immediately	$ 7.87
6	W11339500		Glass, Inner   (Replaces: W11223202)				$ 154.05
7	W10541911		Bracket, Glass Upper Handle			Immediately	$ 35.93
8	W11162113		Hinge, Door (active)   (Replaces: W10885519)			Immediately	$ 111.53
9	W11106273		Glass Assembly, Outer Door (stainless)   (Replaces: W10864214)				$ 465.96
10	W11182113		Vent, Trim (black)   (Replaces: W10887939)				$ 122.13
11	WP355214		Screw   (Replaces: W10327235)			Immediately	$ 7.92
12	W11744483		Rail, Vertical Support   (Replaces: W10813139)			Immediately	$ 68.57
13	W10777162		Screw   (Replaces: W10031780)			Immediately	$ 7.43
14	W10813140		Rail, Horizontal Support			Immediately	$ 159.49
15	W11676355		Washer, Door   (Replaces: W10319024)			Immediately	$ 13.33
16	W11178521		Badge   (Replaces: W10884775)			Immediately	$ 56.82
17	W11025151		Insulation, Door   (Replaces: W10766562)				$ 198.50
3A	W11110500		Handle, Door (black Stainless)   (Replaces: W10903342)				$ 175.97
9A	W11107401		Glass Assembly, Outer Door (black Stainless)   (Replaces: W10888239)				$ 551.46
