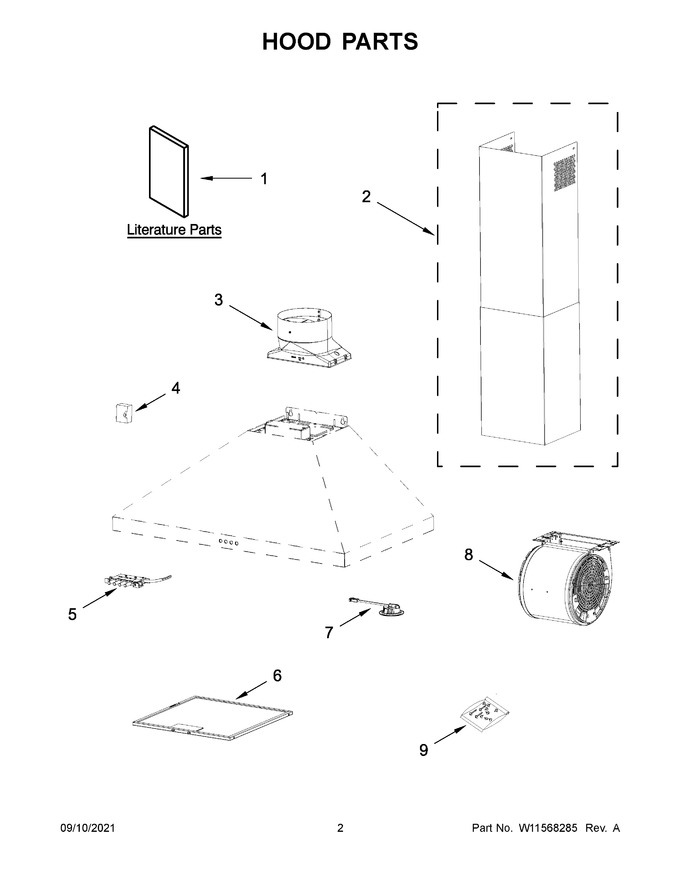

02 - Hood Parts
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W11549255 | Owner's Manual |
|
- | |||||
| 2 | W11417192 | Chimney, Upper And Lower (Replaces: W11354650) |
|
$ 338.23 | |||||
| 3 | W10847841 | Damper, Hood (Replaces: W10592040) |
|
$ 140.43 | |||||
| 4 | W11328673 | Capacitor |
|
Immediately | $ 59.00 | ||||
| 5 | W11568738 | Control, Electronic (Replaces: W11567771) |
|
$ 301.11 | |||||
| 6 | WP8190836 | Filter, Grease (for 30" Model) (Replaces: 8190836) |
|
Immediately | $ 109.23 | ||||
| 7 | W11568737 | Lamp, Led (Replaces: W11567769) |
|
$ 128.53 | |||||
| 8 | W11351717 | Motor, Blower (Replaces: W11351634) |
|
Immediately | $ 359.06 | ||||
| 9 | W11568740 | Hardware, Installation (Replaces: W11567772) |
|
$ 101.34 | |||||
| 6A | W11568741 | Filter, Grease (for 36" Model) (Replaces: W11567954) |
|
$ 120.94 |
