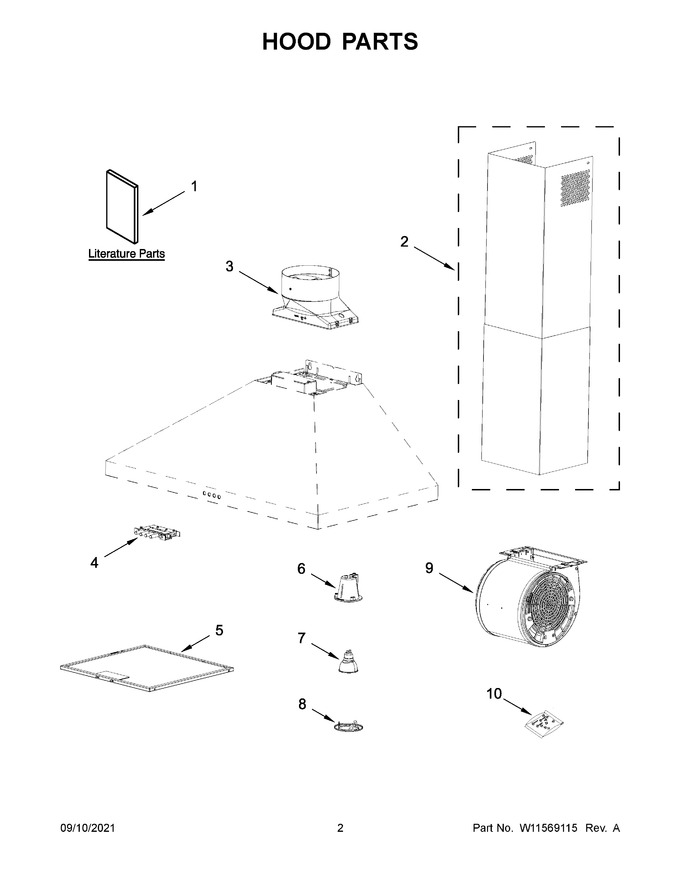

02 - Hood Parts
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W11549254 | Owner's Manual |
|
- | |||||
| 2 | W11417192 | Chimney, Upper And Lower (Replaces: W11354650) |
|
$ 338.23 | |||||
| 3 | W10847841 | Damper, Hood (Replaces: W10592040) |
|
$ 140.43 | |||||
| 4 | W11245985 | Control, Electronic |
|
$ 166.21 | |||||
| 5 | WP8190836 | Filter, Grease (for 30" Model) (Replaces: 8190836) |
|
Immediately | $ 109.23 | ||||
| 6 | W11568819 | Support, Lamp (Replaces: W11568274) |
|
$ 104.77 | |||||
| 7 | W11800238 | Lamp, Led (Replaces: W11388445) |
|
Immediately | $ 78.87 | ||||
| 8 | W10351924 | Bezel, Lamp |
|
$ 177.83 | |||||
| 9 | WPW10350820 | Assembly, Blower Motor (Replaces: W10350820) |
|
$ 466.18 | |||||
| 10 | W11568275 | Hardware, Installation |
|
$ 86.39 | |||||
| 5A | W11568741 | Filter, Grease (for 36" Model) (Replaces: W11567954) |
|
$ 120.94 |
