SELECT A DIAGRAM
01 - Cover Sheet

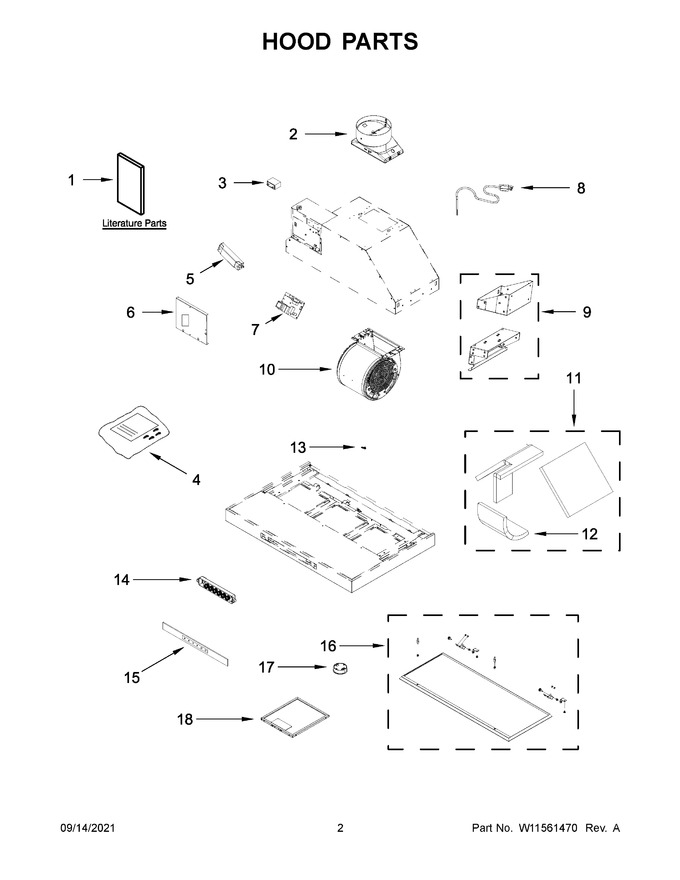

02 - Hood Parts
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W11468698 | Owner's Manual |
|
- | |||||
| 2 | W10847841 | Damper, Hood (Replaces: W10592040) |
|
$ 140.43 | |||||
| 3 | W11328673 | Capacitor |
|
Immediately | $ 59.00 | ||||
| 4 | W11157524 | Hardware, Installation |
|
$ 110.00 | |||||
| 5 | W11157481 | Driver, Led |
|
$ 277.58 | |||||
| 6 | W11157563 | Cover, Junction Box |
|
- | |||||
| 7 | W11282983 | Board, Power (Replaces: W11281877) |
|
Immediately | $ 313.68 | ||||
| 8 | W11157556 | Cord, Power |
|
$ 96.14 | |||||
| 9 | W11157534 | Kit, Upper & Lower Bracket (30" Model Only) |
|
$ 141.47 | |||||
| 10 | WPW10291577 | Assembly, Fan (Replaces: W10291577) |
|
$ 485.51 | |||||
| 11 | W11684786 | Kit, Insulation (Replaces: W11157521) |
|
- | |||||
| 12 | W11688852 | Insulation, Motor (Replaces: W10894814) |
|
$ 71.89 | |||||
| 13 | W11737108 | Sensor, Speed (Replaces: W10716822) |
|
$ 203.18 | |||||
| 14 | W11572075 | Control, Electronic (Replaces: W11569488) |
|
Immediately | $ 326.50 | ||||
| 15 | W11432229 | Glass, Capacitive (Replaces: W11157538) |
|
$ 213.20 | |||||
| 16 | W10735352 | Panel, Perimetric |
|
$ 199.36 | |||||
| 17 | W11794237 | Light, Led (Replaces: W11488580) |
|
Immediately | $ 76.20 | ||||
| 18 | W10915369 | Filter, Grease (Replaces: W10727013) |
|
Immediately | $ 39.73 | ||||
| 9A | W11157564 | Kit, Upper & Lower Bracket (36" Model Only) |
|
$ 151.61 |
