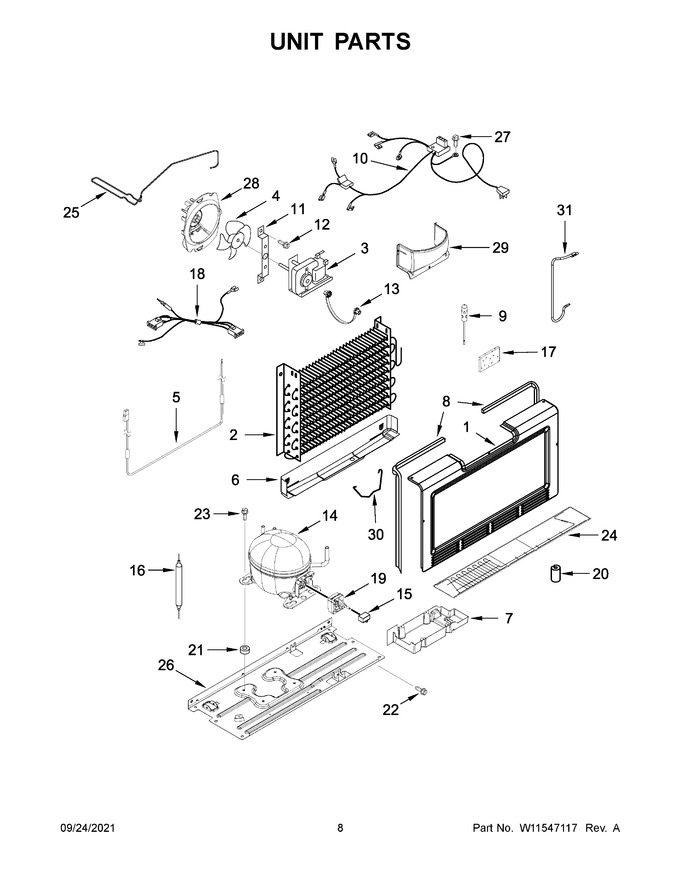

05 - Unit Parts
06 - Optional Parts (not Included)
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W11551256 | Cover, Evaporator (Replaces: W10574307) |
|
$ 112.16 | |||||
| 2 | W11507067 | Evaporator (Replaces: W11209261) |
|
Immediately | $ 188.91 | ||||
| 3 | W11499658 | Motor, Fan (Replaces: W11340536) |
|
Immediately | $ 102.47 | ||||
| 4 | WP2169142 | Blade, Fan (Replaces: 2169142) |
|
Immediately | $ 39.07 | ||||
| 5 | WPW10316428 | Heater, Defrost (Replaces: W10316428) |
|
Immediately | $ 232.12 | ||||
| 6 | WPW10314195 | Shield, Heat (Replaces: W10314195) |
|
$ 91.21 | |||||
| 7 | W10574291 | Pan, Evaporator Drain |
|
$ 107.48 | |||||
| 8 | WPW10574368 | Gasket, Evaporator Cover (Replaces: W10574305) |
|
$ 7.88 | |||||
| 9 | WPW10383615 | Thermistor, Evaporator (Replaces: W10383615) |
|
Immediately | $ 46.12 | ||||
| 10 | W11648060 | Unit Harness (includes Power Cord) (Replaces: W11294537) |
|
$ 93.81 | |||||
| 11 | 13058002 | Clip, Evaporator Motor |
|
$ 12.66 | |||||
| 12 | 380732014 | Screw |
|
- | |||||
| 13 | W11690160 | Grommet, Fan Motor (Replaces: W10150583) |
|
$ 7.48 | |||||
| 14 | W10233960 | Compressor (Replaces: W11189853) |
|
Immediately | $ 485.41 | ||||
| 15 | WPW10350564 | Capacitor (Replaces: W10350564) |
|
Immediately | $ 89.54 | ||||
| 16 | WPW10143759 | Drier (Replaces: W10709968) |
|
Immediately | $ 27.70 | ||||
| 17 | W11553819 | Insulation, Sound Deadening (Replaces: 2169104) |
|
Immediately | $ 13.29 | ||||
| 18 | W11670030 | Harness, Evaporator Fan (Replaces: W11324678) |
|
$ 57.27 | |||||
| 19 | W10873801 | Device, Start (Replaces: W10796752) |
|
Immediately | $ 103.95 | ||||
| 20 | W10852725 | Grommet, Condenser (Replaces: 2319835) |
|
$ 7.28 | |||||
| 21 | W11661108 | Grommet (Replaces: 2183042) |
|
$ 13.69 | |||||
| 22 | 3400524 | Screw (Replaces: W10142287) |
|
$ 11.95 | |||||
| 23 | W11661574 | Screw (Replaces: 489473) |
|
$ 12.86 | |||||
| 24 | NP | Cabinet (not A Serviceable Part) |
|
- | |||||
| 25 | W10574478 | Tube, Discharge |
|
$ 111.59 | |||||
| 26 | W10574278 | Pan, Compressor |
|
$ 126.69 | |||||
| 27 | 180257102 | Screw |
|
- | |||||
| 28 | W10574469 | Shroud, Evaporator Fan |
|
$ 34.07 | |||||
| 29 | W10574274 | Cover, Evaporator Fan |
|
$ 100.81 | |||||
| 30 | W11575357 | Strap, Bale (Replaces: W11508073) |
|
- | |||||
| 31 | W10861955 | Tube, Suction |
|
Immediately | $ 72.06 | ||||
| NI | NP | Cabinet (not A Serviceable Part) |
|
- |
