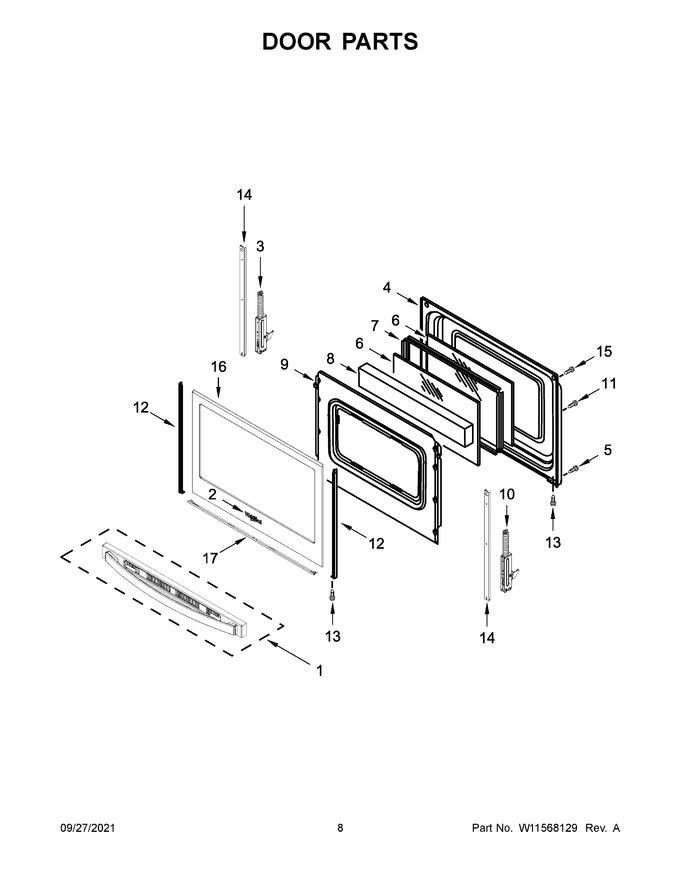

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W11449263		Handle And Vent Assembly (stainless)   (Replaces: W11242950)			Immediately	$ 218.72
2	W11178521		Badge   (Replaces: W10884775)			Immediately	$ 56.82
3	WPW10440013		Hinge, Door (active)   (Replaces: W10440013)			Immediately	$ 57.42
4	WP9761344		Liner, Door   (Replaces: 9761344)			Immediately	$ 335.60
5	W10777162		Screw   (Replaces: W10031780)			Immediately	$ 7.43
6	WP8053948		Glass, Inner   (Replaces: 9758162)			Immediately	$ 208.85
7	WPW10316950		Frame, Glass   (Replaces: W10316950)			Immediately	$ 81.08
8	WPW10278991		Insulation, Door Strip   (Replaces: W10278991)			Immediately	$ 91.23
9	W11539580		Retainer, Insulation   (Replaces: 9761357)				$ 209.98
10	WPW10440013		Hinge, Door (active)   (Replaces: W10388635)			Immediately	$ 57.42
11	WPW10031790		Screw   (Replaces: W10031790)			Immediately	$ 7.87
12	W10761018		Trim, Door Side (black (left))   (Replaces: W10746436)			Immediately	$ 49.32
13	WP355214		Screw   (Replaces: W10327235)			Immediately	$ 7.92
14	W11502236		Strap, Door   (Replaces: W11379944)			Immediately	$ 24.91
15	WPW10200660		Screw   (Replaces: W10200660)			Immediately	$ 7.42
16	W11702167		Glass, Outer Door (black)   (Replaces: W10884159)			Immediately	$ 166.26
17	WP8523177		Trim, Lower Door (black)   (Replaces: 8523177)				$ 149.27
12A	W10761014		Trim, Door Side (black (right))   (Replaces: W10746435)			Immediately	$ 65.66
1A	W11678969		Handle And Vent Assembly (black Stainless)   (Replaces: W11242951)				$ 167.90
