View Diagram in Separate Window
Print Part List
SELECT A DIAGRAM
01 - Cover Sheet
02 - Cooktop Parts
03 - Control Panel Parts
04 - Chassis Parts

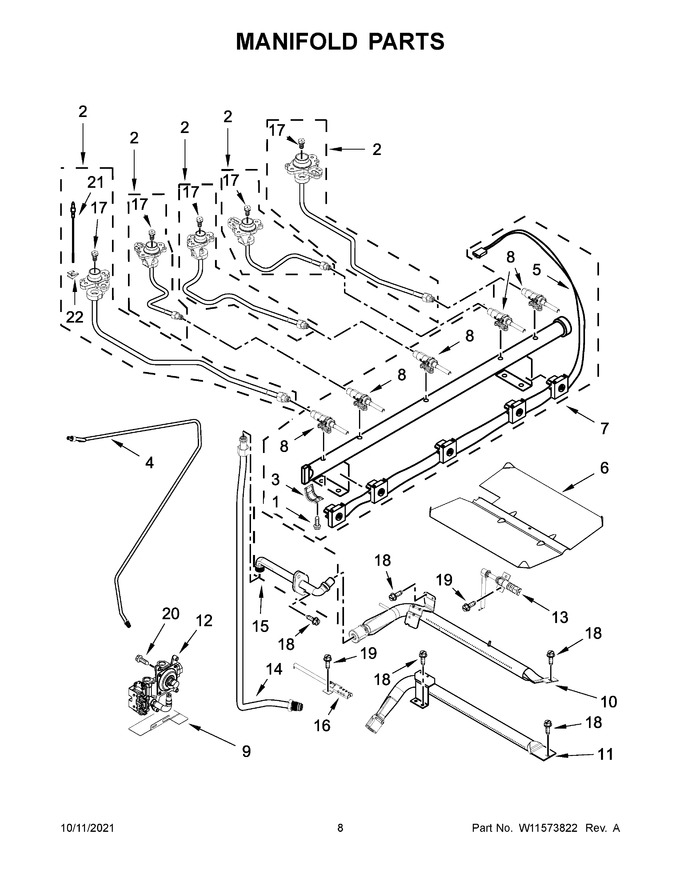

05 - Manifold Parts
06 - Door Parts
07 - Drawer Parts
08 - Optional Parts (not Included)
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W10295997 | Screw, Valve |
|
$ 6.59 | |||||
| 2 | W11557814 | Orifice Holder Assembly (18k) (left Front) (Replaces: W11459263) |
|
- | |||||
| 3 | W10949105 | Bracket, Saddle Valve (Replaces: W10295996) |
|
$ 20.48 | |||||
| 4 | W10510125 | Tubing, Main Supply |
|
$ 196.79 | |||||
| 5 | W11772399 | Harness, Switch Spark (Replaces: W10811693) |
|
$ 77.70 | |||||
| 6 | 3601P33645 | Baffle, Broil Burner |
|
- | |||||
| 7 | W11347746 | Manifold Assembly |
|
- | |||||
| 8 | W11241561 | Valve, Gas (right Front) (Replaces: W10566062) |
|
Immediately | $ 175.63 | ||||
| 9 | W10224921 | Bracket, Aegis |
|
- | |||||
| 10 | W11676566 | Burner, Broiler (Replaces: W10439242) |
|
$ 85.48 | |||||
| 11 | W10764654 | Burner, Bake (Replaces: W10680035) |
|
Immediately | $ 82.49 | ||||
| 12 | W10919226 | Valve, Gas (Replaces: W10720102) |
|
Immediately | $ 195.35 | ||||
| 13 | WPW10324262 | Igniter, Bake (Replaces: W10324262) |
|
Immediately | $ 98.85 | ||||
| 14 | W10306050 | Tube, Broil Supply (broiler Fitting To Valve) |
|
$ 170.84 | |||||
| 15 | W10776437 | Fitting, Broil |
|
$ 93.11 | |||||
| 16 | WPW10333842 | Electrode, Broil (Replaces: W10333842) |
|
Immediately | $ 93.71 | ||||
| 17 | W11485988 | Orifice (18k) (left Front) |
|
$ 62.09 | |||||
| 18 | W11233072 | Screw (Replaces: W10362924) |
|
Immediately | $ 13.25 | ||||
| 19 | W11684507 | Screw (Replaces: 3196385) |
|
$ 12.84 | |||||
| 20 | WP3400016 | Screw (Replaces: 3400016) |
|
$ 7.55 | |||||
| 21 | W11453940 | Electrode (left Rear) (Replaces: W11428831) |
|
$ 58.01 | |||||
| 22 | W11684564 | Spring, Electrode (Replaces: W10827923) |
|
Immediately | $ 11.39 | ||||
| 17A | W11485873 | Orifice (9.5k) (left Rear) |
|
$ 62.13 | |||||
| 17B | W11428753 | Orifice (15k) (right Front) |
|
Immediately | $ 74.94 | ||||
| 17C | W11712434 | Orifice (5k) (right Rear) (Replaces: W11485871) |
|
$ 15.06 | |||||
| 17D | W11485874 | Orifice (8k) (center) |
|
$ 62.13 | |||||
| 21A | W11453920 | Electrode (left Front, Right Front, Right Rear) (center) (Replaces: W11428858) |
|
$ 57.92 | |||||
| 2A | W11557815 | Orifice Holder Assembly (9.5k) (left Rear) (Replaces: W11459258) |
|
- | |||||
| 2B | W11557816 | Orifice Holder Assembly (15k) (right Front) (Replaces: W11459260) |
|
$ 97.14 | |||||
| 2C | W11557817 | Orifice Holder Assembly (5k) (right Rear) (Replaces: W11459259) |
|
- | |||||
| 2D | W11557818 | Orifice Holder Assembly (8k) (center) (Replaces: W11459261) |
|
$ 97.38 | |||||
| 8A | W11233561 | Valve, Gas (right Rear & Center) (Replaces: W10566057) |
|
Immediately | $ 238.25 | ||||
| 8B | W11331153 | Valve, Gas (right Rear) |
|
$ 106.18 | |||||
| NI | NP | Cabinet (not Serviced) |
|
- | |||||
| NI | W11216991 | Orifice, Lp Broil (Replaces: W10465078) |
|
Immediately | $ 83.75 | ||||
| NI | W11560165 | Lp 5 Orifice Conversion Kit (Replaces: W11489399) |
|
$ 31.53 | |||||
| NI | W11087486 | Lp Conversion Kit (bake/broil) (Replaces: W10566535) |
|
Immediately | $ 106.16 |
