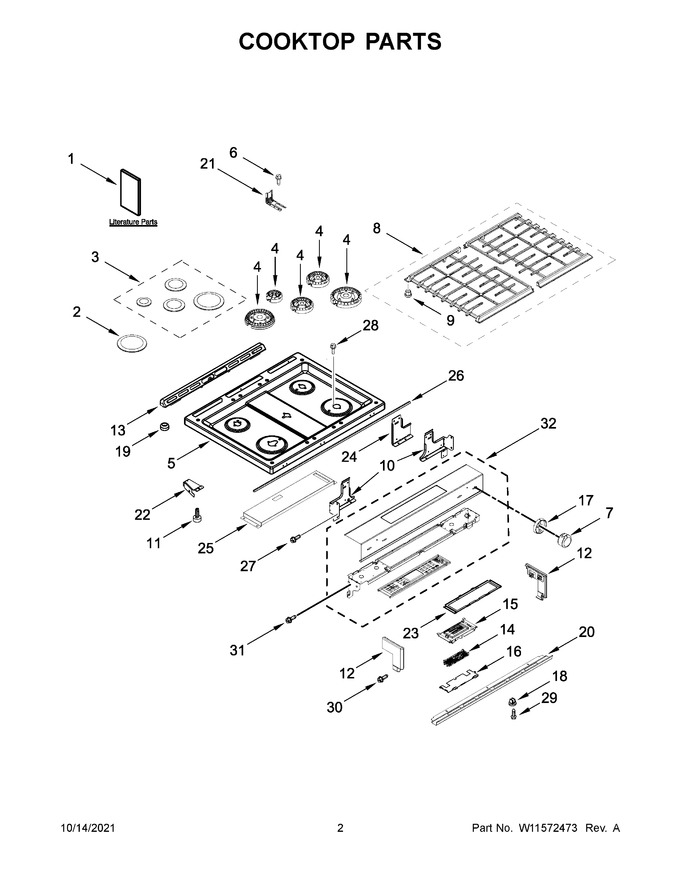

02 - Cooktop Parts


03 - Chassis Parts


04 - Manifold Parts


05 - Door Parts


06 - Drawer Parts


07 - Optional Parts (not Included)


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W11426594		Owners Manual		Appelez-nous	-
2	W11576413		Cap, Stack Burner (black (left Front))   (Replaces: W11346163)				$ 80.33
3	W11436988		Burner Cap Kit (black (left Rear, Center, Right Front, Right Rear))   (Replaces: W11352136)				$ 95.90
4	W11436986		Flame Spreader, Stack (left Front)   (Replaces: W11348511)			Immediately	$ 124.90
5	W11441000		Cooktop (black)   (Replaces: W11341028)				$ 390.03
6	7101P48560		Screw, Anti-tip Kit		Appelez-nous	-
7	W10872668		Knob (stainless (all Except Left Front))   (Replaces: W10786065)			Immediately	$ 118.35
8	W11026378		Grate Kit (black)   (Replaces: W10432520)				$ 338.27
9	W10919249		Grate, Bumper   (Replaces: W10465081)			Immediately	$ 11.86
10	W10289170		Support, Cooktop (left)				$ 27.05
11	8016P02260		Glide, Main Top		Appelez-nous	-
12	W10913412		Endcap (black (left))				$ 140.63
13	W11256338		Trim, Vent (black)   (Replaces: W10577781)				$ 185.00
14	W11034208		Control, Mrc2   (Replaces: W10759285)			Immediately	$ 352.31
15	W11105615		Assembly, Display   (Replaces: W10759325)			Immediately	$ 474.88
16	W10558372		Bracket, Control				$ 22.59
17	W10814133		Bezel (stainless (kit Of 5))   (Replaces: W10785119)			Immediately	$ 102.04
18	W11025100		Grommet   (Replaces: W10645947)			Immediately	$ 11.84
19	W11690600		Bumper   (Replaces: W10854253)			Immediately	$ 13.42
20	W10860957		Console, Lower Panel (black)				$ 239.14
21	W11502257		Bracket, Anti-tip   (Replaces: W11379947)			Immediately	$ 20.73
22	W10162253		Brace, Corner (left)				$ 66.72
23	W10555923		Bracket, User Interface				$ 96.69
24	W10598048		Bracket, Console (center)				$ 23.16
25	W11355689		Keypad Shield				$ 20.38
26	W10802441		Gasket, Console/ Cooktop   (Replaces: W10612719)			Immediately	$ 20.46
27	WPW10067840		Screw   (Replaces: W10067840)				$ 7.47
28	W11241230		Screw   (Replaces: W10673618)			Immediately	$ 13.26
29	W10516115		Screw				$ 13.07
30	W11245710		Screw   (Replaces: 9780274)			Immediately	$ 13.28
31	WP3196557		Screw   (Replaces: 3196169)			Immediately	$ 7.16
32	W11091882		Console (black Stainless)   (Replaces: W10861022)			Immediately	$ 679.75
10A	W10289169		Support, Cooktop (right)				$ 27.05
12A	W10913413		Endcap (black (right))				$ 140.63
1A	W11326872		Tech Sheet		Appelez-nous	-
1B	W11427468		Quick Start Guide		Appelez-nous	-
22A	W10162252		Brace, Corner (right)				$ 70.73
4A	W11531098		Flame Spreader (left Rear)   (Replaces: W11352197)				$ 72.65
4B	W11531096		Flame Spreader (right Front)   (Replaces: W11352193)				$ 73.73
4C	W11531097		Flame Spreader (right Rear & Center)   (Replaces: W11352195)				$ 73.04
7A	W10872674		Knob (stainless (left Front))   (Replaces: W10786064)			Immediately	$ 60.34
NI	WPW10182767		Tie, Manifold Wire   (Replaces: W10182767)				$ 6.57
NI	16515		Clip, Harness   (Replaces: 313438)				$ 18.48
NI	3400964		Clip, Wire   (Replaces: 3196520)				$ 80.10
NI	WP3196174		Screw   (Replaces: 3196174)			Immediately	$ 7.60
NI	W11454287		Main Harness				$ 190.12
NI	NP		Cabinet (not Serviced)		Appelez-nous	-
NI	W11025616		Harness, Keypad   (Replaces: W10575120)			Immediately	$ 67.76
NI	7111P01760		Clamp, Wire		Appelez-nous	-
NI	W11176109		Harness, Display   (Replaces: W10598169)			Immediately	$ 202.46
NI	W10580229		Wire, Ground				$ 34.40
NI	W11087486		Lp Conversion Kit (bake/broil)   (Replaces: W10566535)			Immediately	$ 106.16
NI	W11198972		Harness, Bake/broil   (Replaces: W10754419)				$ 32.26
NI	W11436985		Lp Conversion Kit   (Replaces: W11397194)			Immediately	$ 41.90
